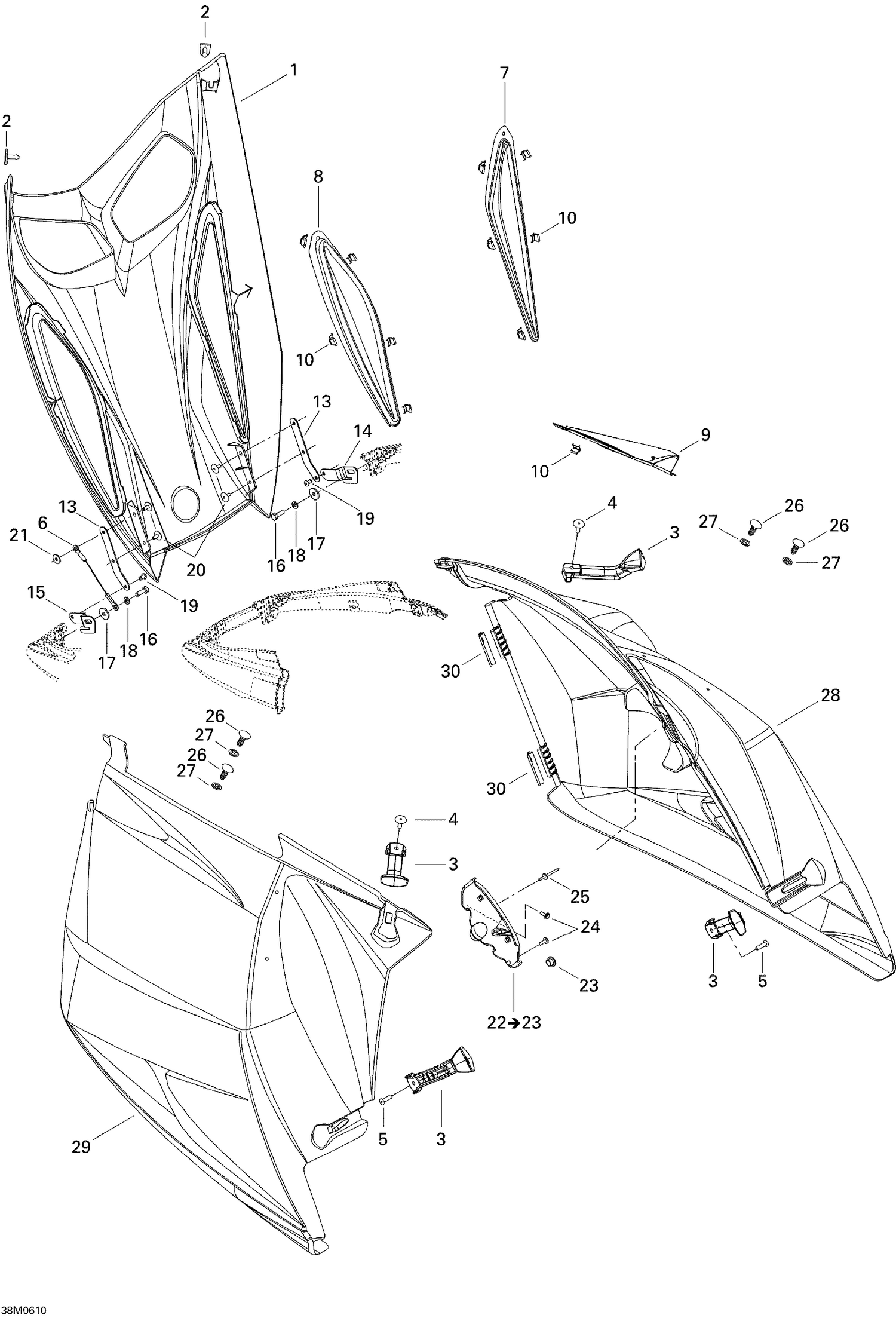

09- Hood
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302788 | Hood, Black |
| 2 | 517302543 | ROD_RETAINING - Call your local BRP dealership |
| 3 | 517302448 | Panel Latch |
| 4 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 5 | 390410100 | Pop Rivet 3/16” |
| 6 | 517302673 | RETAINER CABLE - Call your local BRP dealership |
| 7 | 517302936 | RH HOOD GRILL - Call your local BRP dealership |
| 8 | 517302937 | LH HOOD GRILL - Call your local BRP dealership |
| 9 | 517302938 | RH PANEL GRILL - Call your local BRP dealership |
| 10 | 517302789 | CLIP - Call your local BRP dealership |
| 11 | XXX | Not Available As Spare Parts |
| 12 | XXX | Not Available As Spare Parts |
| 13 | 517302544 | UPPER HALF-HINGE - Call your local BRP dealership |
| 14 | 517303668 | RH HINGE ASS'Y - Call your local BRP dealership This part replaces 517302444. |
| 15 | 517302445 | LH Lower Half-Hinge |
| 16 | 207161844 | Hex. Screw M6 X 18 |
| 17 | 224061121 | Flat Washer |
| 18 | 234161471 | Lock Washer M6, Black |
| 19 | 390909200 | Avex Rivet |
| 20 | 390406500 | Pop Rivet 3/16" |
| 21 | 517225900 | Flat Washer |
| 23 | 275500241 | Black, Cap |
| 24 | 293150103 | Pop Rivet 3/16" |
| 25 | 293150102 | Rivet 3/16" |
| 26 | 517303070 | Windshield Dart |
| 27 | 250100034 | Push Nut |
| 28 | 517303182 | Panneau DR, Jaune, B-190 |
| 29 | 517302805 | LH PANEL, YELLOW B-190 - Call your local BRP dealership |
