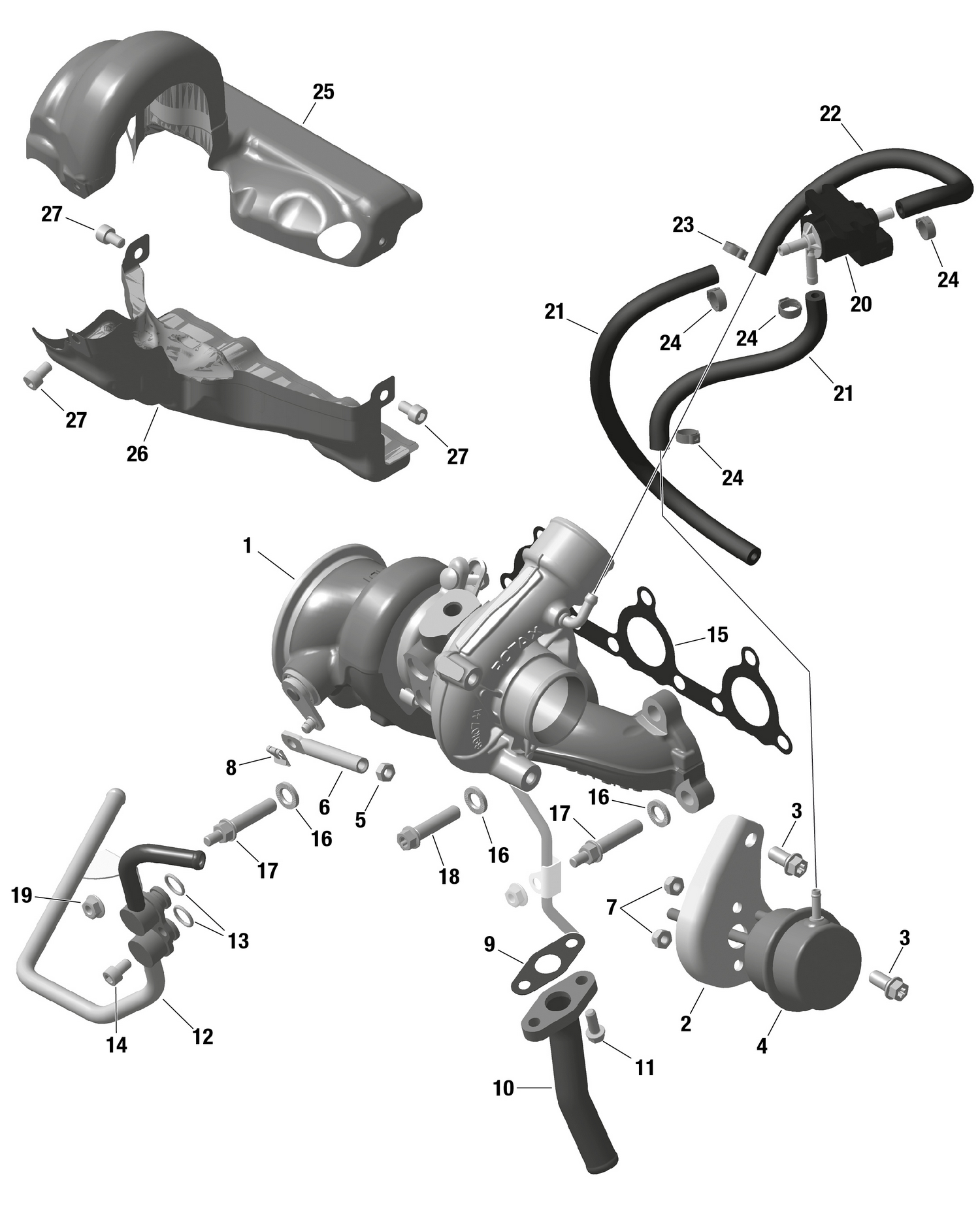

01- ROTAX - Turbocharger
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 8 | 420845000 | Circlip |
| 10 | 420456455 | Oil Return Line |
| 11 | 420440164 | Torx Flange Screw M6 X 16 |
| 12 | 420822842 | Water Cooling Tube This part replaces 420822841. |
| 14 | 420241081 | Allen Screw M6 X 10 |
| 16 | 420827521 | Washer |
| 17 | 420440693 | Collar Screw M8 X 35 |
| 18 | 420641188 | Torx Flange Screw M8 X 35 This part replaces 420440867. |
| 19 | 420842890 | Hex Nut M6-10 |
| 20 | 420664636 | Solenoid Valve |
| 21 | 420260283 | Hose 640mm This part replaces 420260286. |
| 22 | 420260283 | Hose 640mm This part replaces 420260287. |
| 23 | 420851463 | Gear Clamp |
| 24 | 420853133 | Clamp 9.2-10.9 mm |
| 25 | 420975120 | Upper Heat Shield |
| 26 | 420975125 | Lower Heat Shield |
