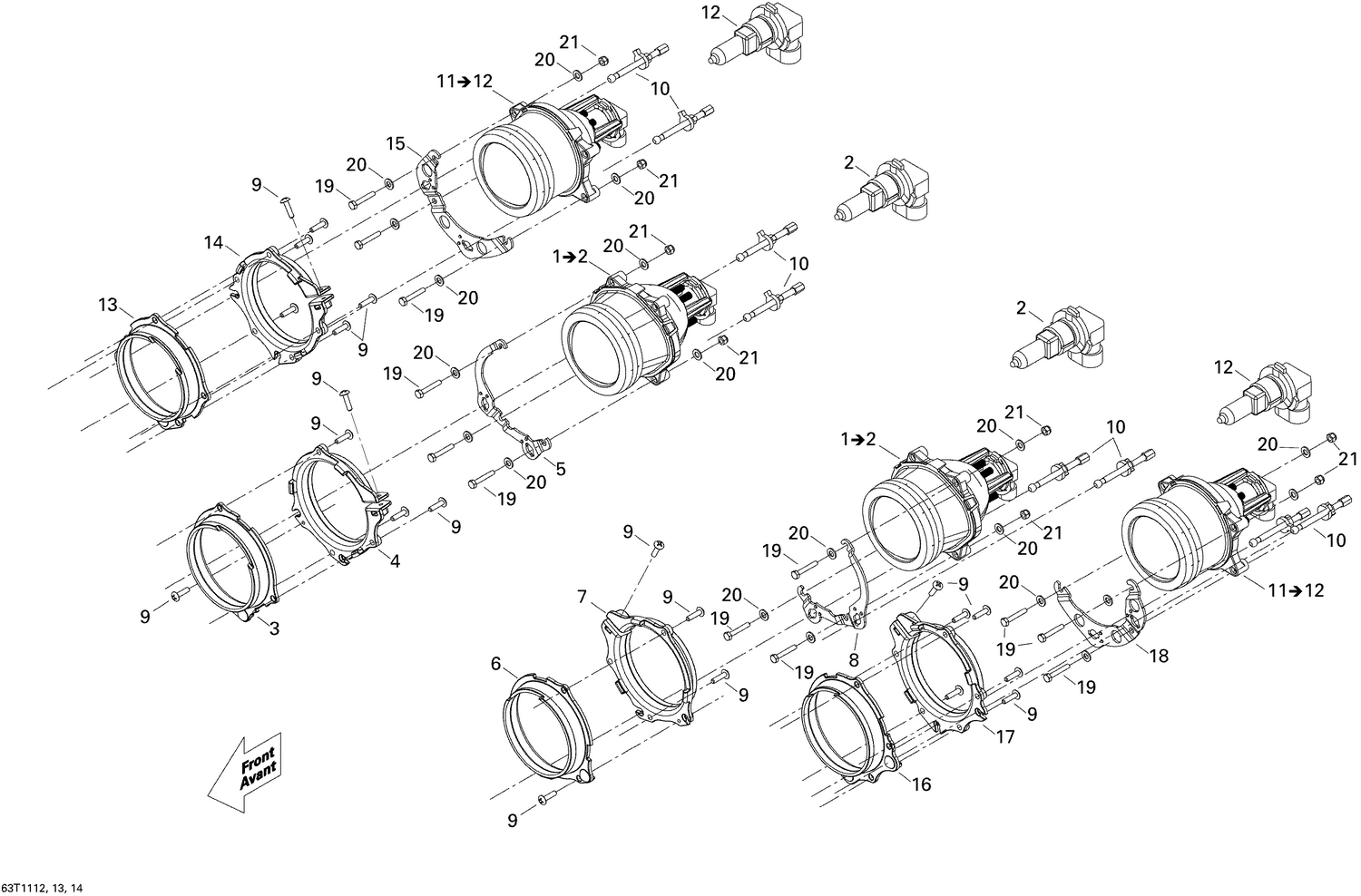

10- Headlights
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 415129249 | Halogen Bulb |
| 3 | 710001081 | RH Low Front Housing |
| 4 | 710001082 | RH Low Rear Housing |
| 5 | 710001094 | RH Low Light Support |
| 6 | 710001083 | LH Low Front Housing |
| 7 | 710001084 | LH Low Rear Housing |
| 8 | 710001037 | LH Low Light Support |
| 9 | 250000723 | Phillips Screw K40 X 16 This part replaces 250000084. |
| 10 | 710001147 | Setting Screw |
| 12 | 415129249 | Halogen Bulb |
| 13 | 710001085 | RH High Front Housing |
| 14 | 710001086 | RH High Rear Housing |
| 15 | 710001115 | RH High Light Support |
| 16 | 710001087 | LH High Front Housing |
| 17 | 710001088 | LH High Rear Housing |
| 18 | 710001036 | LH High Light Support |
| 19 | 207142544 | Hex. Screw M4 X 25 |
| 20 | 234051410 | Flat Washer M5 |
