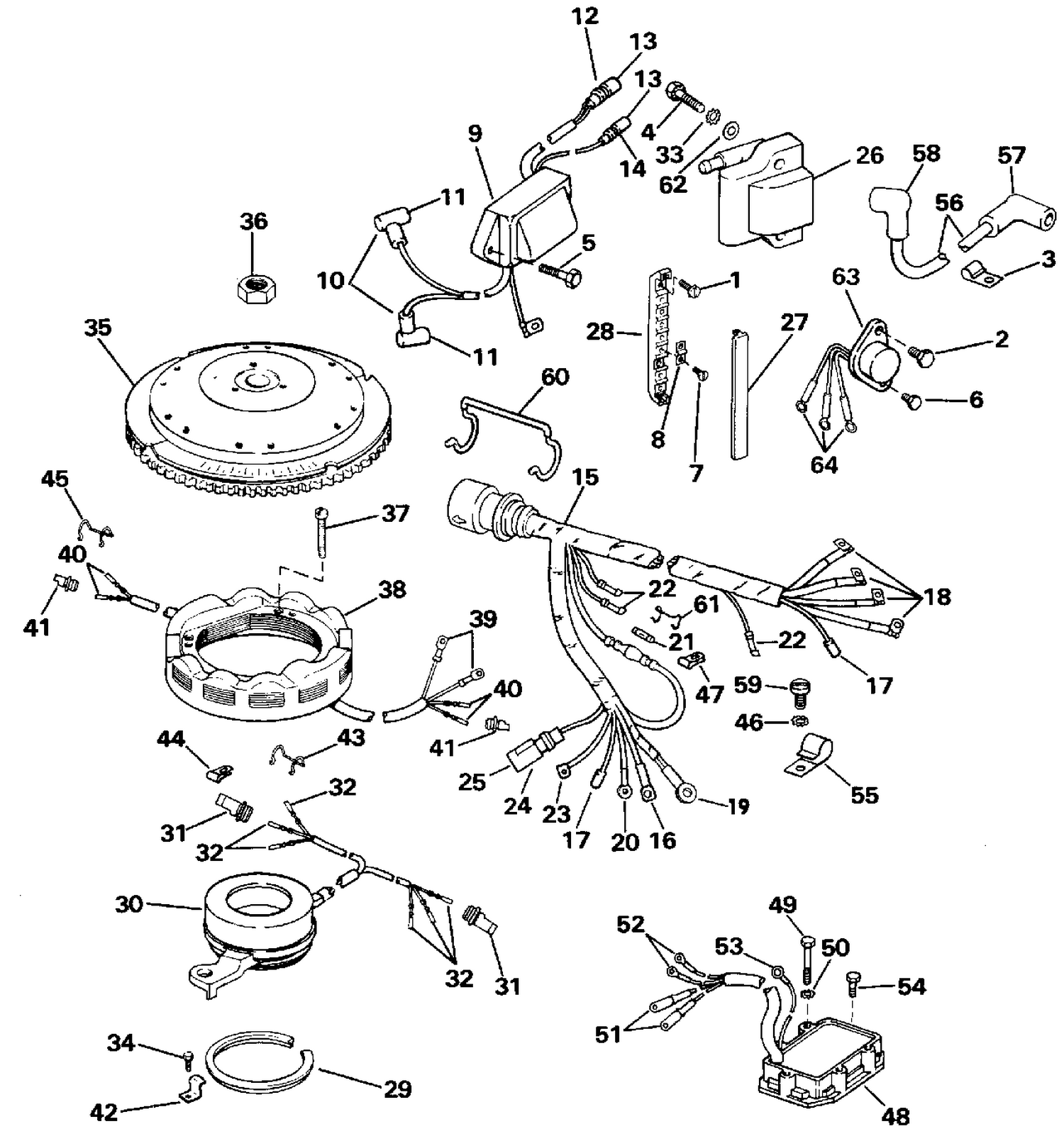

| Ref | Part Number | Description |
|---|
| 1 |
0306644 |
VIS, capteur de papillon |
| 2 |
0328731 |
VIS, câble de verrouillage |
| 3 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 5 |
0328726 |
SCREW (Use existing coil screw) |
| 6 |
0314576 |
SCREW This part replaces 0328720. |
| 7 |
0329182 |
VIS, borne |
| 8 |
0315004 |
FIL DE LIAISON, bornier |
| 9 |
0582811 |
POWER PACK ASSY. |
| 9 |
0583110 |
POWER PACK ASSY. |
| 12 |
0511449 |
COMMECTOR, Coil to power pack |
| 14 |
0511616 |
CLAMP, Cable |
| 15 |
0583036 |
MOTOR CABLE ASSY. |
| 26 |
0582508 |
COIL ASSY |
| 27 |
0395357 |
COVER ASSY |
| 27 |
0396841 |
COVER, Terminal block |
| 28 |
0329895 |
BORNIER |
| 29 |
0313666 |
RET., Distributor base 1 |
| 30 |
0582041 |
TIMER BASE & SENSOR ASSY |
| 30 |
0583127 |
TIMER BASE & SENSOR ASSY |
| 35 |
0582628 |
FLYWHEEL ASSY. |
| 36 |
0329267 |
NUT, Flywheel This part replaces 0314209. |
| 38 |
0582016 |
STATOR ASSY., 6 amp |
| 38 |
0582867 |
STATOR ASSY., 10 amp |
| 38 |
0583023 |
STATOR ASSY., 6 amp |
| 38 |
0583104 |
STATOR ASSY., 3/9 amp. |
| 41 |
0511989 |
CONNECTOR |
| 42 |
0326439 |
CLAMP, Leads |
| 43 |
0512743 |
DISPOSITIF DE RETENUE |
| 44 |
0330157 |
CLAMP |
| 45 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 47 |
0330157 |
CLAMP |
| 48 |
0395204 |
RECTIFIER & REGULATOR This part replaces 0395391. |
| 49 |
0321375 |
SCREW |
| 54 |
0306049 |
SCREW |
| 55 |
0330151 |
CLAMP, Harness to oil tank boss |
| 56 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
