| Ref | Part Number | Description |
|---|
| 1 |
0332439 |
SWIVEL BRACKET |
| 1 |
0434037 |
TILT ASSIST CYLINDER |
| 1 |
0434709 |
INTAKE ASSY. |
| 1 |
5008621 |
FUEL TANK This part replaces 0177001. |
| 2 |
0336940 |
LINER |
| 2 |
0437144 |

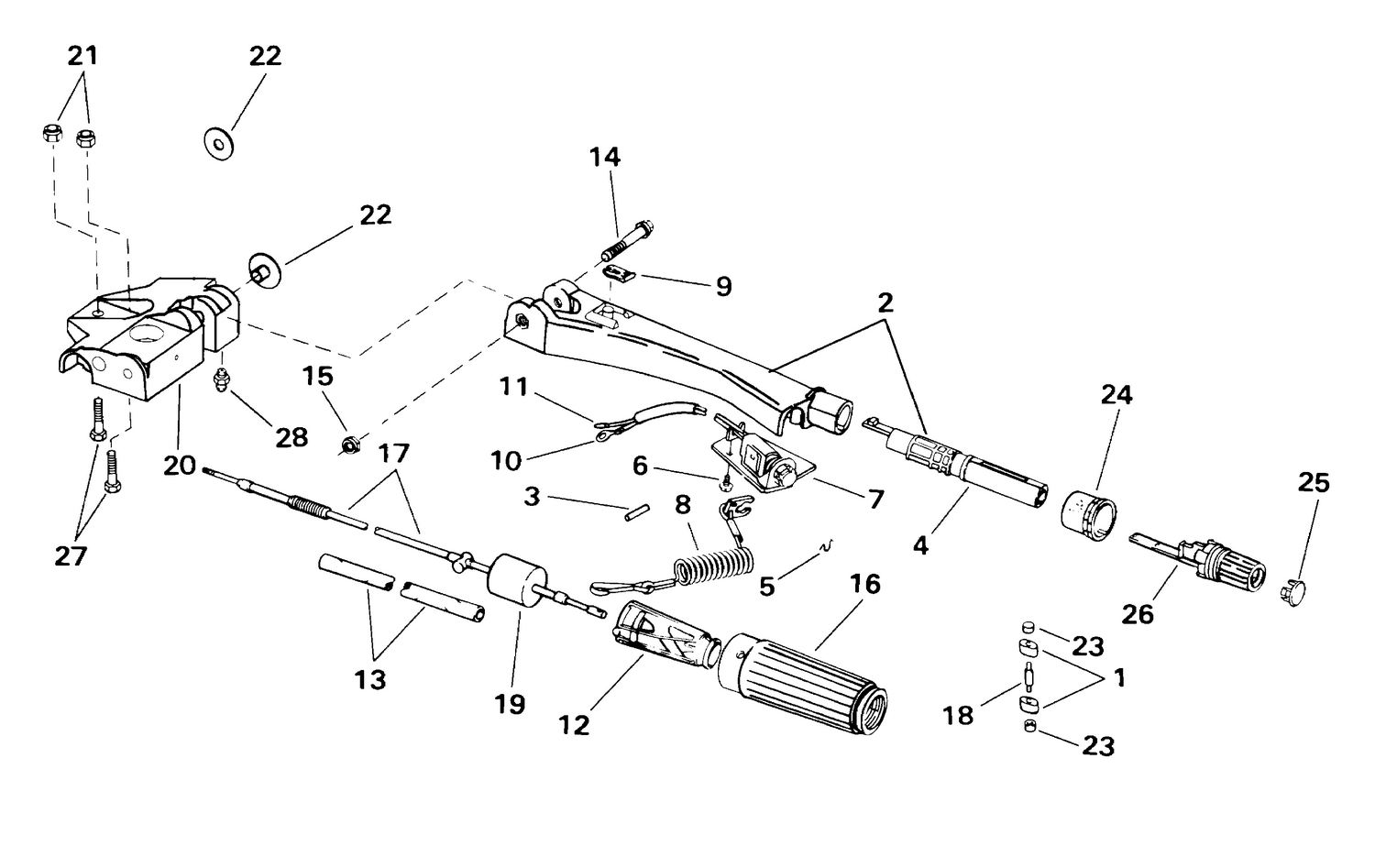

HANDLE ASSEMBLY, Tiller steering |
| 3 |
0329291 |
BAGUE |
| 3 |
0336870 |
BOLT, Intake to housing |
| 4 |
.HOSE, |
Short, 19½ in. (495mm) |
| 4 |
0332407 |
SEAL |
| 4 |
0336869 |
WASHER, Bolt, bearing housing |
| 5 |
0332452 |
SEAL, Upper |
| 5 |
0336870 |
BOLT, Intake to housing |
| 6 |
0341549 |
SHIELD, Tilt tube |
| 6 |
0436141 |
DRIVESHAFT & SLEEVE ASSY. |
| 7 |
0328260 |
E-RING |
| 7 |
0336882 |
THRUST RING |
| 7 |
0585133 |
INTERRUPTEUR D'ARRÊT |
| 8 |
0133022 |
SCREW |
| 8 |
0336941 |
SLEEVE |
| 9 |
0334162 |
WASHER |
| 9 |
0336927 |
KEY |
| 10 |
.HOSE, |
Long, 72 in. (1830mm) |
| 10 |
0336945 |
SHIM |
| 11 |
0318238 |
SCREW |
| 11 |
0336925 |
KEEPER, Nut |
| 12 |
0336943 |
NUT, Driveshaft |
| 12 |
0357240 |
TIE BAR, Stern bracket This part replaces 0334247. |
| 13 |
0317419 |
SCREW |
| 13 |
0336926 |
PIN, Gate |
| 14 |
0336871 |
BOLT, Bearing housing |
| 14 |
0351896 |
TILT TUBE This part replaces 0321511. |
| 15 |
0317782 |
THRUST WASHER |
| 15 |
0336916 |
BUSHING, Pin |
| 16 |
0336871 |
BOLT, Bearing housing |
| 17 |
0332447 |
PIN,TILT |
| 17 |
0336999 |
ECCENTRIC, Cam |
| 18 |
0334259 |
CLIP |
| 18 |
0337001 |
BUSHING, Cam |
| 19 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 19 |
0337003 |
SHIM, Cam |
| 20 |
0333765 |
SPRING |
| 20 |
0337002 |
WASHER |
| 20 |
0355221 |
STEERING ARM BRACKET, Tiller This part replaces 0340779. |
| 21 |
0342603 |
BRACKET, Cable |
| 21 |
0398875 |
LEVER & SHAFT |
| 22 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 22 |
0336868 |
WASHER, Nut |
| 23 |
0333621 |
STERN BRACKET, Port |
| 24 |
0342619 |
CABLE CLAMP |
| 25 |
0342621 |
SCREW |
| 26 |
0342622 |
LOCKNUT |
| 27 |
0336869 |
WASHER, Bolt, bearing housing |
| 28 |
0336930 |
BOLT |
| 28 |
0431962 |
LEVER Assy, Tilt assist |
| 29 |
0336877 |
O-RING, Bearing housing |
| 29 |
0433584 |
ARM & SHAFT Assy |
| 30 |
0334438 |
KNOB |
| 30 |
0336915 |
RETAINING RING |
| 31 |
0333821 |
WASHER |
| 31 |
0336936 |
O-RING, Bearing housing |
| 32 |
0319787 |
BUSHING |
| 32 |
0336939 |
RING, SEAL |
| 33 |
0332435 |
PIN |
| 33 |
0336876 |
SPIROLOX |
| 34 |
0336878 |
SEAL, Inner |
| 35 |
0334883 |
GROMMET |
| 35 |
0336879 |
SEAL, Outer |
| 36 |
0306014 |
VIS, ancrage |
| 36 |
0434704 |
IMPELLER ASSY,. |
| 37 |
0336932 |
SCREW, Exh. hsg |
| 37 |
0432293 |
LEVER Assembly, Trail lock |
| 38 |
0336929 |
WASHER, Screw, exh. hsg. |
| 39 |
0336931 |
SCREW, Exh. hsg |
| 39 |
0436202 |
CABLE, Tilt assist |
| 40 |
0336872 |
GREASE FITTING |
| 41 |
0434698 |
HOSE ASSY., Lube |
| 42 |
0336861 |
SCREW, Flush |
| 43 |
0336863 |
WASHER, Screw |
| 44 |
0336933 |
SCREW, Exh. hsg., long |
| 45 |
0337009 |
PIVOT, Cable to cam |
| 46 |
0336869 |
WASHER, Bolt, bearing housing |
| 46 |
0352105 |
CLAMP, Cable This part replaces 0327264. |
| 47 |
0334161 |
ANCHOR BLOCK |
| 47 |
0337000 |
NUT, Pivot, cam |
| 48 |
0336922 |
THRUST WASHER, Bearing |
| 49 |
0336937 |
BEARING |
| 49 |
0337907 |
PLUG, Shift rod hole |
| 50 |
0336918 |
BEARING CARRIER |
| 51 |
0336868 |
WASHER, Nut |
| 52 |
0313580 |
WASHER |
| 54 |
0321232 |
RETAINER WASHER |
| 55 |
0332414 |
SEAL |
| 55 |
0342620 |
SHIM |
| 57 |
0309705 |
SCREW |
| 58 |
0339822 |
SCREW, Mount bracket |
| 59 |
0433030 |
EXH. HOUSING, Inner, std |
| 60 |
0337007 |
BUMPER, Gate |
| 61 |
0332425 |
EXH. HSG,. Outer, std. |
| 62 |
0314390 |
RETAINER |
| 63 |
0317894 |
CACHE, tube de relevage |
| 64 |
0332419 |
LWR MT BRKT |
| 64 |
0336880 |
ROD, Grill |
| 65 |
0332420 |
LWR MT BRKT |
| 65 |
0336919 |
ADAPTER PLATE |
| 66 |
0336934 |
BOLT, Pump adapter |
| 67 |
0332429 |
GROMMET |
| 67 |
0336920 |
ADAPTER, Water pump |
| 68 |
0336938 |
COLLAR |
| 69 |
0336923 |
SPACER |
| 69 |
0344342 |
SEAL, Steering arm |
| 70 |
0336860 |
CAM, Shift |
| 70 |
0436470 |
MOUNT, Upper |
| 71 |
0332421 |
MOUNT, Bracket front |
| 71 |
0336887 |
RETAINING RING |
| 72 |
0333764 |
MOUNT, Lower |
| 72 |
0437820 |
ROLLER & BUSHING |
| 73 |
0335554 |
CROU, tube de relevage |
| 73 |
0336868 |
WASHER, Nut |
| 74 |
0337006 |
NUT, Shaft, gate |
| 76 |
0336859 |
GATE, Reverse |
| 77 |
0336998 |
SCREW, Bumper |
| 77 |
0582494 |
GROUND STRAP |
| 78 |
0332453 |
THRUST WASHER |
| 78 |
0337008 |
SPRING, Bumper, gate |
| 79 |
0336921 |
CLIP, Exhaust tube |
| 80 |
0333674 |
SCREW, Anode |
| 80 |
0336930 |
BOLT |
| 81 |
0324952 |
CLAMP |
| 81 |
0336942 |
BAR, Grill |
| 82 |
0173029 |
ANODE |
| 82 |
0434708 |
TUBE, Exhaust |
| 83 |
0336864 |
LOCK WASHER |
| 83 |
0339033 |
WASHER, Nut, cylinder |
| 84 |
0334343 |
BAFFLE, Exhaust relief |
| 84 |
0336928 |
LOCK WASHER |
| 85 |
0334281 |
GASKET |
| 85 |
0336917 |
WAVE WASHER |
| 86 |
0335221 |
SCREW, Throttle body to reed plate |
| 87 |
0331188 |
O-Ring |
| 87 |
0334879 |
PLATE, Baffle |
| 88 |
0306423 |
BOLT |
| 90 |
0333868 |
SCREW |
| 90 |
0437927 |
CABLE, Shift |
| 91 |
0313581 |
BUMBER, Mount screw |
| 91 |
0342609 |
EYE, Cable end |
| 92 |
0342608 |
BUSHING |
| 92 |
0434037 |
TILT ASSIST CYLINDER |
| 93 |
0434697 |
GREASE GUN |
| 94 |
0508303 |
GREASE, 8 oz. tube |
| 95 |
0333623 |
STERN BRACKET, Starboard |
| 95 |
0336882 |
THRUST RING |
| 96 |
0438592 |
WATER PUMP REPAIR KIT |
| 97 |
0389145 |
CHROME CUP & PLATE KIT |
