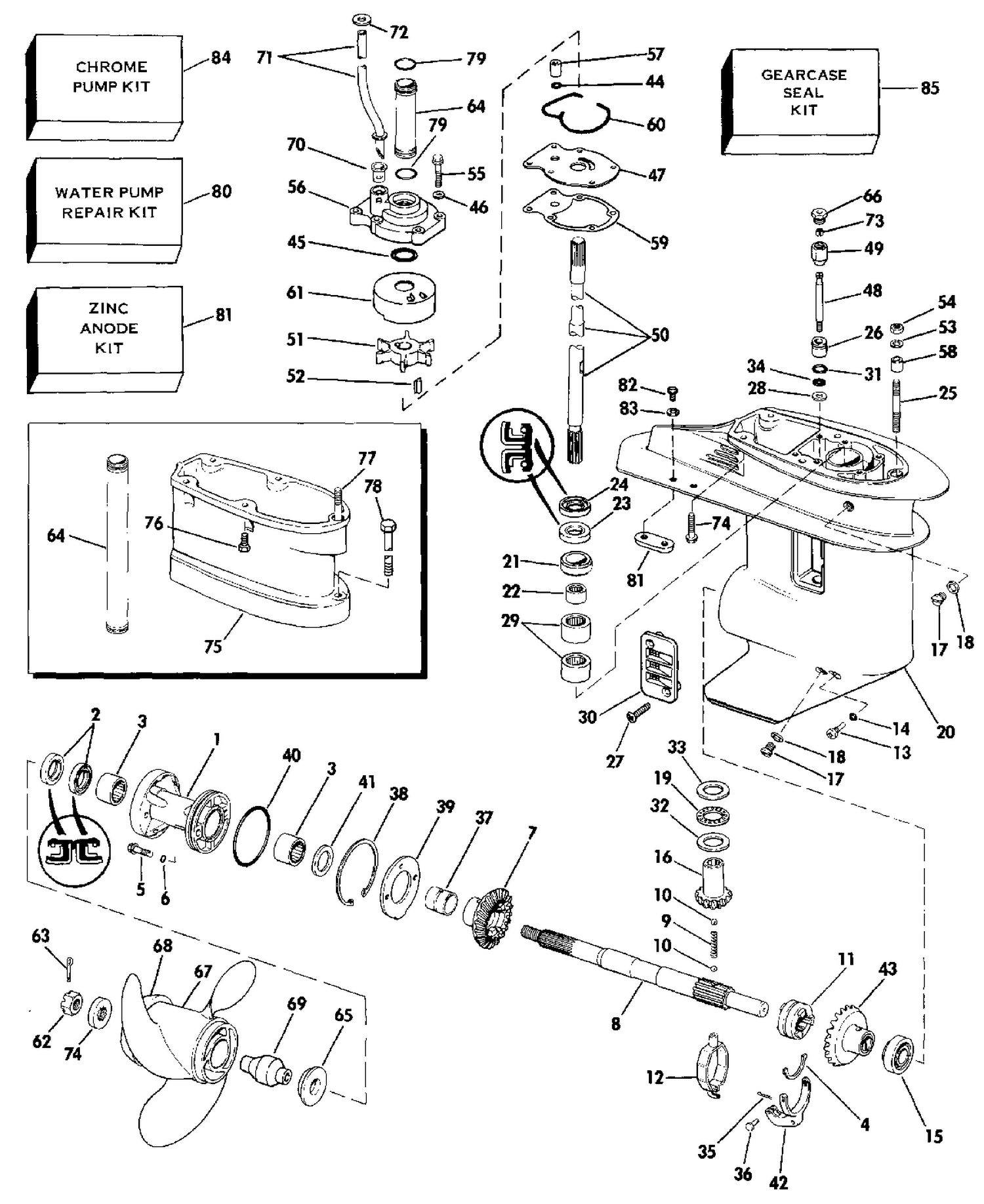

| Ref | Part Number | Description |
|---|
| 1 |
5008160 |
LOGEMENT DE ROULEMENT & JOINT This part replaces 0387023. |
| 11 |
0328318 |
SHIFTER, Clutch dog |
| 34 |
0301877 |
O RING SHIFT ROD |
| 42 |
0328771 |
LEAVER, Shifter |
| 44 |
0301877 |
O RING SHIFT ROD |
| 48 |
0331479 |
PIN, Cam follower |
| 49 |
0331465 |
NUT, Shift rod connector |
| 50 |
0328317 |
DRIVE SHAFT, Long |
| 50 |
0341635 |
DRIVESHAFT This part replaces 0328316. |
| 55 |
0324960 |
SCREW, Impeller housing |
| 64 |
0326692 |
SPACER, Impeller housing |
| 65 |
0319890 |
THRUST BUSHING, Prop |
| 66 |
0325624 |
CONNECTOR, Shift rod |
| 67 |
0387320 |
PROPELLER 11 1/4 X 7 AL |
| 67 |
0390380 |
PROPELLER 10 * 15 AL |
| 67 |
0390727 |
PROPELLER 11 * 9 SST |
| 67 |
0390728 |
PROPELLER 10 1/2 X 11 SST |
| 67 |
0390729 |
PROPELLER 10 * 13 SST |
| 67 |
0390730 |
PROPELLER 10 * 15 SST |
| 67 |
0390731 |
PROPELLEER 10 X 17 SST |
| 67 |
0391064 |
PROPELLER 10 * 17 AL. |
| 67 |
0765048 |
PROPELLER, Aluminum, 3 x 11 in. x 9 P This part replaces 0386317. |
| 67 |
0765049 |
PROPELLER This part replaces 0386637. |
| 67 |
0778863 |
PROPELLER This part replaces 0386933. |
| 71 |
0395339 |
WATER TUBE |
| 73 |
0325625 |
KEEPER, Shift rod |
| 76 |
0328333 |
SCREW |
| 80 |
0393630 |
WATER PUMP REPAIR KIT (Includes impeller housing) This part replaces 0393509. |
| 81 |
0173029 |
ANODE |
| 84 |
0394415 |
CHROME CUP & PLATE KIT This part replaces 0393262. |
| 0393423 |
0434763 |
GEARCASE Assy, (Less driveshaft) This part replaces 0393423. |
| 0396707 |
0396707 |
EXTENSION KIT ASSY |
