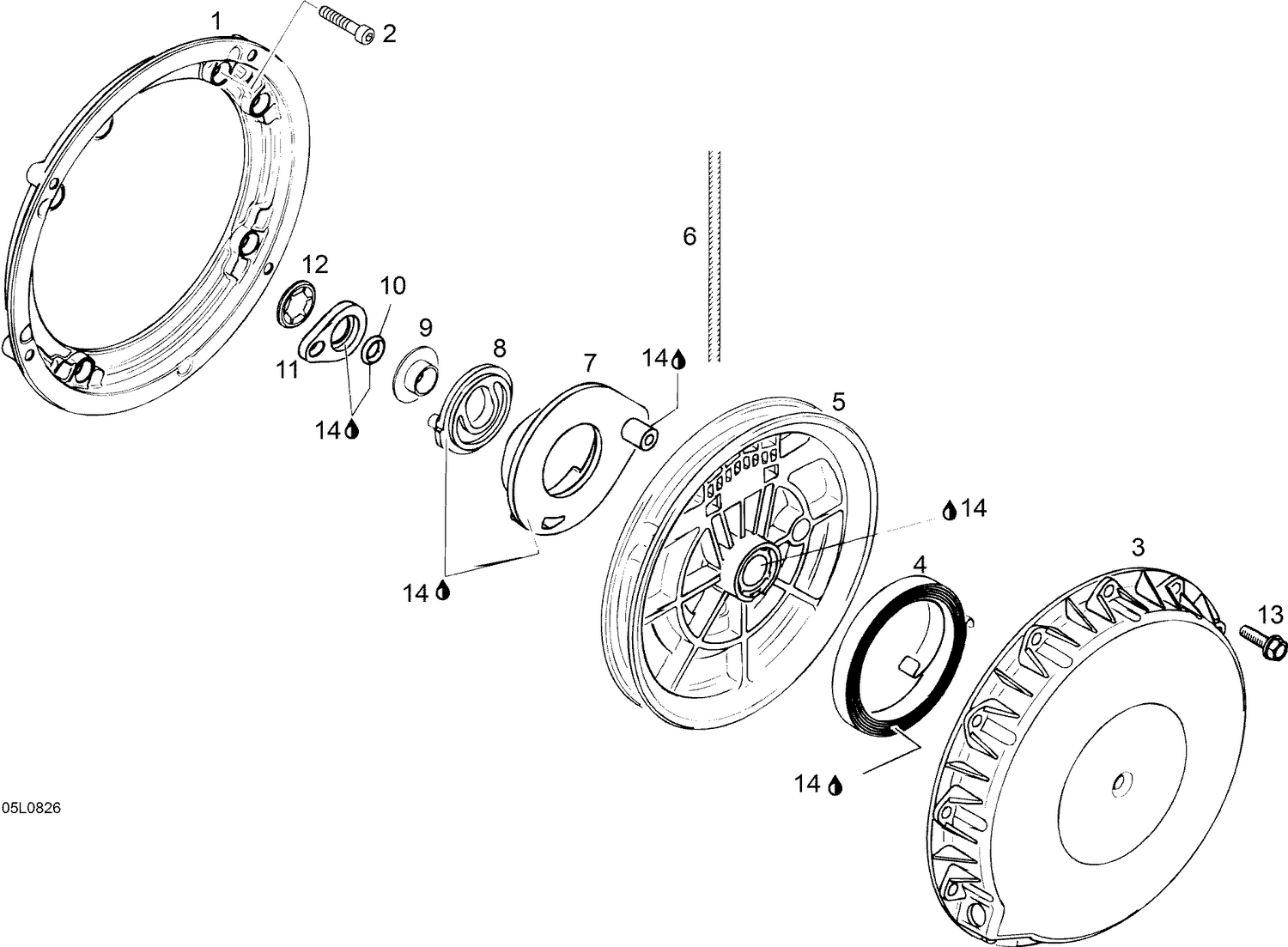

04- Rewind Starter
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810868 | Connecting flanged |
| 2 | 420241237 | Socket Head Screw M6 X 16 This part replaces 420241236. |
| 3 | 420910256 | Starter Housing This part replaces 420811403. |
| 4 | 420939115 | Rewind Spring Ass'y |
| 5 | 420852288 | Rope sheave |
| 6 | 412500200 | Starter Rope 2200 mm, Meter |
| 7 | 420852633 | Pawl This part replaces 420852297. |
| 8 | 420852640 | Pawl Lock This part replaces 420852308. |
| 9 | 420847926 | Stage Sleeve This part replaces 420847925. |
| 10 | 420250407 | O-rengas |
| 11 | 420852520 | Lukitsinkappale |
| 12 | 420845560 | Locking element |
| 13 | 420441386 | Flanged Torx Screw M6 X 20 This part replaces 420941256. |
