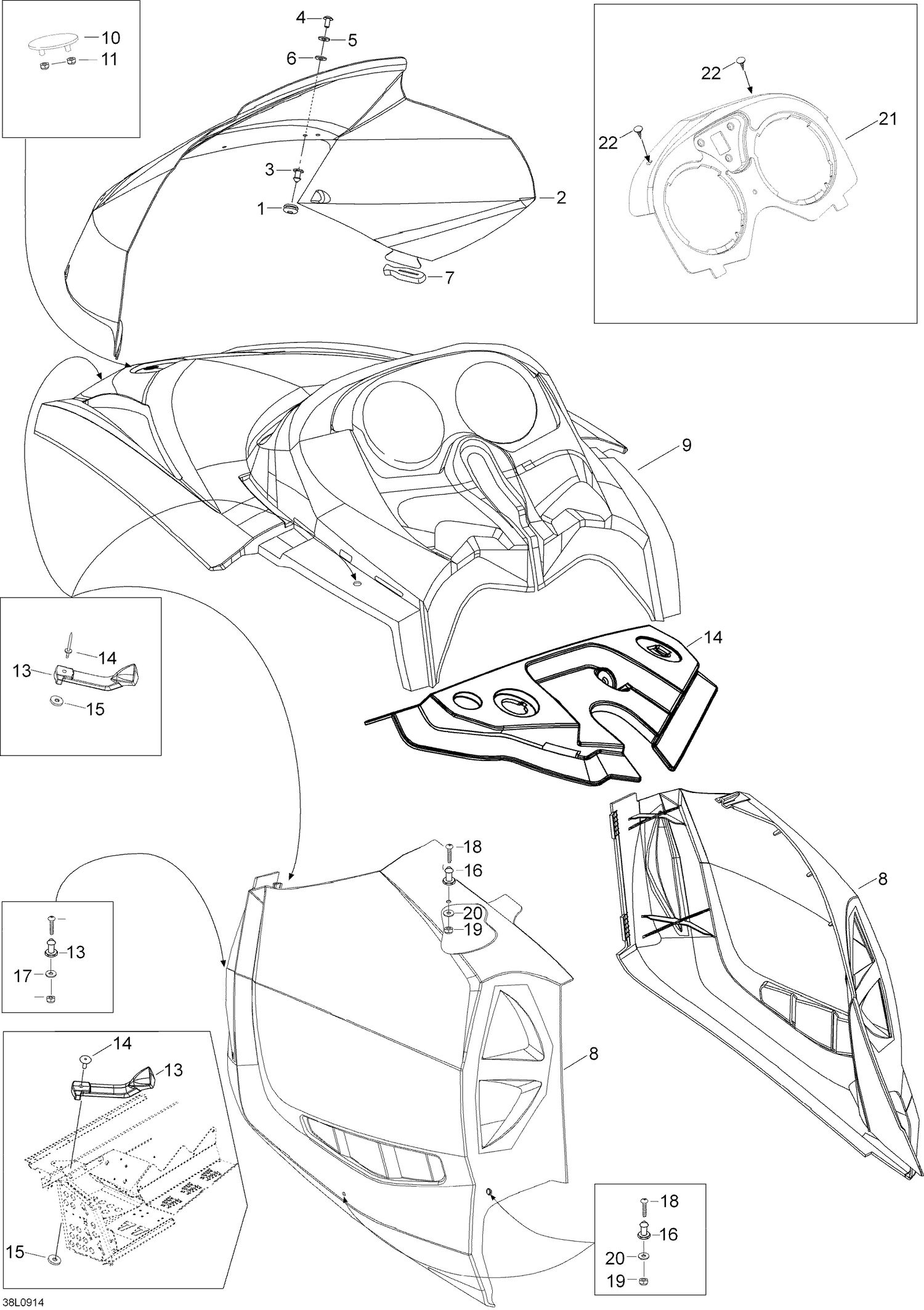

09- Hood And Console
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517307161 | Grommet This part replaces 517302841. |
| 2 | 605154485 | Windscreen |
| 3 | 517303439 | Knob |
| 4 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 5 | 250200025 | Washer M5 |
| 6 | 250200024 | Rubber Washer 5 mm |
| 7 | 570023800 | Latch |
| 8 | 605155341 | R.H. Panel ass'y, black |
| 8 | 605155666 | L.H. Panel ass'y, black |
| 9 | 605355661 | Hood/console, Red |
| 10 | 605455262 | Logo spacer |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 12 | 414644300 | Black, Dart |
| 13 | 5342952 | Hood Latch |
| 14 | 36037 | Rivet |
| 15 | 20008 | Washer A5,3 |
| 16 | 605449087 | Counter roller |
| 17 | 605355682 | Instrument panel |
| 18 | 40168 | Screw M4 x 25 |
| 19 | 33008 | Elastic stop nut M4 |
| 20 | 20037 | Washer A4,3 |
| 21 | 605253398 | Instrument panel |
