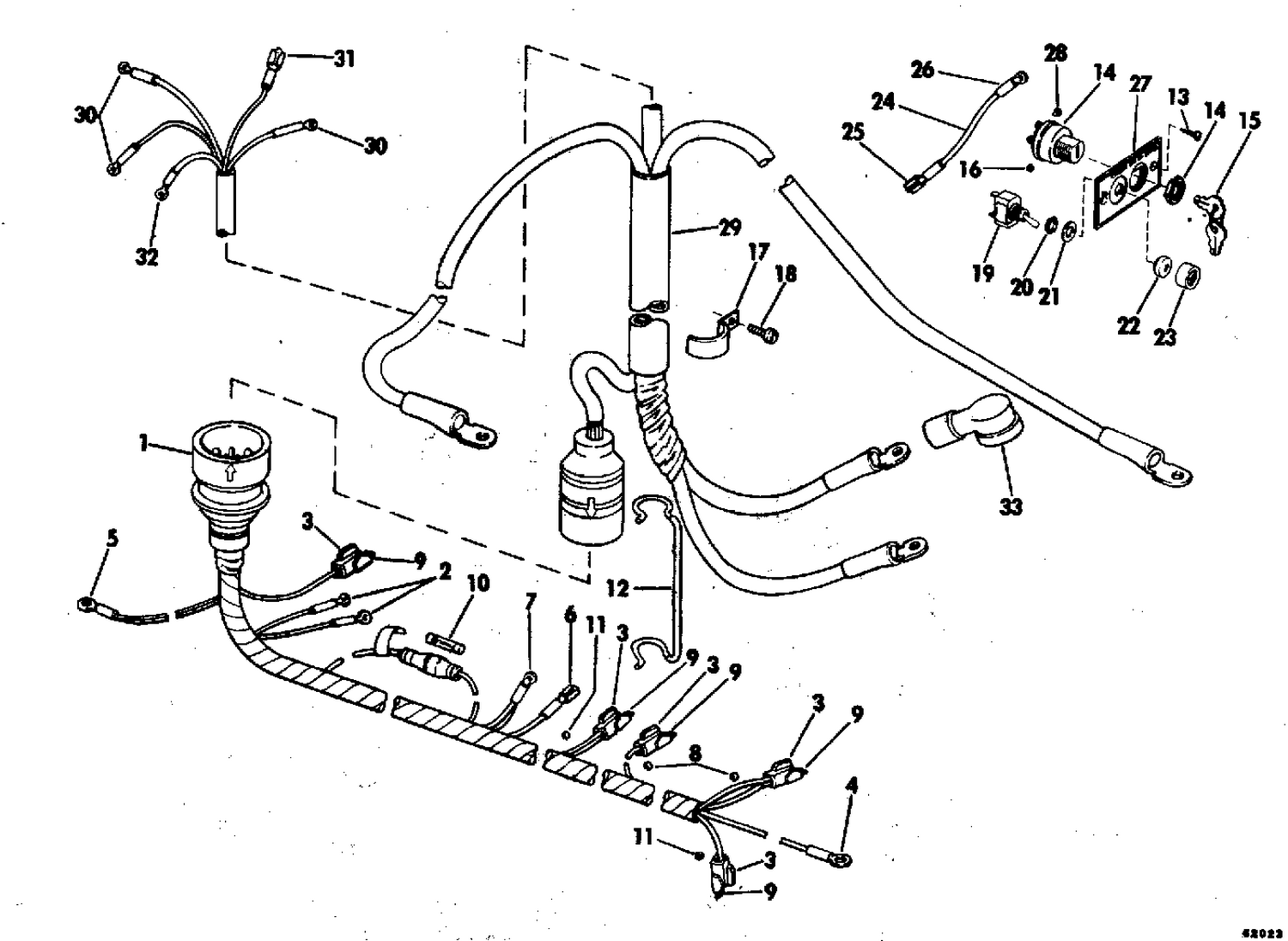

INSTRUMENT & CABLE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0386336 | CABLE ASSY ,Motor |
| 8 | 0511072 | CLIP |
| 11 | 0511071 | CLIP |
| 13 | 0312691 | SCREW, Cash pannel |
| 14 | 0386947 | IGNITION SWITCH |
| 15 | KEY,Ignition | Ref: 16 0306559 *SCREW, Ignition switch 0306559 |
| 19 | 0975257 | SWITCH ASSEMBLLY |
| 21 | 0900696 | WASHER |
| 24 | 0383351 | LEAD ASSEBMBLY,Ignition to choke switch |
| 29 | 0386705 | CABLE ASSEMBLY, Instrument cable |
| 0387619 | 0387619 | INSTRUMENTS & CABLE ASSY. |
