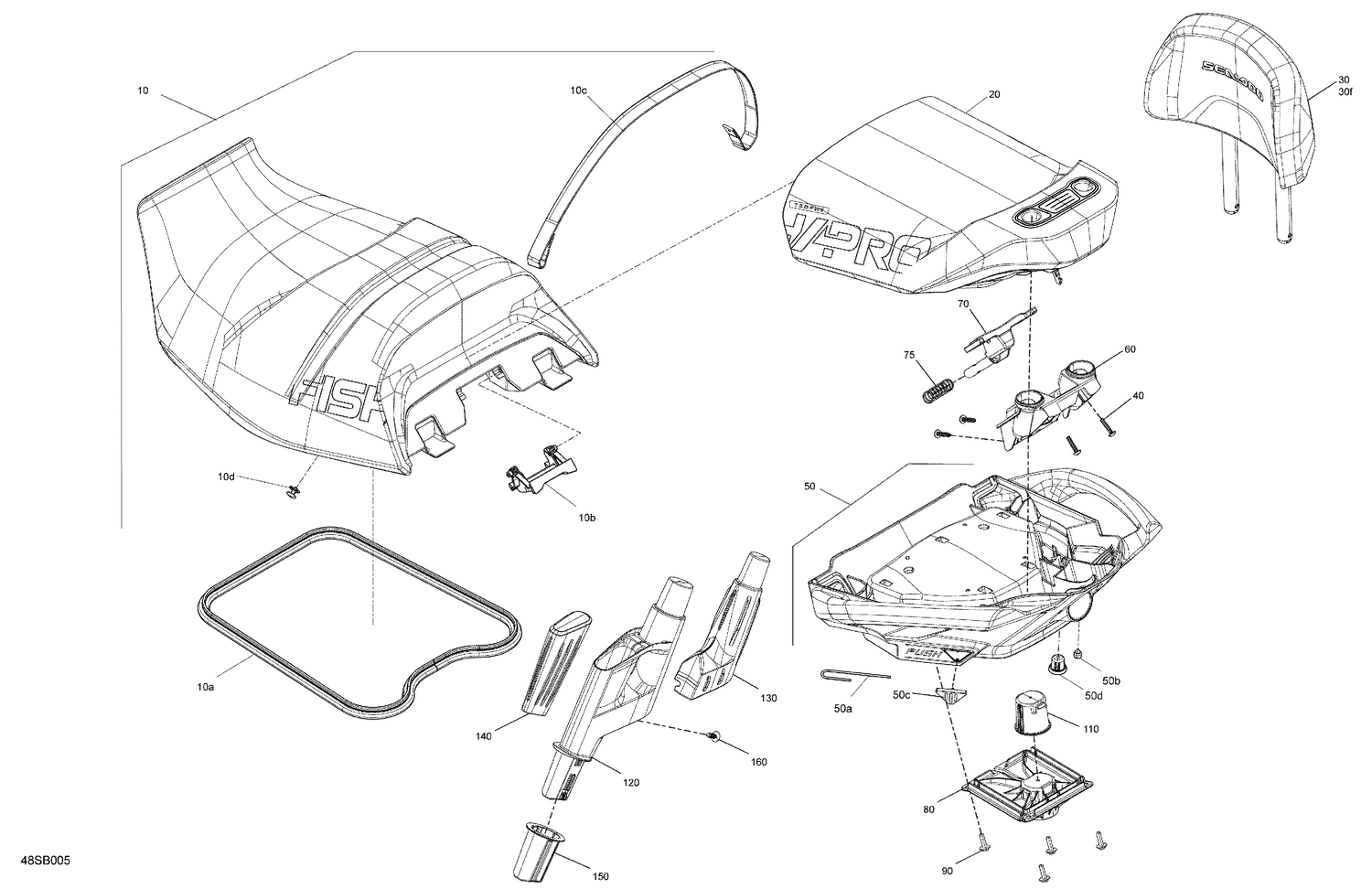

07- Body - Seat - North American Model
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 219704366 | Was 293200062 Seal |
| 10b | 269003103 | Seat Latch |
| 10c | 269003744 | Swift Silver, Seat Strap |
| 10d | 293150067 | Rivet |
| 20 | 269003615 | Orange Crush, Passenger Seat Ass'y |
| 30f | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 40 | 250001138 | Plastite Screw Torx Cone HD.M6.81X3 |
| 50a | 269003083 | Spring Latch |
| 50b | 293830005 | Rubber Bumper |
| 50c | 269004355 | Handle Trim This part replaces 269003778. |
| 50d | 269003085 | Stud Receiver |
| 60 | 269003709 | Base Latch |
| 70 | 269003708 | Overmolded Backrest Latch |
| 75 | 269003782 | Compression Spring |
| 80 | 269003673 | Upper Seat Anchorage |
| 90 | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 110 | 269003634 | Upper Wear Ring |
| 120 | 269003674 | Central Seat Support |
| 130 | 269003694 | Lower Float |
| 140 | 269003756 | Upper Float |
| 150 | 291005700 | Lower Wear Ring Ass'y |
