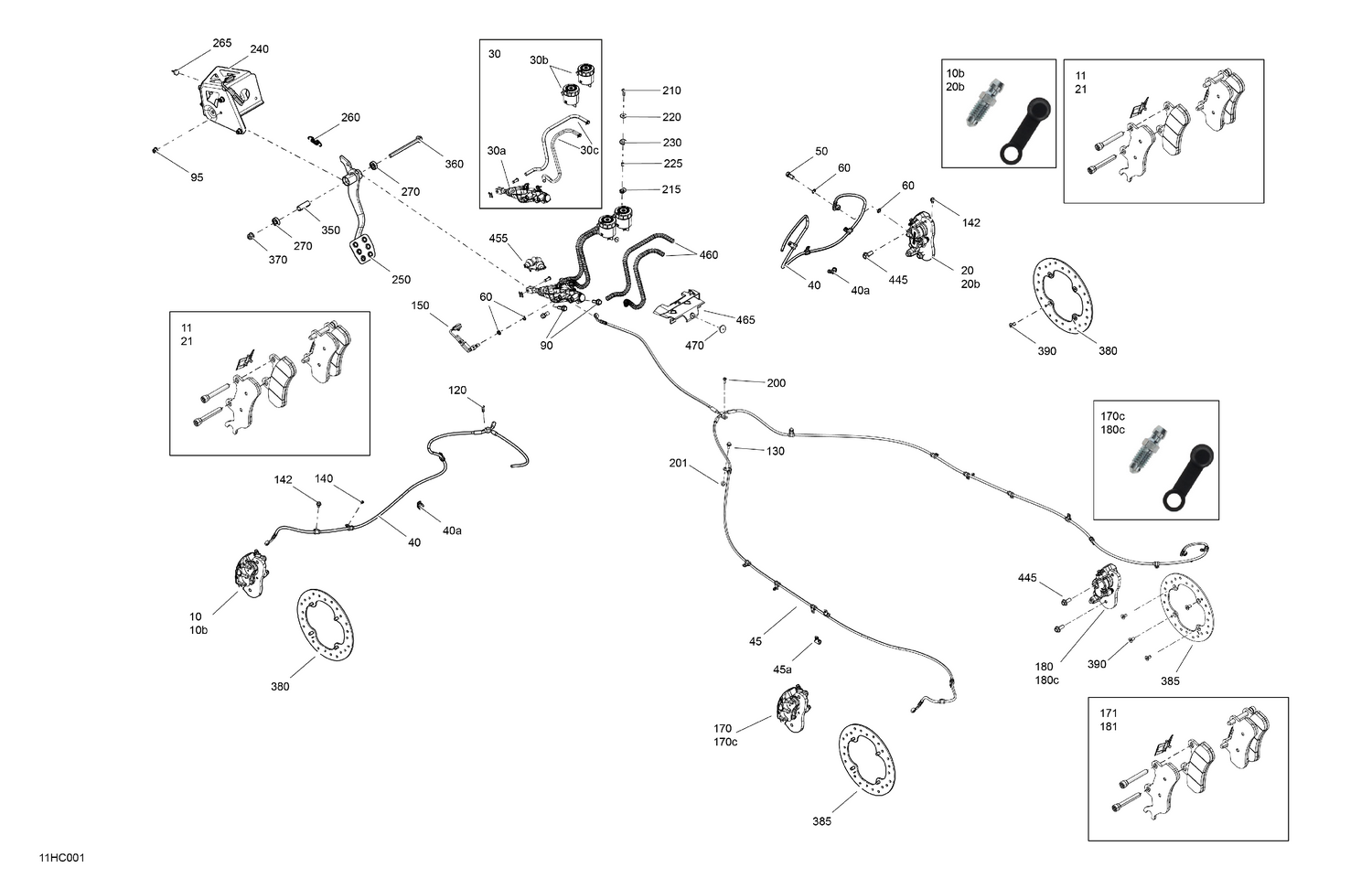

03- Mechanic - Brake System
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 705601017 | Bleeding Screw |
| 11 | 703501198 | LH/RH Front Brake Pad Set |
| 20b | 705601017 | Bleeding Screw |
| 21 | 703501198 | LH/RH Front Brake Pad Set |
| 30a | 705601803 | Master Cylinder |
| 30b | 705601020 | Oil Tank |
| 30c | 705601866 | Oil Hose Housing |
| 40a | 293650256 | Clamp |
| 45a | 293650256 | Clamp |
| 50 | 705600609 | Banjo Bolt (M10 x 1.25 thread) |
| 60 | 705601628 | Copper Washer |
| 90 | 207682544 | Hex. Flange Screw M8 X 25 |
| 95 | 233281416 | Hex. Elastic Flange Nut M8 |
| 120 | 235661644 | Torx Screw M6 X 16 |
| 130 | 207661644 | Hex. Flange Screw M6 X 16 |
| 140 | 390402200 | Pop Rivet 3/16" |
| 142 | 210261040 | Hex. Flange Screw M6 X 10 |
| 150 | 705601250 | Brake Switch |
| 170c | 705601017 | Bleeding Screw |
| 171 | 703501199 | LH/RH Rear Brake Pad Set |
| 180c | 705601017 | Bleeding Screw |
| 181 | 703501199 | LH/RH Rear Brake Pad Set |
| 200 | 250000720 | Torx Screw K50 X 16 |
| 201 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 210 | 250000762 | Torx Screw M5 X 25 |
| 215 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 250200040 | Flat Washer |
| 225 | 293900112 | Bushing |
| 230 | 414036300 | Grommet |
| 240 | 705207621 | Brake Support Plate Ass'y |
| 250 | 705601453 | Brake Pedal |
| 260 | 705600792 | Brake Pedal Spring |
| 265 | 708000759 | Rubber Stopper |
| 270 | 705600458 | Bearing |
| 350 | 705601275 | Bushing |
| 360 | 230603046 | Hex. Flange Screw, M10 X 130 |
| 370 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 380 | 705601841 | Front Disc Brake |
| 385 | 705601840 | Rear Disc Brake |
| 390 | 235381646 | Torx Screw M8 X 16, Scotch Grip |
| 445 | 207502546 | Hex. Flange Screw M10 X 25 |
| 455 | 705601750 | Hose Support |
| 460 | 219704407 | Tubing 10 MM 1000MM Long |
| 465 | 705601815 | Oil Tank Support |
