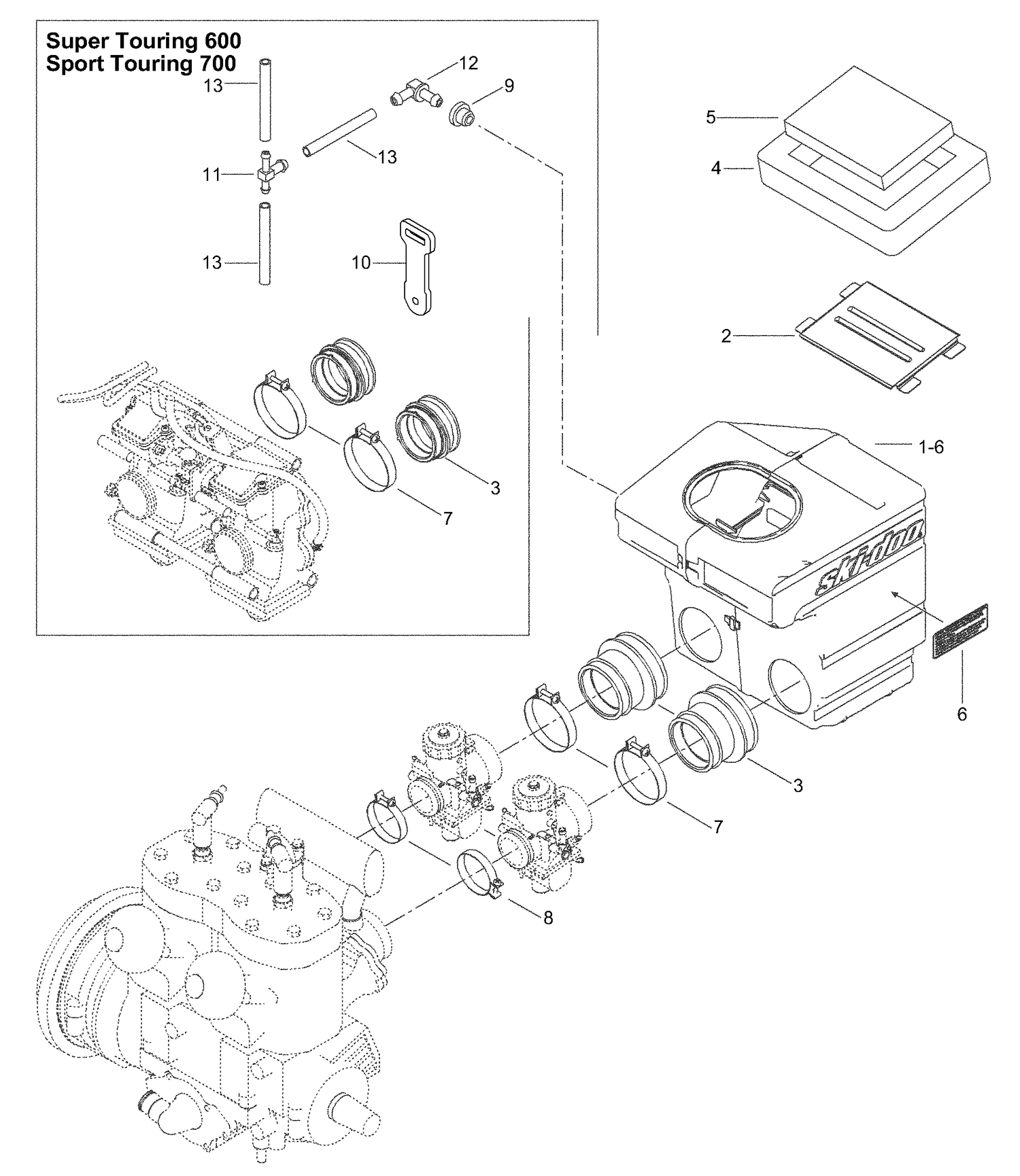

| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000092 | Intake adaptor |
| 4 | 508000099 | Lower foam |
| 5 | 508000154 | Air filter |
| 6 | 516001191 | Caution Label, Air Intake This part replaces 516000130. |
| 7 | 508000346 | Gemi Clamp This part replaces 508000162. |
| 8 | 512059192 | Clamp |
| 9 | 513032908 | Grommet |
| 10 | 512059372 | CARBURETOR LATCH - Call your local BRP dealership |
| 11 | 572045500 | T-fitting |
| 12 | 414580600 | Connector male |
