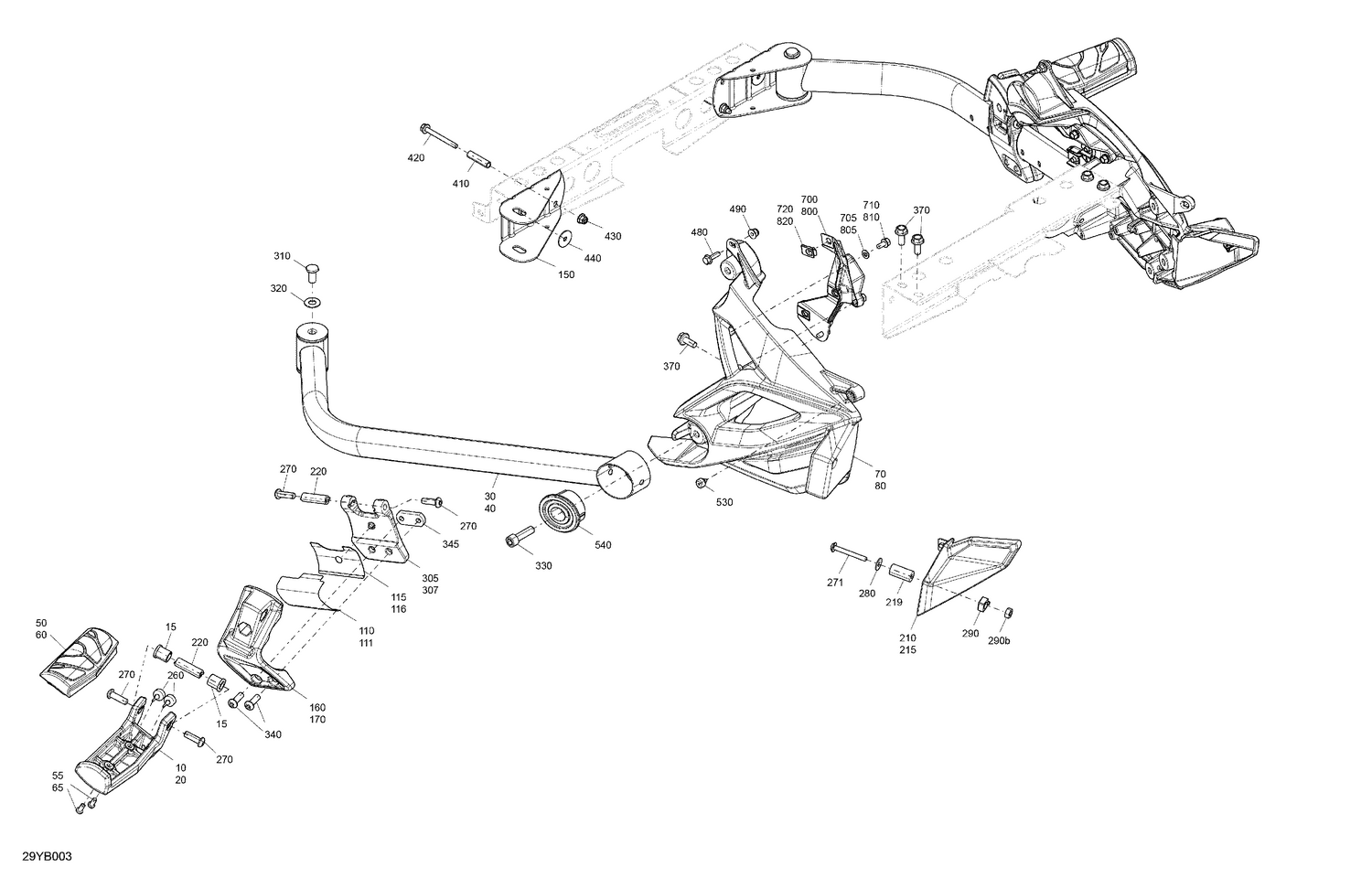

06- Frame - Footrest
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 705008166 | Spacer Bushing |
| 55 | 250000099 | Allen Plastite Screw #12 |
| 65 | 250000099 | Allen Plastite Screw #12 |
| 110 | 705014176 | LH Outer Protective Film |
| 111 | 705014177 | RH Outer Protective Film |
| 115 | 705014175 | RH Inner Protective Film |
| 116 | 705014174 | LH inner Protective Film |
| 210 | 708302066 | Carbon Black, LH Footpeg |
| 215 | 708302067 | Black, RH Footrest Trim |
| 219 | 705015387 | Socket Sleeve |
| 260 | 708000759 | Rubber Stopper |
| 270 | 250000830 | Socket Head Screw M8 X 25 |
| 280 | 234062670 | Stainless Steel Flat Washer |
| 290b | 232061600 | Hex. Nut M6 |
| 310 | 250000719 | Hex. Cap Screw Full Thread M10 X 20 |
| 320 | 506152582 | Washer |
| 330 | 244003560 | SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 340 | 250000830 | Socket Head Screw M8 X 25 |
| 345 | 705008553 | Back Plate |
| 370 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 410 | 705018575 | Spacer This part replaces 705008219. |
| 420 | 250000778 | Hex. Flange Screw M6 X 60 |
| 430 | 233261466 | Hex. Flange Elastic Nut M6 |
| 440 | 250200029 | Washer M6 |
| 480 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 490 | 233261466 | Hex. Flange Elastic Nut M6 |
| 530 | 293830005 | Rubber Bumper |
| 700 | 705008961 | LH Fairing Support |
| 705 | 234061670 | Black, Flat Washer 6 mm |
| 710 | 210261250 | Hex. Flange Screw M6 X 12 |
| 720 | 250100198 | Panel Nut M6 X 1.0 |
| 800 | 705008962 | RH Fairing Support |
| 805 | 234061670 | Black, Flat Washer 6 mm |
| 810 | 210261250 | Hex. Flange Screw M6 X 12 |
