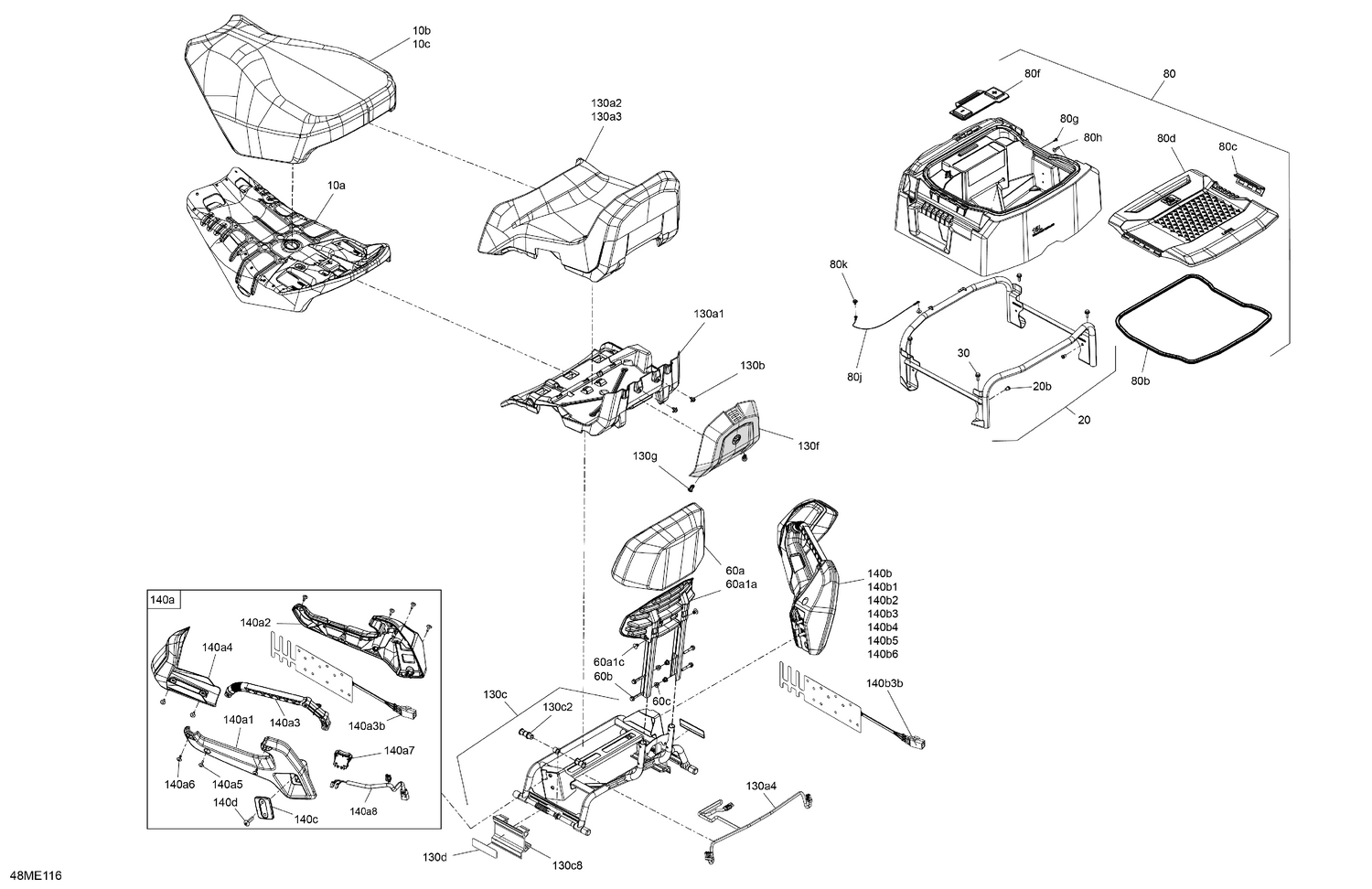

07- Body - Seat
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510007355 | Driver Seat Base |
| 10b | 510007168 | Driver Seat Foam |
| 10c | 510007624 | Driver Seat Cover |
| 20b | 293450268 | Insert M5 X 0.8 |
| 30 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 60a1a | 510007000 | Backrest Support |
| 60a1c | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 60b | 207663544 | Hex. Flange Screw M6 X 35 |
| 60c | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 80b | 293830188 | Seal, 1PC = 3M |
| 80c | 269502449 | Latch |
| 80d | 511001274 | Box Cover |
| 80f | 510006789 | Access Cover |
| 80g | 250001034 | Torx-Truss Screw K40 X 10 |
| 80h | 250000724 | Torx Screw M5 X 20 |
| 80j | 293750092 | Retaining Cable |
| 80k | 250000805 | Plastite Screw M4 X 10 |
| 130a1 | 510006885 | Passender Seat Base |
| 130a2 | 510007172 | Passenger Seat Foam |
| 130a3 | 510007640 | Passenger Seat Cover |
| 130a4 | 515178588 | Seat wiring Harness |
| 130b | 293150027 | Avdel Rivet |
| 130c2 | 506152520 | Cushion |
| 130d | 516009911 | Warning Label |
| 130f | 510007867 | Rear Seat Trim |
| 130g | 293150230 | Tuflok Plastic Rivet |
| 140a1 | 510006492 | LH Ext. Passenger Hand Hold |
| 140a2 | 510006527 | LH Int. Passenger Hand Hold |
| 140a3b | 515178576 | Heated Element |
| 140a4 | 510006495 | LH Passenger Handle Deflector |
| 140a5 | 250000889 | Screw M4 X 16 |
| 140a6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140a7 | 515178505 | Rocker Switch |
| 140a8 | 515178464 | Heated Grip Wiring Harness |
| 140b1 | 510006486 | RH Ext. Passenger Hand Hold |
| 140b2 | 510006487 | RH Int. Passenger Hand Hold |
| 140b3b | 515178576 | Heated Element |
| 140b4 | 510006489 | RH Passenger Handle Deflector |
| 140b5 | 250000889 | Screw M4 X 16 |
| 140b6 | 250000941 | Torx-Truss M/S M5 X 14 |
| 140c | 510006602 | Passenger Handle Trim |
