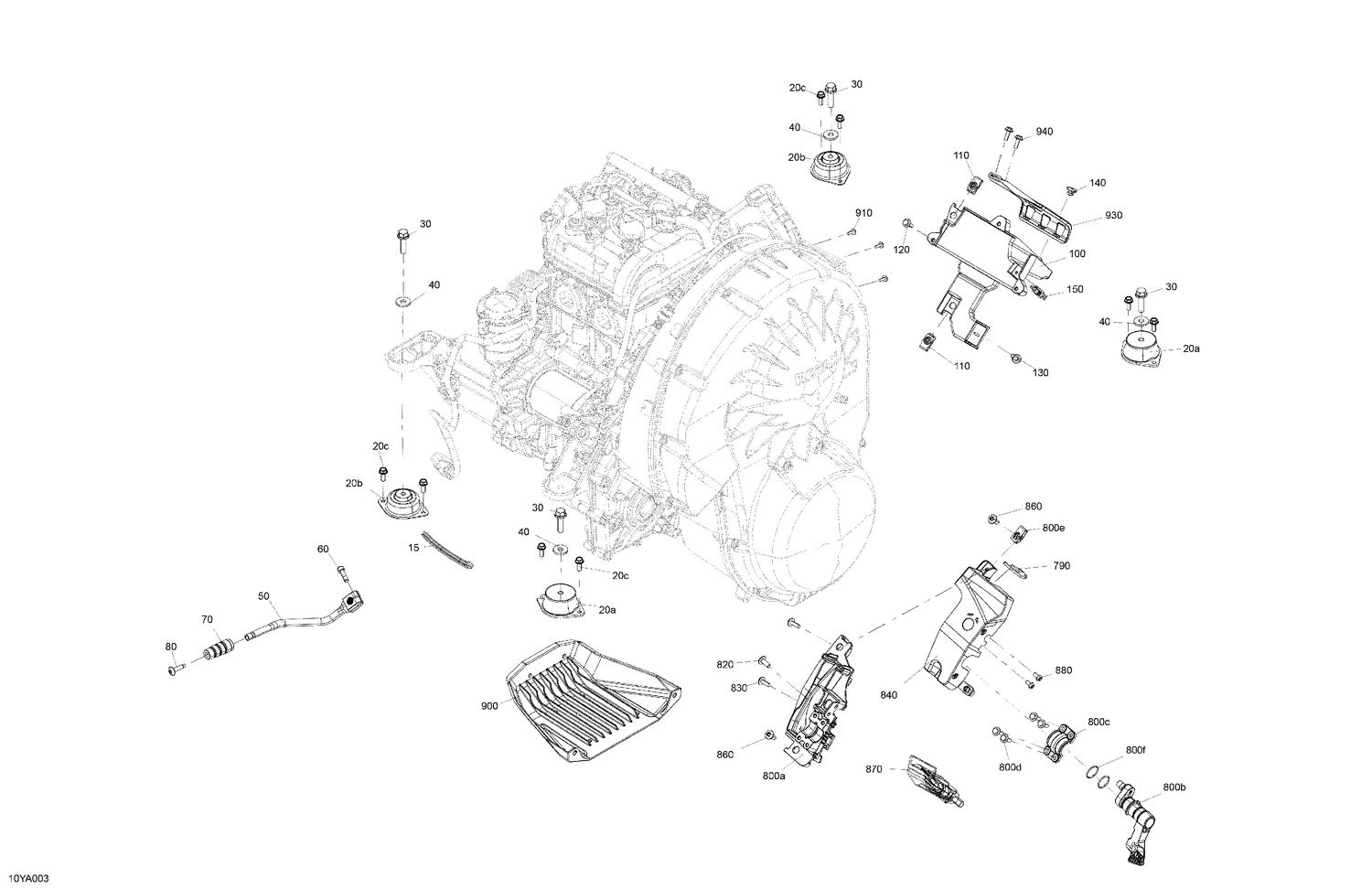

02- Engine - System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 219704354 | Trim 1000Mm Long |
| 20a | 512061145 | Rubber Mount |
| 20b | 512060448 | Rubber Mount |
| 20c | 210261650 | Hex. Flange Screw M6 X 16 |
| 30 | 207583054 | Hex. Flange Screw S.GRIP M8 X 30 |
| 40 | 503183200 | Yellow, Washer |
| 50 | 707002045 | Shift Lever |
| 60 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 |
| 70 | 707000456 | End Clutch Pedal |
| 80 | 250000728 | Torx Screw M6 X 25 |
| 100 | 707002214 | Support Module |
| 110 | 250100198 | Panel Nut M6 X 1.0 |
| 120 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 130 | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 140 | 390406500 | Pop Rivet 3/16" |
| 150 | 515178223 | Clip Connector |
| 790 | 707002273 | Bracket |
| 800a | 707002218 | Support Parking Brake |
| 800b | 707002827 | Parking Brake Lever |
| 800c | 707002240 | Clamp |
| 800d | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 800e | 250100198 | Panel Nut M6 X 1.0 |
| 800f | 293300079 | O-Ring |
| 820 | 250000717 | Torx Head Screw M6 X 16 |
| 830 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 840 | 707002239 | Cover |
| 840 | 707002241 | Cover |
| 860 | 250000717 | Torx Head Screw M6 X 16 |
| 870 | 707000666 | Padlock with Key |
| 880 | 205951046 | Socket Head Screw M5 X 10 |
| 900 | 707002350 | Plate Skid, Polyone |
| 910 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 930 | 707002582 | Deflector |
