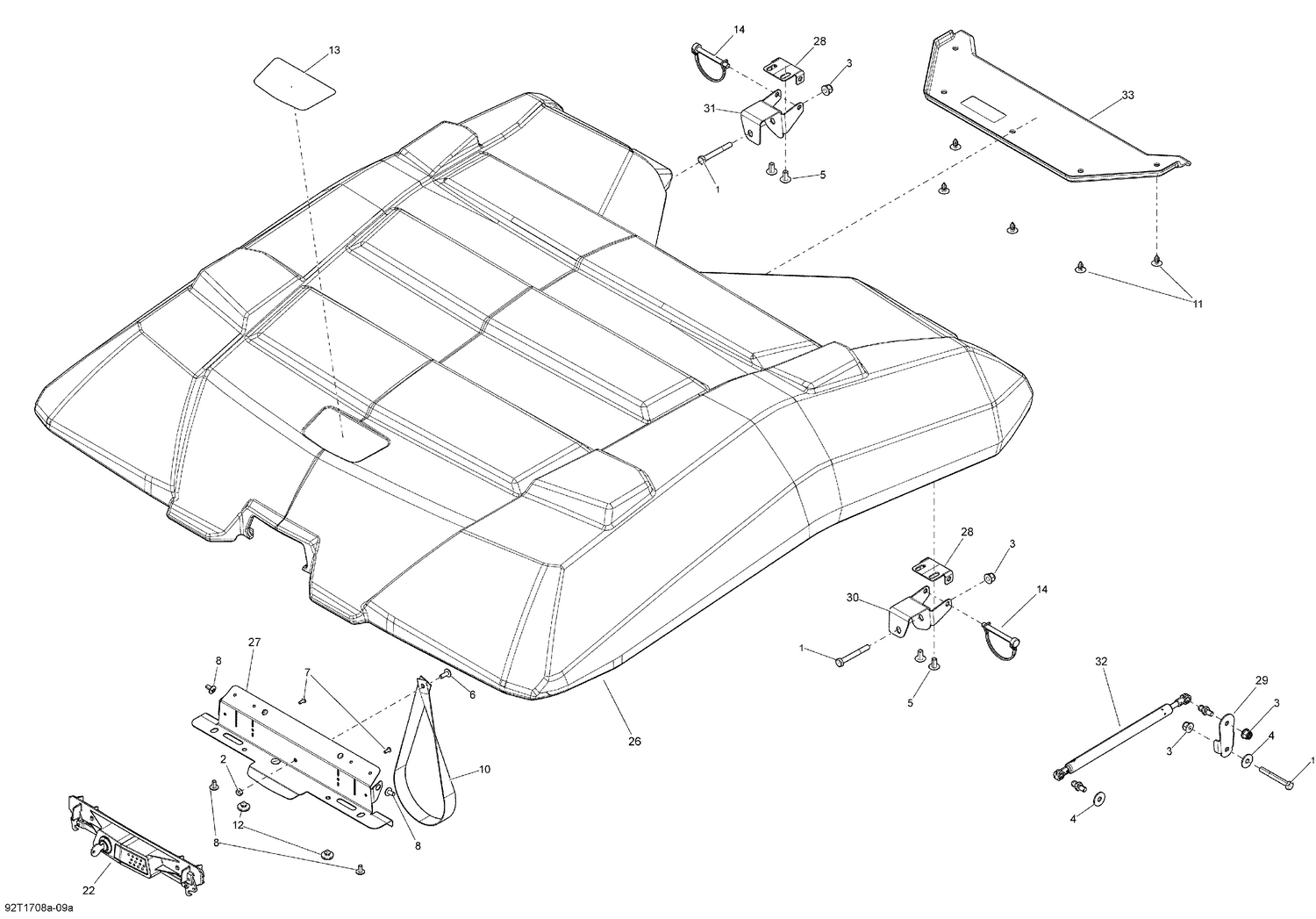

09- Cargo Hard Top
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207086544 | Hex. Screw M8 x 65 |
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 |
| 4 | 234082410 | Flat Washer 8 mm |
| 5 | 250000746 | Torx Truss Screw M8 X 16 This part replaces 250000198. |
| 6 | 250000223 | Torx Screw M6 X 16 |
| 7 | 250000666 | Washer Head Hexagonal Screw K40 X 10 |
| 8 | 250000804 | Torx Screw M6 X 12 |
| 10 | 293850119 | HOLDING STRAP - Call your local BRP dealership |
| 11 | 414644300 | Black, Dart |
| 12 | 605452114 | Plug |
| 13 | 704904235 | Warning Label |
| 14 | 706001602 | Pin Onto The Shaft |
| 22 | 708200249 | Latch Assembly |
| 26 | 708301282 | LARGE HARD TOP - Call your local BRP dealership |
| 27 | 708301283 | LOCK HOUSING COVER - Call your local BRP dealership |
| 28 | 708301284 | Upper Hinge |
| 29 | 708301287 | Side Bracket Shock |
| 30 | 708301340 | LH LOWER HINGE PLATE CORNER - Call your local BRP dealership |
| 31 | 708301342 | RH LOWER HINGE PLATE CORNER - Call your local BRP dealership |
| 32 | 708301346 | Gas Shock |
