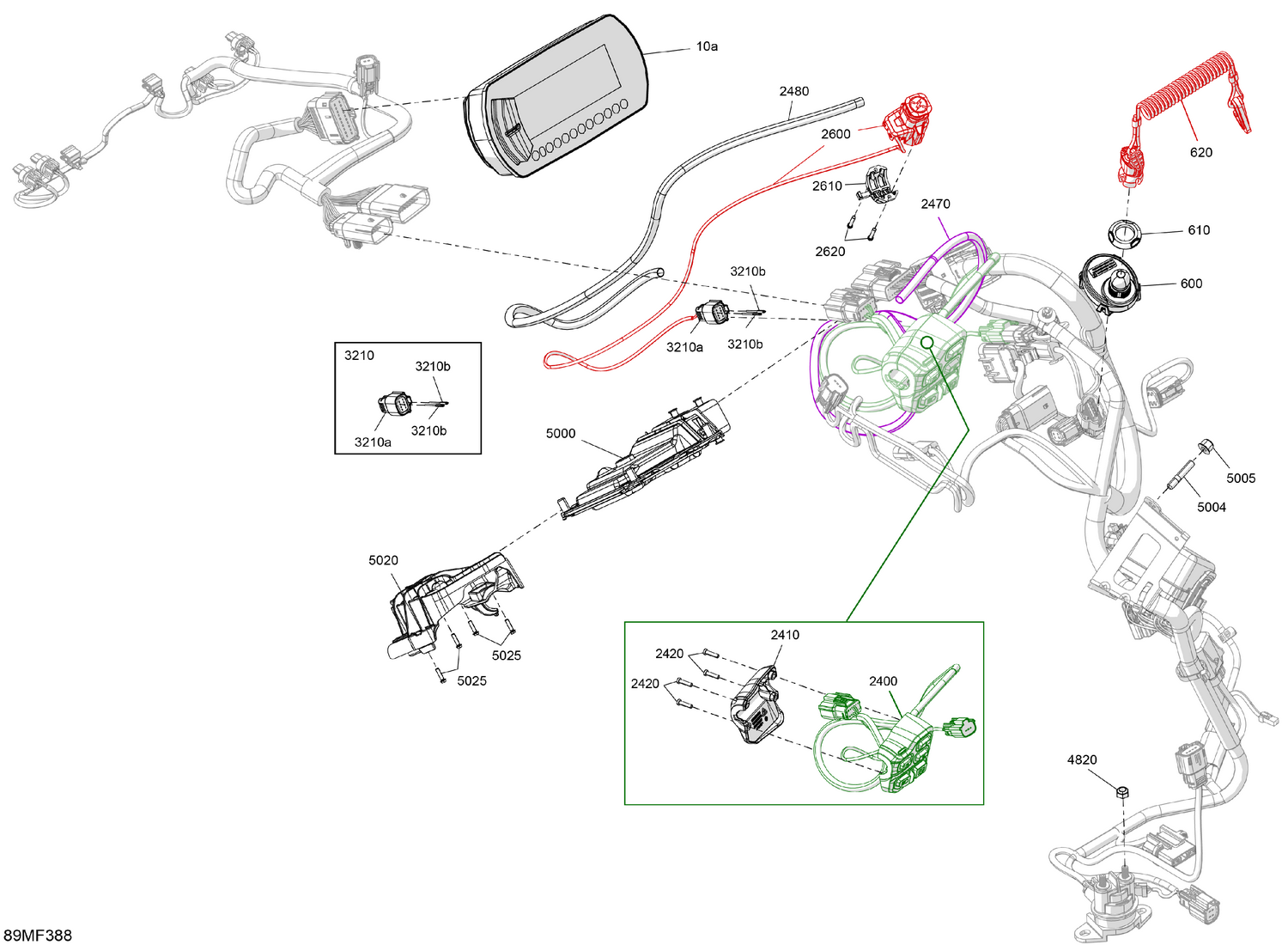

08- Electric - Upper Section
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 600 | 710008832 | Terminal DESS CAN |
| 610 | 278004274 | Specialized Nut |
| 620 | 515178286 | Grey, RF Key Ass'y |
| 2400 | 515179676 | LH Front Multifunction Switch |
| 2410 | 515179437 | Switch Cover |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 2480 | 415130141 | Braided Sleeve |
| 2600 | 515179472 | Emergency Stop Switch |
| 2610 | 515179182 | Clamp |
| 2620 | 250001201 | Screw PT. Socket T10 K30 X 16 |
| 3210a | 515179228 | Connector Molex Female 8 Cavities |
| 3210b | 278002860 | Sealing Cap |
| 4820 | 232561414 | Elastic Stop Nut M6 |
| 5000 | 420464172 | Vehicle Control Unit |
| 5004 | 515180121 | Stud Double End M5X0.8X26 |
| 5005 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 5020 | 512061397 | Module Support |
