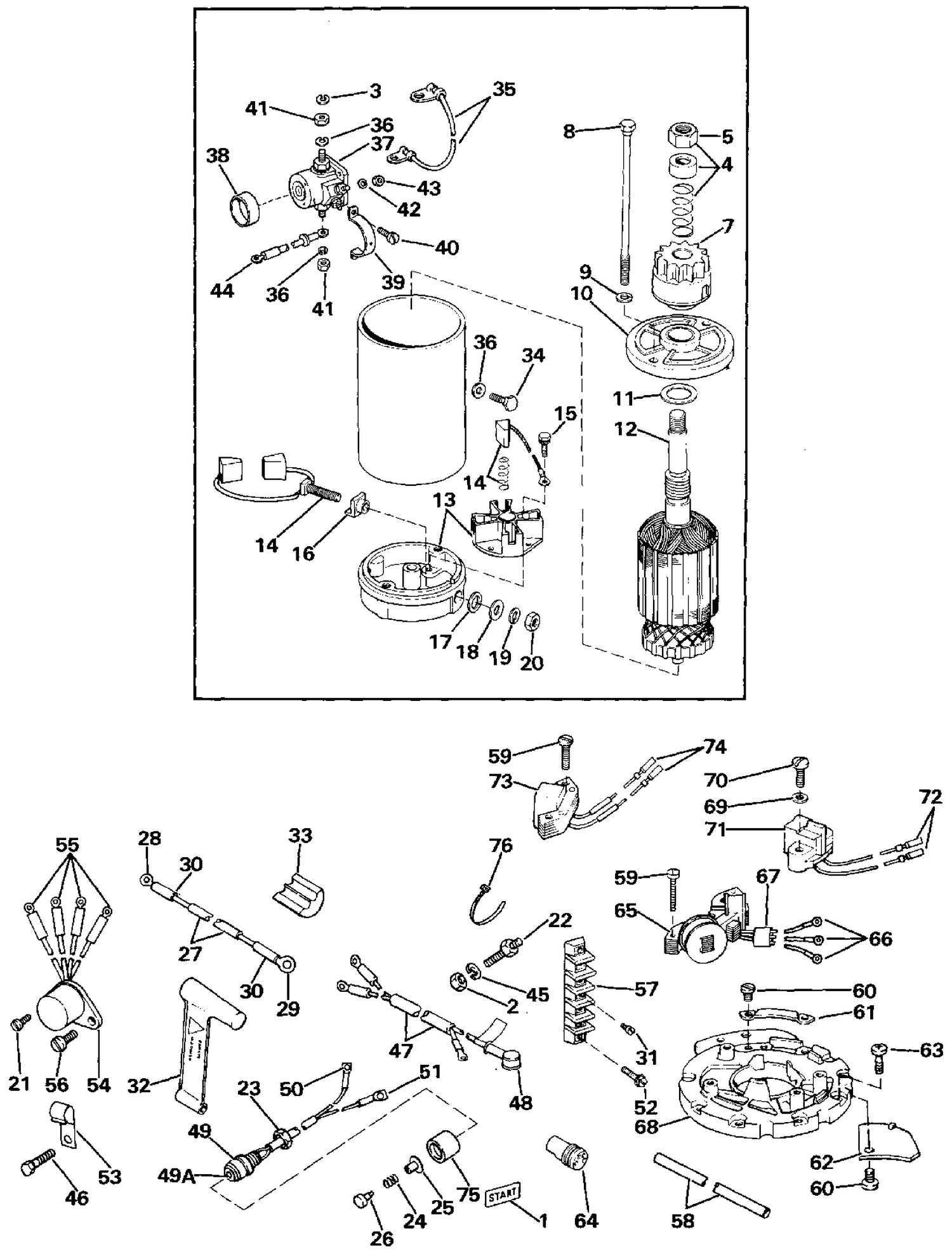

| Ref | Part Number | Description |
|---|
| 4 |
0393354 |
NUT SPRING & SPACER KIT |
| 5 |
0393354 |
NUT SPRING & SPACER KIT This part replaces 0316740. |
| 7 |
0384781 |
DRIVE |
| 8 |
0387933 |
THRU BOLT PACKAGE |
| 12 |
0384779 |
ARATURE AY |
| 13 |
0385844 |
CAP ASSY COMMUTATOR |
| 21 |
0314576 |
SCREW |
| 24 |
0313584 |
SPRING |
| 31 |
0329182 |
VIS, borne |
| 34 |
0302479 |
VIS, démarreur vers bloc cylindres-carter |
| 35 |
0580733 |
FIL, masse solénoïde |
| 36 |
0305325 |
LOCKWASHER |
| 38 |
0311217 |
MANCHON, solénoïde |
| 39 |
0330112 |
BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 40 |
0324644 |
SCREW, Solecoid mounting |
| 46 |
0306831 |
BATTERY CABLE ASSY. |
| 47 |
0584381 |
CÂBLE DE BATTERIE This part replaces 0391601. |
| 50 |
0329816 |
TERINAL This part replaces 0114202. |
| 53 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309041. |
| 54 |
0581778 |
REDRESSEUR |
| 57 |
0511563 |
TERMINAL BLOCK |
| 58 |
0511482 |
SLEEVE |
| 60 |
0303212 |
VIS, collier & capot |
| 61 |
0511458 |
COLLIER, fils |
| 62 |
0511459 |
CACHE, fils |
| 63 |
0511460 |
VIS, dispositif de retenue |
| 65 |
0582412 |
STATOR ASSEMBLY |
| 67 |
0311601 |
SLEEVE, Leads |
| 68 |
0582417 |
PLATE & SLEEVE ASSEMBLY |
| 71 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 73 |
0581670 |
CHARGE COIL |
| 0389275 |
0389275 |
STARTER MOTOR ASSY. |
| 0394715 |
0396949 |
ELECTRIC START KIT This part replaces 0394715. |
| 0582411 |
0582411 |
PLATE ASSEMBLY COMPLETE |
