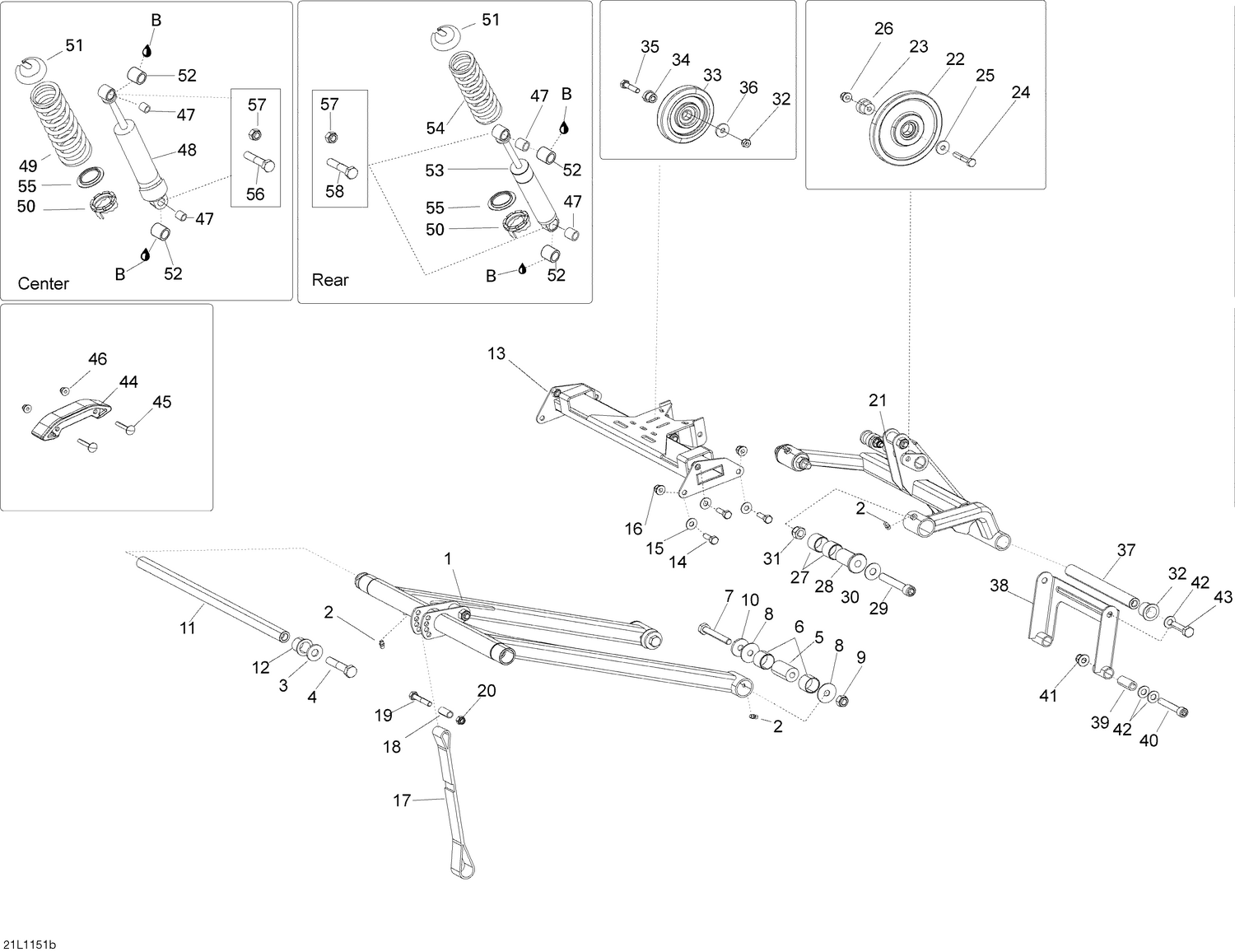

08- Rear Suspension
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| A | 293550033 | SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| B | 293800005 | Loctite 271, 10 ml |
| XXX | Not | Available As Spare Part - Shock ass'y, center |
| 1 | 503192342 | Front arm |
| 2 | 408200700 | Grease Fitting |
| 3 | 250200005 | Conical Spring Washer M12 |
| 4 | 40243 | Screw hex M12 x 60 |
| 5 | 605354157 | Shaft lower short |
| 6 | 31065 | Bushing |
| 7 | 40021 | Screw hex 10 x 70 |
| 8 | 605355801 | Washer |
| 9 | 232500416 | Elastic Stop Nut M10 |
| 10 | 503183300 | Washer |
| 11 | 5347719 | Shaft upper |
| 12 | 31024 | Bearing |
| 13 | 503192344 | Middle beam |
| 14 | 207182544 | Hex. Screw M8 X 25 |
| 15 | 605620002 | Washer |
| 16 | 233281414 | Hex. Flange Elastic Nut M8 |
| 17 | 605355116 | Limiter strap |
| 18 | 605455335 | Sleeve |
| 19 | 207084544 | Hex. Screw M8 X 45 |
| 20 | 232581414 | Hex. Elastic Stop Nut M8 |
| 21 | 503192345 | Rear arm weld |
| 22 | 503192675 | Idler wheel 133 |
| 23 | 605454461 | Sleeve |
| 24 | 207084544 | Hex. Screw M8 X 45 |
| 25 | 20077 | M8 Washer |
| 26 | 233281414 | Hex. Flange Elastic Nut M8 |
| 27 | 31065 | Bushing |
| 28 | 503191927 | Shaft short |
| 29 | 205027544 | SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership |
| 30 | 20040 | Washer |
| 31 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 32 | 31024 | Bearing |
| 33 | 572043500 | Idler Wheel |
| 34 | 605454167 | Sleeve |
| 35 | 207083544 | Hex. Screw M8 X 35 |
| 36 | 20077 | M8 Washer |
| 37 | 503192397 | Shaft |
| 38 | 503192346 | Rear swing |
| 39 | 503192341 | Rear swing shaft |
| 40 | 205006044 | Screw socket |
| 41 | 233201414 | Hex. Flanged Elastic Nut M10 |
| 42 | 234001410 | Flat Washer 10 mm |
| 43 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 44 | 503192731 | SLIDING PAD - Call your local BRP dealership |
| 45 | 207764044 | BOLT CARRIAGE DIN.603 - Call your local BRP dealership |
| 46 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 47 | 5446652 | Bushing |
| 48 | 503192322 | Shock |
| 49 | 503192431 | Spring |
| 50 | 230078 | Adjusting Cam |
| 51 | 230076 | Spring Seat |
| 52 | 31094 | Cushion |
