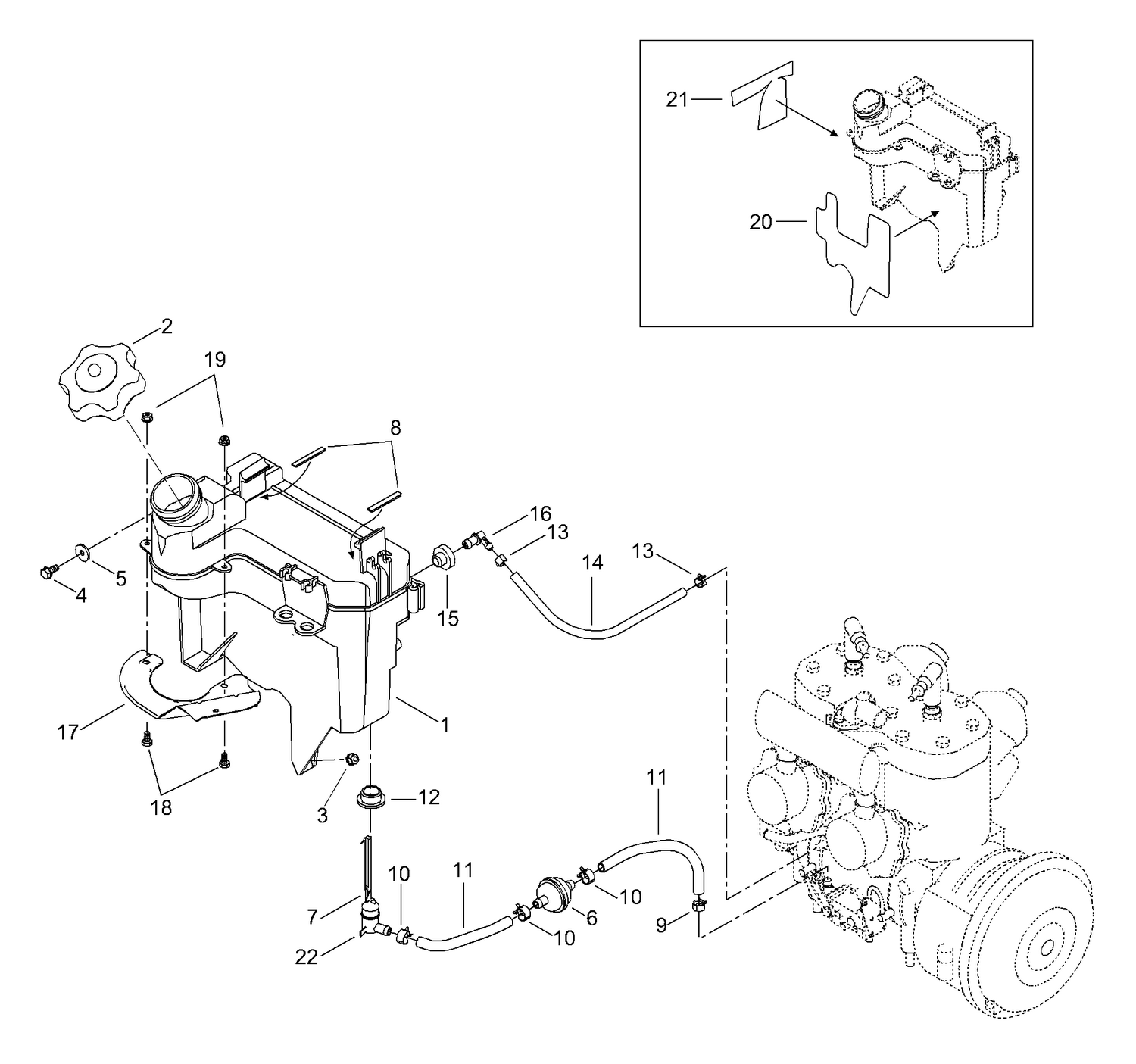

01- Oil Tank
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000049 | Oil tank |
| 2 | 519000042 | CAP - Call your local BRP dealership |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 | 40327 | Self tapping screw M6 |
| 5 | 20017 | Serrated lock washer |
| 6 | 414536500 | Oil filter |
| 7 | 414681900 | Float |
| 8 | 39011 | Protection trim |
| 9 | 414420700 | Universal Spring Clamp |
| 10 | 414415200 | Clamp |
| 11 | 39046 | Hose 11/8 |
| 12 | 570023000 | Seal for sensor |
| 13 | 414554800 | Clamp |
| 14 | 39038 | Hose 6.5/9.5 |
| 15 | 709200285 | Grommet This part replaces 570135100. |
| 16 | 414580700 | Male Connector |
| 17 | 5348098 | Deflector |
| 18 | 40026 | Screw M5x12 |
| 19 | 233251434 | Flanged Elastic Nut M5 This part replaces 33062. |
| 20 | 519000050 | Reflective sheet |
| 21 | 519000051 | REFLECTIVE SHEET - Call your local BRP dealership |
