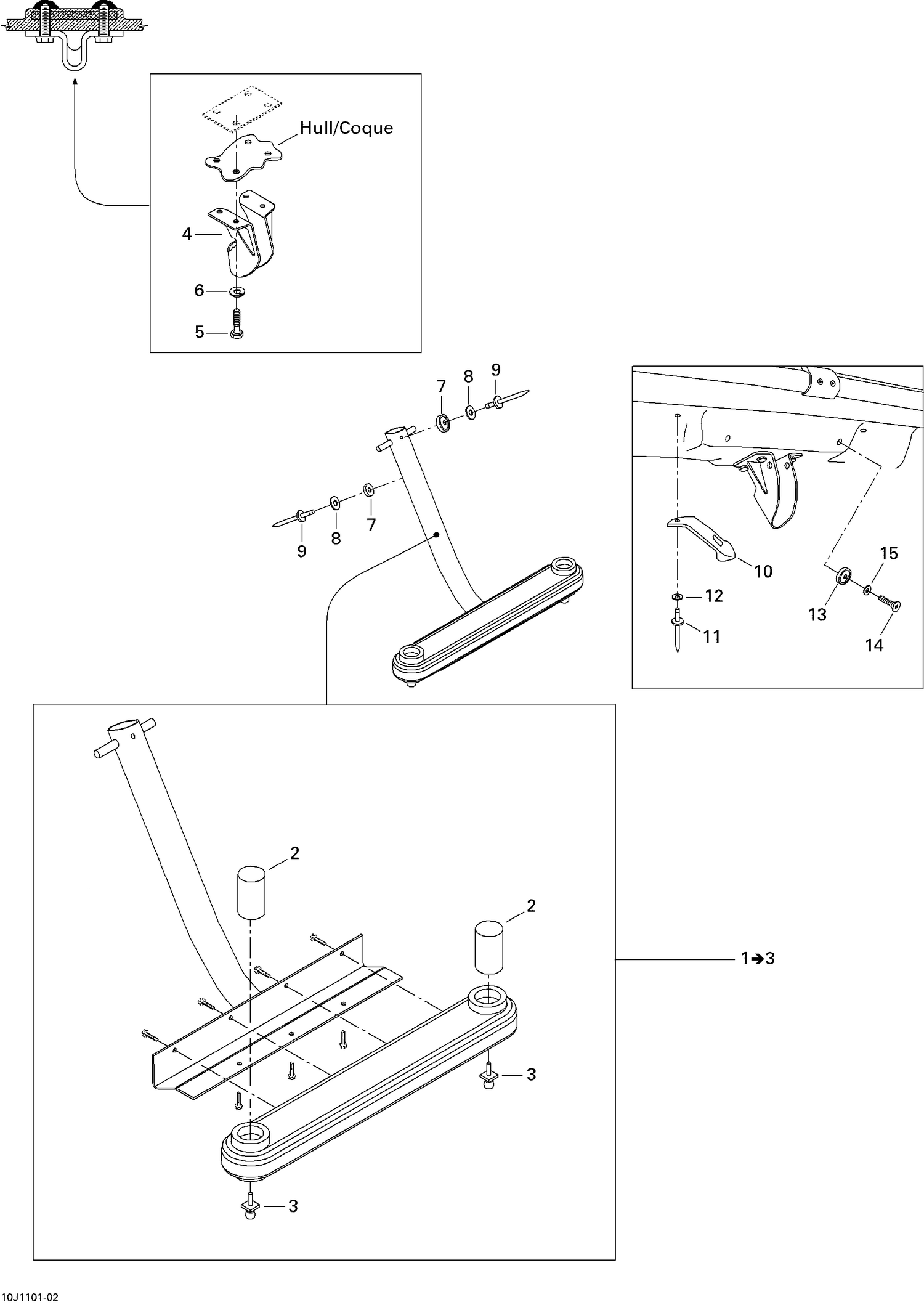

| Ref | Part Number | Description |
|---|
| 2 |
204061105 |
CAP - Call your local BRP dealership |
| 3 |
204061106 |
Retaining Knob |
| 4 |
204061080 |
LADDER BRACKET - Call your local BRP dealership |
| 5 |
207183060 |
Hex. Screw M8 X 30 |
| 6 |
234180602 |
Lock Spring Washer 8 mm, Stainless |
| 7 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 8 |
234051600 |
Flat Washer M5, Stainless |
| 9 |
293150055 |
RIVET_POP 3/16 - Call your local BRP dealership |
| 10 |
570027100 |
Hood Latch |
| 11 |
293150013 |
Pop Rivet 3/16" |
| 12 |
234052600 |
Flat Washer 5 mm, Stainless |
| 13 |
204073815 |
BUMPER PAD - Call your local BRP dealership This part replaces 204070760. |
| 14 |
204100147 |
PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership |
