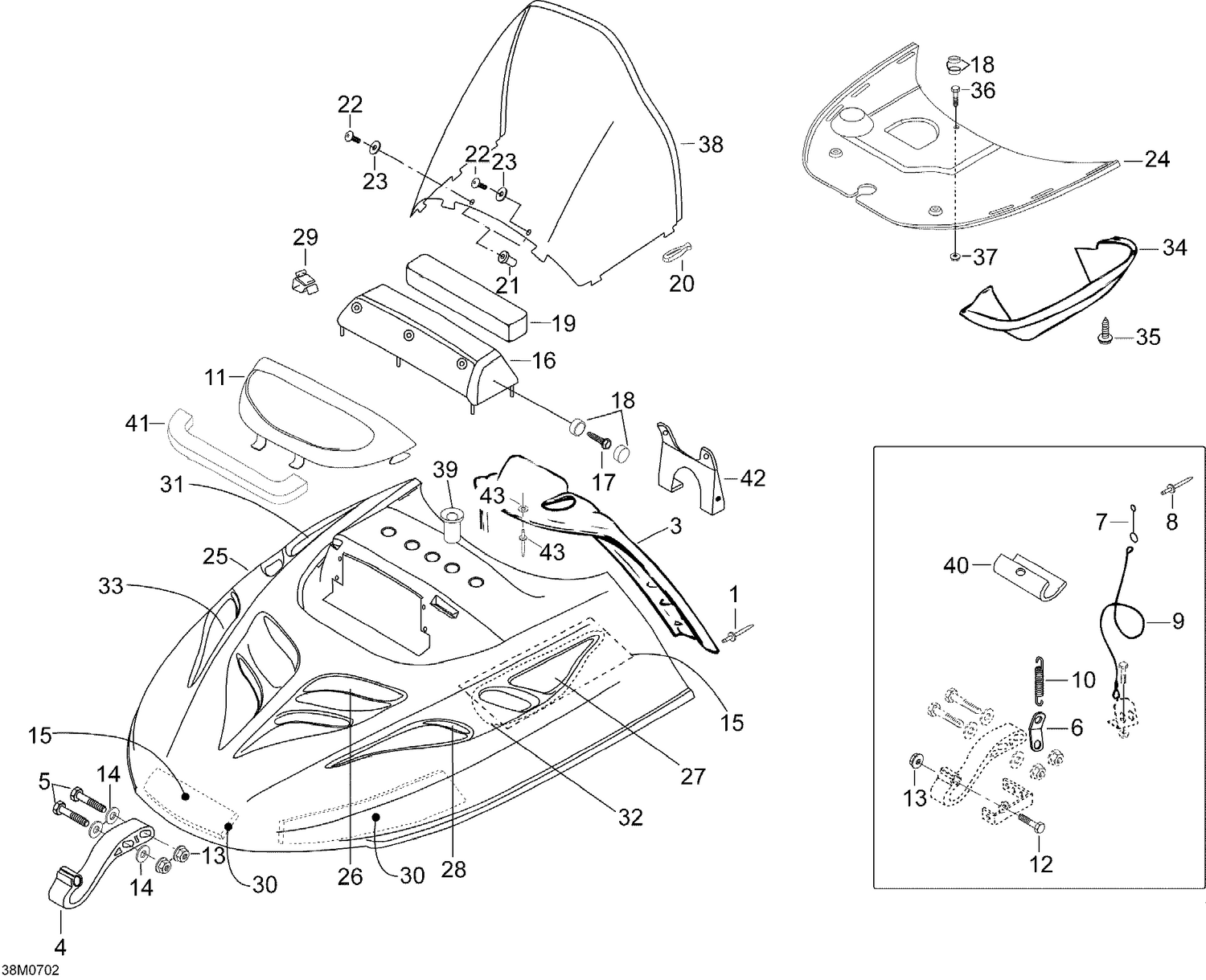

| Ref | Part Number | Description |
|---|
| 1 |
M36036 |
Black, Rivet |
| 2 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 3 |
605148420 |
Dash |
| 4 |
5343075 |
Hinge This part replaces M5343075. |
| 5 |
M40193 |
SCREW - Call your local BRP dealership |
| 6 |
M5443123 |
SPRING PLATE - Call your local BRP dealership |
| 7 |
M5446948 |
CABLE-KEEPER - Call your local BRP dealership |
| 8 |
36005 |
Rivet This part replaces M36005. |
| 9 |
M5342674 |
Retainer Cable |
| 10 |
5442675 |
Spring This part replaces M5442675. |
| 11 |
605252351 |
LAMP MOLDING - Call your local BRP dealership |
| 12 |
M40084 |
SCREW M6 X 45 - Call your local BRP dealership |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 14 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 15 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001. |
| 16 |
605149010 |
INTAKE COVER - Call your local BRP dealership |
| 17 |
M40901 |
SCREW-HEX. - Call your local BRP dealership |
| 18 |
M282000 |
COVER - Call your local BRP dealership |
| 19 |
605349056 |
FILTER - Call your local BRP dealership |
| 20 |
570023800 |
Windshield Latch |
| 21 |
28055 |
Well-Nut S M5 X 14 (1=10Pcs) This part replaces M28055. |
| 22 |
M40156 |
Screw |
| 23 |
20008 |
Washer 5,3 mm This part replaces M20008. |
| 24 |
M5246742 |
Air Duct |
| 26 |
M5142669 |
Front Grill |
| 27 |
M5242671 |
RH UPPER GRILL - Call your local BRP dealership |
| 27 |
M5242899 |
LH Upper Grill |
| 28 |
M5242672 |
RH Lower Grill |
| 28 |
M5342673 |
LH Lower Grill |
| 29 |
414227300 |
Clip |
| 30 |
414631900 |
Acoustic Foam |
| 31 |
M5342990 |
RH Cover |
| 32 |
M5343408 |
LH Cover |
| 33 |
M5343409 |
Fan Cover |
| 34 |
XXX |
Not Available As Spare Parts |
| 35 |
XXX |
Not Available As Spare Parts |
| 36 |
M40179 |
Screw M5X25 |
| 37 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 38 |
M5147892 |
WINDSHIELD - Call your local BRP dealership |
| 39 |
605449084 |
SHORT TUBE - Call your local BRP dealership |
| 40 |
605450205 |
SUPPORT - Call your local BRP dealership |
| 41 |
605349151 |
HEADLIGHT FOAM SEAL - Call your local BRP dealership |
| 42 |
XXX |
Not Available As Spare Parts |
