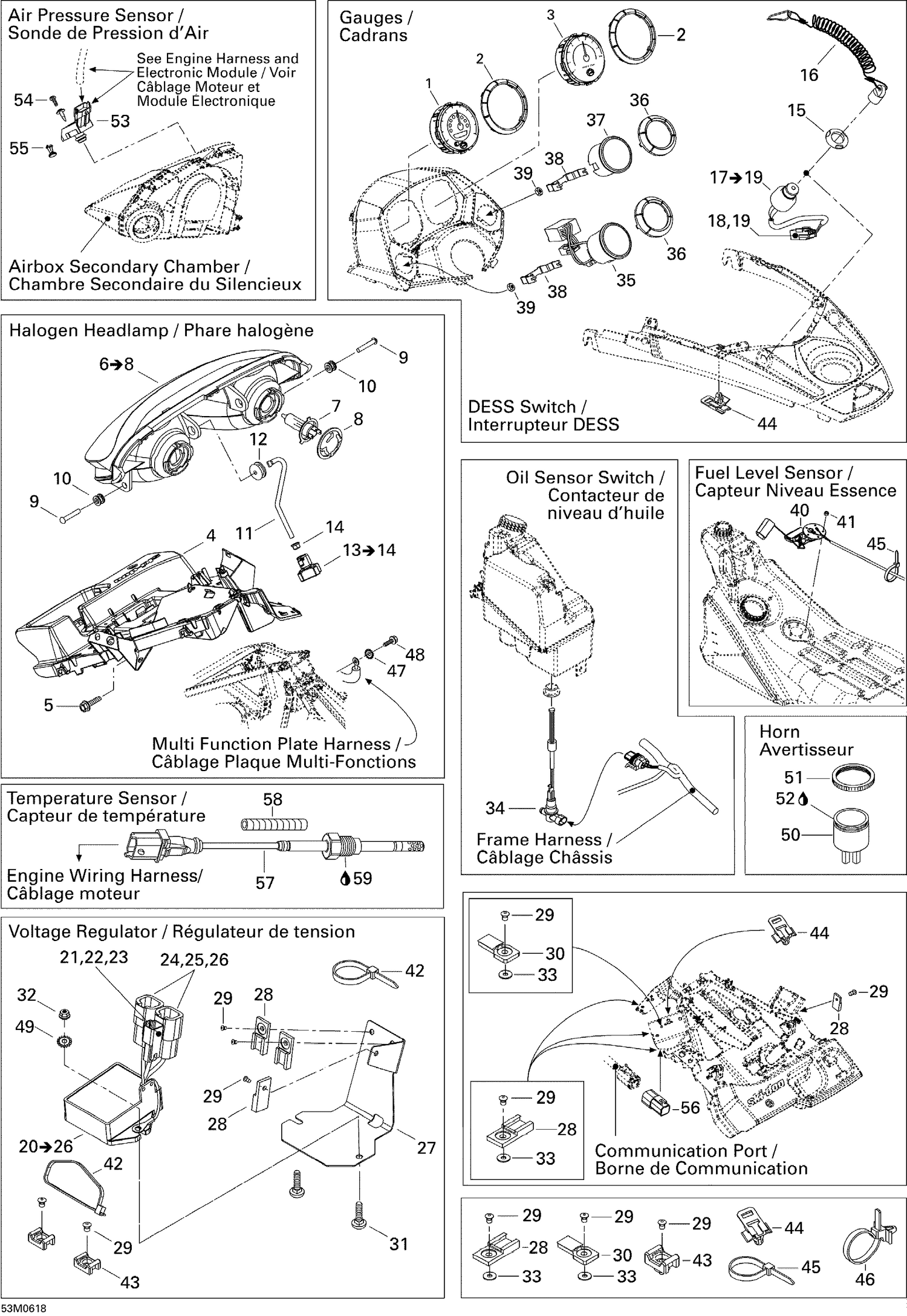

| Ref | Part Number | Description |
|---|
| 1 |
515176302 |
SPEEDOMETER - Call your local BRP dealership |
| 2 |
515179005 |
Gauge Ring This part replaces 515176242. |
| 3 |
515176303 |
TACHOMETER - Call your local BRP dealership |
| 4 |
515176104 |
MULTI FUNCTION PLATE - Call your local BRP dealership |
| 5 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 7 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 |
515176385 |
BULB HOLDER - Call your local BRP dealership |
| 9 |
293150128 |
RIVET M6 X 35 - Call your local BRP dealership |
| 10 |
515175760 |
HEADLAMP BUSHING - Call your local BRP dealership |
| 11 |
515175521 |
ADJUSTER ROD - Call your local BRP dealership |
| 12 |
415100800 |
Grommet - Call your local BRP dealership |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 16 |
515178284 |
DESS This part replaces 515176446. |
| 18 |
515175232 |
Male Terminal |
| 19 |
515175494 |
Male Housing, 3 Circuits |
| 21 |
409206900 |
Male Housing, 2 Circuits |
| 22 |
278000631 |
Male Terminal |
| 23 |
409207500 |
Male Lock, 2 Circuits |
| 24 |
278000635 |
Female Housing, 4 Circuits |
| 25 |
515175568 |
Male Terminal |
| 26 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 27 |
515176167 |
Housing Support |
| 28 |
270000141 |
Clip This part replaces 515175917. |
| 29 |
293150037 |
Avdel Rivet 3/16" |
| 30 |
515176209 |
DEUTSCH GRAY CLIP - Call your local BRP dealership |
| 31 |
207762544 |
Carriage Bolt M6 X 25 |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
517225900 |
Flat Washer |
| 34 |
515176327 |
OIL LEVEL SENSOR - Call your local BRP dealership |
| 35 |
515176214 |
Temperature Gauge |
| 36 |
515176216 |
RING GAUGE - Call your local BRP dealership |
| 37 |
515176215 |
FUEL GAUGE - Call your local BRP dealership |
| 38 |
515176235 |
HOLDER CASE - Call your local BRP dealership |
| 39 |
515176236 |
LOCK NUT - Call your local BRP dealership |
| 40 |
515176213 |
FUEL LEVEL SENSOR - Call your local BRP dealership |
| 41 |
232551414 |
Elastic Stop Nut M5 |
| 42 |
293750008 |
Tie Wrap 368 mm |
| 43 |
515176795 |
Tie Rap Mount (screwable) This part replaces 293750031. |
| 44 |
515175283 |
Housing Support |
| 45 |
293750002 |
Tie Wrap 142 mm |
| 45 |
414115200 |
Tie-Rap 180 mm |
| 45 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 46 |
293750009 |
Tie-Rap 173 mm |
| 47 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 48 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 49 |
250200041 |
Lock Washer Serrated M6 |
| 50 |
515176035 |
HORN - Call your local BRP dealership |
| 51 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 52 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 53 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 54 |
414745900 |
Tuflock Phillips Plastic Screw |
| 55 |
508000465 |
CAP - Call your local BRP dealership |
| 56 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 57 |
515176132 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 58 |
219704425 |
Tubing 6 Mm 3000Mm Long |
