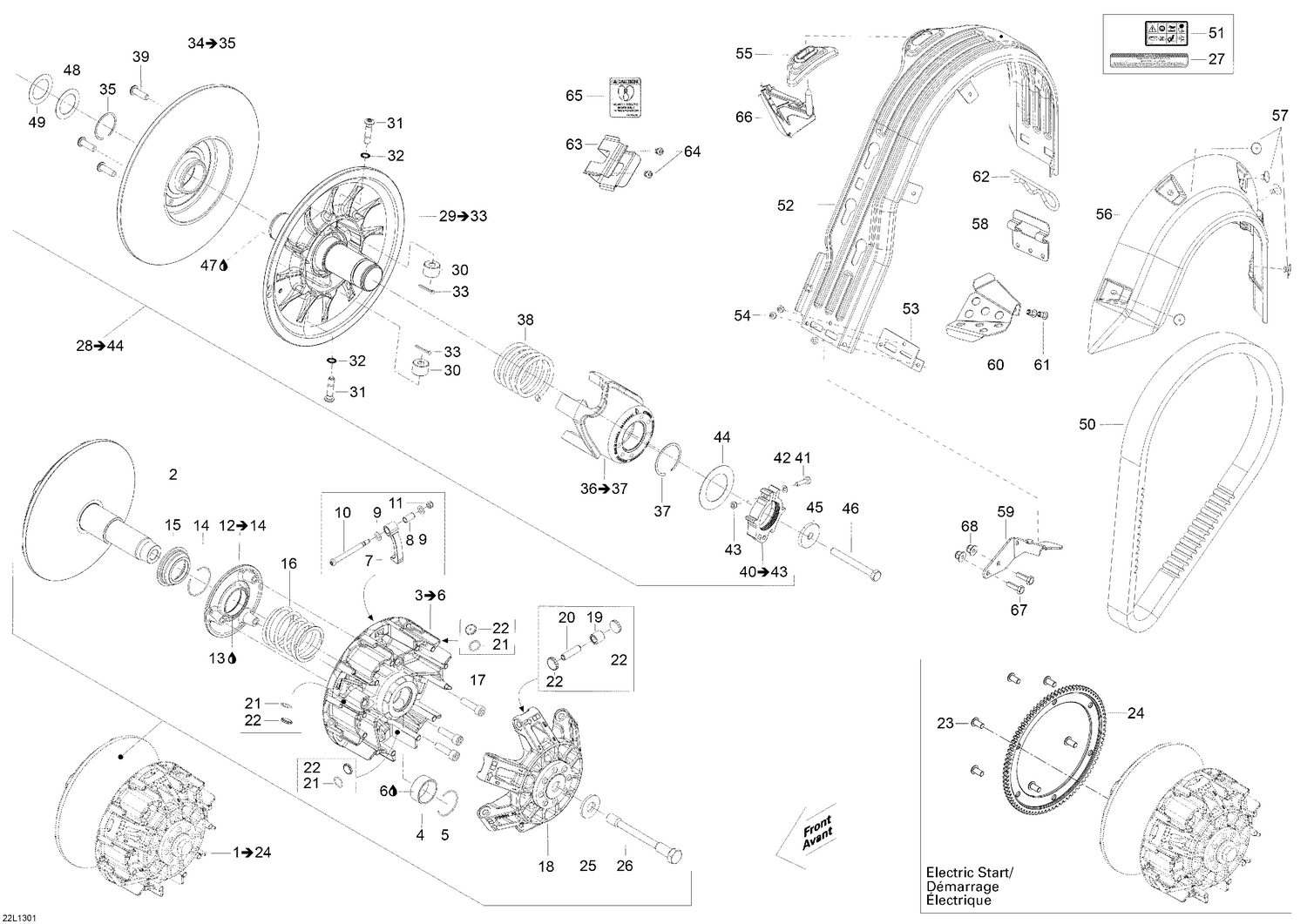

05- Pulley System
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417223534 | Fixe Flange Ass'y |
| 5 | 293370065 | Circlip |
| 6 | 619600012 | Loctite 609, 50ml |
| 7 | 417223604 | Ramp |
| 9 | 417223255 | Washer |
| 10 | 417223694 | Axle Ramp |
| 11 | 232551414 | Elastic Stop Nut M5 |
| 13 | 619600012 | Loctite 609, 50ml |
| 14 | 293370063 | CIRCLIP - Call your local BRP dealership |
| 15 | 417223155 | SPRING SEAT - Call your local BRP dealership |
| 16 | 417223315 | Spring, Red / Yellow (356-756N) |
| 17 | 250000473 | SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership |
| 18 | 417223778 | GOVERNOR CUP ASS'Y - Call your local BRP dealership This part replaces 417223565. |
| 19 | 417223767 | Roller |
| 20 | 417223257 | Roller Axle |
| 21 | 293300145 | O-Ring |
| 22 | 417223919 | Slider Shoe This part replaces 417223269. |
| 23 | 250000751 | Screw-Torx Button Head M8 X 16 S.Grip This part replaces 250000243. |
| 24 | 417223476 | Gear Ring |
| 25 | 250200006 | Spring Washer |
| 26 | 417300407 | DRIVE BOLT PULLEY - Call your local BRP dealership |
| 27 | 516005503 | Decal |
| 30 | 417127189 | Roller |
| 31 | 417127294 | Stud |
| 32 | 250200009 | Lock Washer 8mm |
| 33 | 250400061 | Spring Pin 3 x 18 |
| 35 | 293370049 | Spacer (1.91/2.21mm) |
| 37 | 293370049 | Spacer (1.91/2.21mm) |
| 38 | 417127243 | Spring, White / White (476-705N) |
| 39 | 250000283 | Torx Screw M8 x 25, Scotch Grip |
| 41 | 205052544 | Socket Head Screw M10 x 1.5 |
| 42 | 234051410 | Flat Washer M5 |
| 43 | 232551414 | Elastic Stop Nut M5 |
| 44 | 417127155 | Washer |
| 45 | 517302322 | Strength Washer |
| 46 | 207287544 | Hex. Cap Screw M8 x 75 |
| 47 | 619600013 | Loctite 8151 (Antiseize), 400ml Spray |
| 50 | 414860700 | Drive Belt |
| 51 | 516003919 | Warning Label |
| 52 | 417300382 | Belt Guard |
| 53 | 417300380 | Reinforcement |
| 54 | 390909200 | Avex Rivet |
| 55 | 417300381 | Guide |
| 56 | 417300356 | Side Protector |
| 57 | 293150103 | Pop Rivet 3/16 |
| 58 | 417300363 | Belt Guard Bracket |
| 59 | 417300451 | BELT GUARD BRACKET - Call your local BRP dealership |
| 60 | 518325626 | Brake Hose Cover |
| 61 | 293150163 | Rivet Hucklok |
| 62 | 114045200 | Hair Pin |
| 63 | 517281905 | Drive Belt Bracket |
| 64 | 390909100 | Avex Rivet |
| 65 | 516007493 | Belt Decal This part replaces 516005511. |
| 66 | 512060924 | Support Coils This part replaces 512060745. |
| 67 | 207162044 | Screw M6 x 20 |
