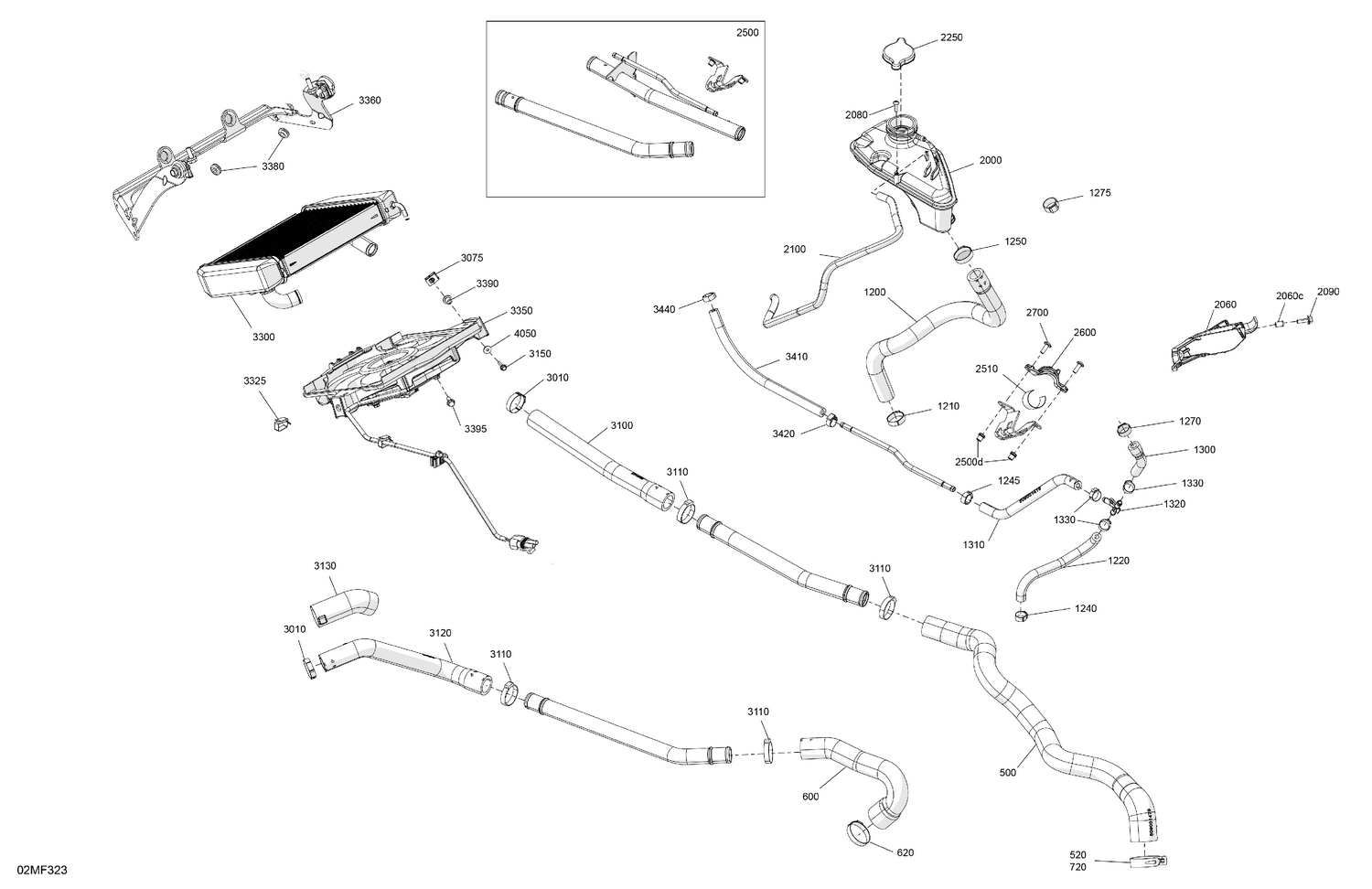

02- Engine - Cooling
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001479 | Hose |
| 520 | 293650264 | Norma Spring Clamp |
| 600 | 509001477 | Hose |
| 620 | 293650306 | Oetiker Clamp |
| 720 | 293650264 | Norma Spring Clamp |
| 1200 | 509001478 | Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509001416 | Coolant Hose |
| 1240 | 293650046 | Oetiker Clamp |
| 1245 | 293650025 | Oetiker Gear Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1270 | 293650030 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 1300 | 509001417 | Coolant Hose |
| 1310 | 509001418 | Coolant Hose |
| 1320 | 293710140 | Y-Fitting |
| 1330 | 293650025 | Oetiker Gear Clamp |
| 2000 | 509001314 | Coolant Tank |
| 2060c | 293450267 | Insert M5 - 0.8 |
| 2080 | 250000759 | Torx Truss Pt K40 X 16 |
| 2090 | 207651646 | Hex. Flange Screw M5 X 16 |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500d | 293450268 | Insert M5 X 0.8 |
| 2510 | 512061214 | Protector |
| 2600 | 509001379 | Clamp |
| 2700 | 250000742 | Torx Screw M5 X 14 |
| 3010 | 293650099 | Crimp Clamp |
| 3075 | 250100208 | Panel Nut M6 X 1.0 |
| 3100 | 509001459 | Hose |
| 3110 | 293650331 | Crimp Clamp |
| 3120 | 509001458 | Hose |
| 3130 | 707001349 | Protector Tube |
| 3150 | 207562544 | Hex. Flange Screw M6 X 25 |
| 3300 | 509001464 | Radiator |
| 3325 | 710010204 | Clip |
| 3350 | 509001301 | Fan Ass'y |
| 3360 | 509001046 | Support |
| 3380 | 293720130 | Overmolded Grommet |
| 3390 | 293900151 | Bushing |
| 3395 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3410 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 3420 | 293650025 | Oetiker Gear Clamp |
| 3440 | 293650042 | Oetiker Clamp |
