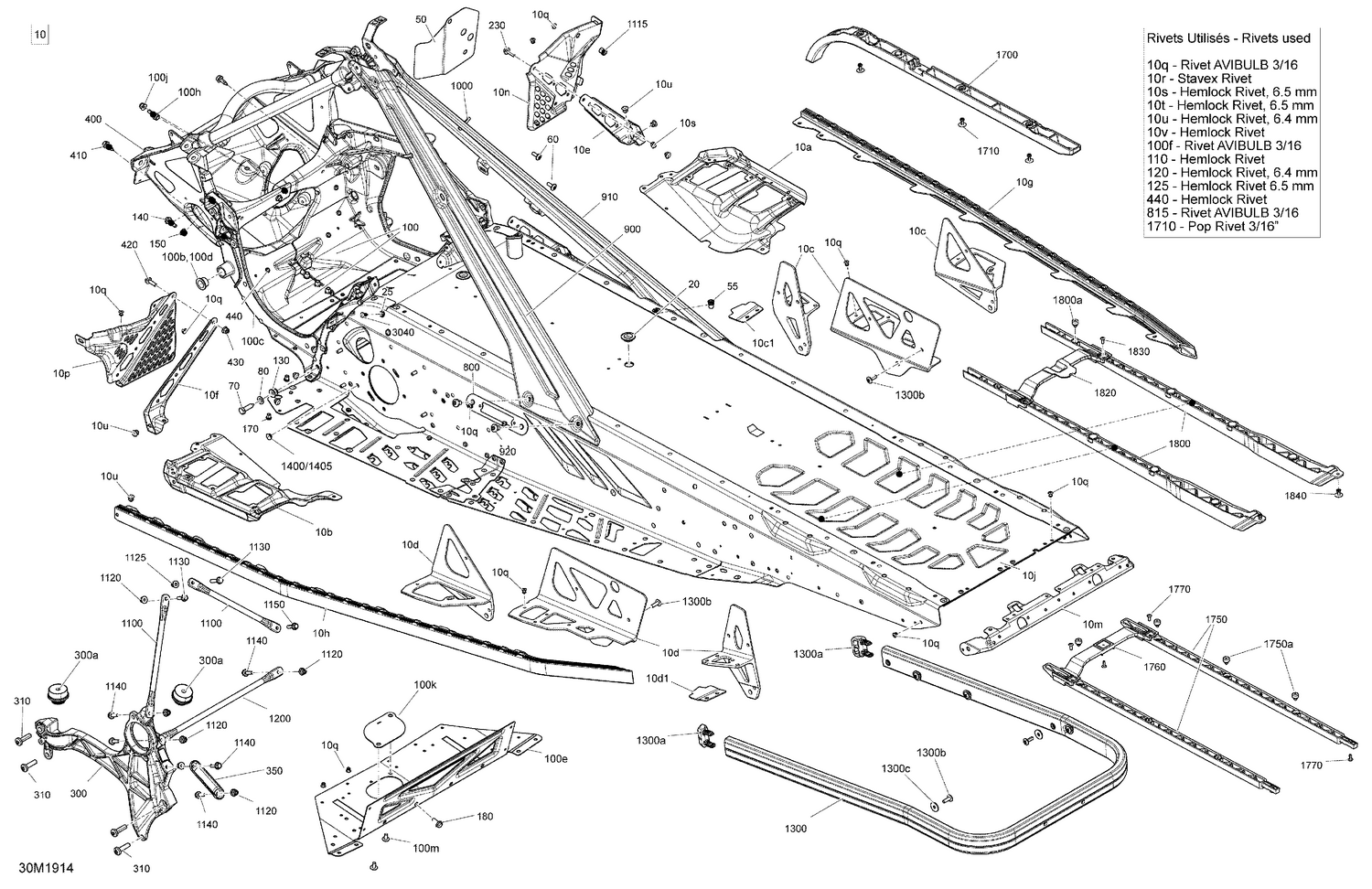

| Ref | Part Number | Description |
|---|
| 10a |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10b |
518331523 |
Deep Black, LH Footrest Reinforcement This part replaces 518330737. |
| 10c |
518329627 |
RH Suspension Bracket |
| 10d |
518329628 |
LH Suspension Bracket |
| 10e |
518330072 |
RH Footrest Reinforcement |
| 10f |
518331560 |
Deep Black, LH Chasssis Reinforcement This part replaces 518329049. |
| 10g |
518329648 |
RH Roller |
| 10h |
518328452 |
LH Roller |
| 10j |
518334488 |
Radiator Tunnel 137 Ass'y This part replaces 415130269. |
| 10k |
250300027 |
Clinch Stud M6 X 20 |
| 10m |
518328990 |
Rear Cap |
| 10n |
518330691 |
RH Footrest |
| 10p |
518330692 |
LH Footrest |
| 10q |
293150203 |
Rivet Avibulb 3/16 |
| 10r |
293150144 |
Stavex Rivet |
| 10s |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10t |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10u |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10v |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 20 |
293730052 |
Black, Plug |
| 25 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 30 |
506151252 |
Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100b |
505073317 |
Leg Cushion |
| 100d |
505073317 |
Leg Cushion |
| 100e |
518331661 |
Bottom Plate This part replaces 518330074. |
| 100f |
293150203 |
Rivet Avibulb 3/16 |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100j |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
293150120 |
Hemlock Rivet 6.5 mm |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 400 |
518334549 |
Chassis Suspension Module Ass'y This part replaces 518330573. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 420 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 800 |
518329480 |
Member Fixation Plate |
| 815 |
293150203 |
Rivet Avibulb 3/16 |
| 900 |
518336882 |
Deep Black, LH Rear Diagonal Cross Member This part replaces 518329077. |
| 910 |
518330880 |
Black, RH Member Ass'y |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1000 |
250300629 |
Stud M5 X 20 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1115 |
293450275 |
Insert |
| 1120 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1125 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1300b |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1300c |
224061201 |
Flat Washer |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1800a |
293830005 |
Rubber Bumper |
| 1820 |
520001545 |
Support |
| 1830 |
250000577 |
Torx Truss Screw K40 X 12 |
