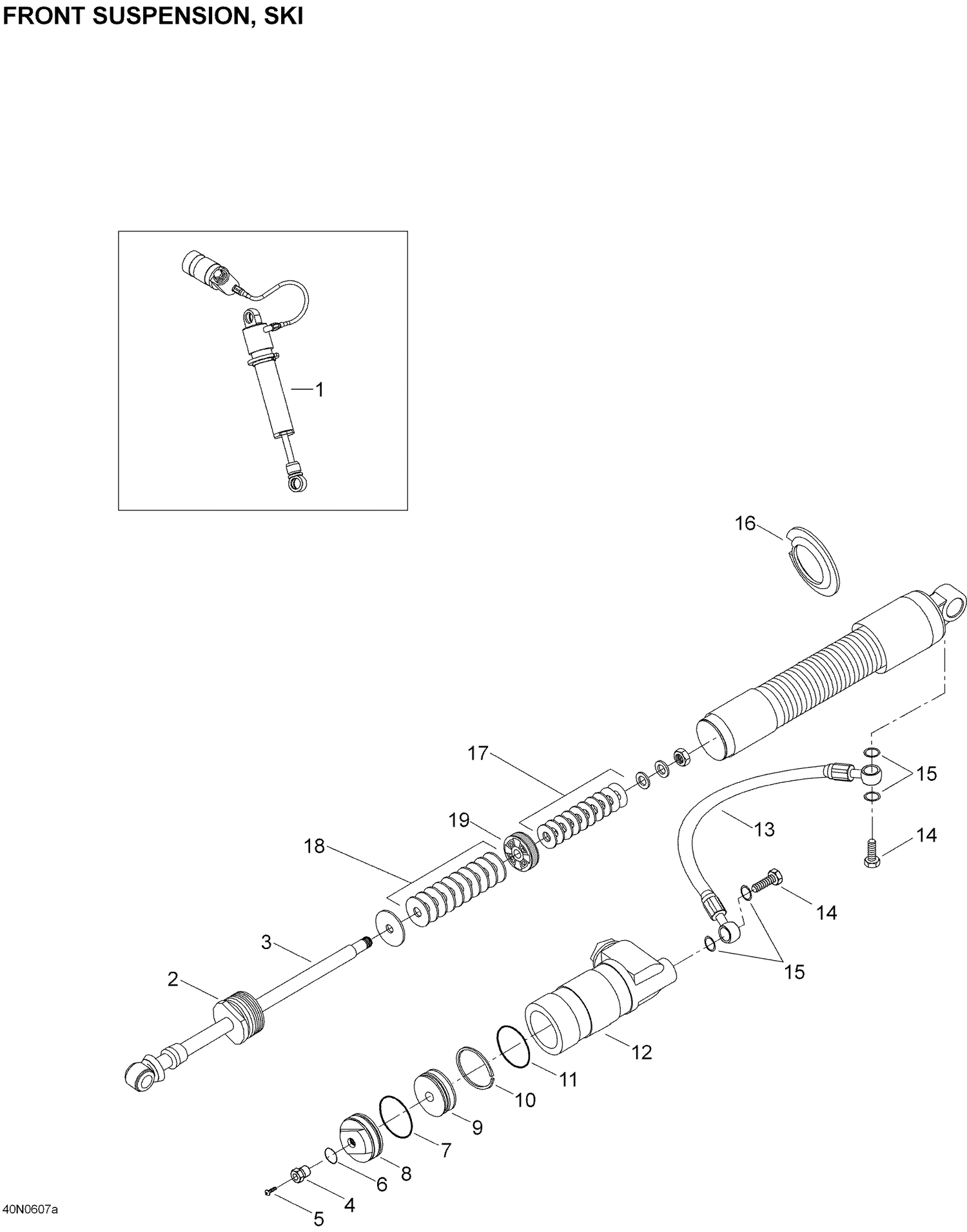

07- Take Apart Shock, Ski
Parts (93)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 619300004 | Seal carrier ass'y |
| 3 | 619300005 | Rod assy |
| 5 | 505070399 | Screw |
| 6 | 505070400 | O-Ring |
| 7 | 619300006 | Ring stop |
| 8 | 619300009 | Guide |
| 9 | 619300007 | Floating piston |
| 10 | 415093806 | Piston Ring |
| 11 | 415093807 | O-Ring |
| 12 | 415128596 | RESERVOIR - Call your local BRP dealership |
| 13 | 619300008 | Hose |
| 14 | 415093810 | Banjo-bolt |
| 15 | 415038700 | Washer |
| 16 | 415128598 | SPRING COLLAR - Call your local BRP dealership |
| 17 | 230015 | Leaf valve 18x0.114 |
| 17 | 230016 | Leaf valve 18x0.254 |
| 17 | 230017 | Leaf valve 20x0.254 |
| 17 | 230018 | Leaf valve 22x0.114 |
| 17 | 230019 | Leaf valve 22x0.254 |
| 17 | 230021 | Leaf valve 24x0.114 |
| 17 | 230022 | Leaf valve 24x0.152 |
| 17 | 230023 | Leaf valve 24x0.203 |
| 17 | 230024 | Leaf valve 26x0.114 |
| 17 | 230025 | Leaf valve 28x0.114 |
| 17 | 230026 | Leaf valve 28x0.254 |
| 17 | 414888318 | Leaf valve 30 x 0.203 |
| 17 | 414888319 | Leaf valve 30x0.152 |
| 17 | 414888320 | Leaf valve 28x0.203 |
| 17 | 414888321 | Leaf valve 28x0.152 |
| 17 | 414888322 | Leaf valve 26x0.203 |
| 17 | 414888323 | Leaf valve 26x0.152 |
| 17 | 414888324 | Leaf valve 22x0.203 |
| 17 | 414888325 | Leaf valve 22x0.152 |
| 17 | 414888326 | Leaf valve 20x0.203 |
| 17 | 414888327 | Leaf valve 20x0.152 |
| 17 | 414888328 | Leaf valve 20x0.114 |
| 17 | 414888329 | Leaf valve 18x0.203 |
| 17 | 414888330 | Leaf valve 18x0.152 |
| 17 | 414888331 | Leaf valve 16x0.254 |
| 17 | 414888332 | Leaf valve 16x0.203 |
| 17 | 414888333 | Leaf valve 16x0.152 |
| 17 | 414888334 | Leaf valve 15x0.254 |
| 17 | 414888335 | Leaf valve 15x0.203 |
| 17 | 414888336 | Leaf valve 15x0.152 |
| 17 | 414888337 | Leaf valve 15x0.114 |
| 17 | 414888338 | Leaf valve 12x0.203 |
| 17 | 414888339 | Leaf valve 12x0.152 |
| 17 | 415038800 | Leaf valve 12x0.114 |
| 17 | 415038900 | Leaf valve 16x0.114 |
| 17 | 415039000 | Leaf valve 26x0.254 |
| 17 | 415039100 | Leaf valve 30x0.254 |
| 17 | Not | Available As Spare Part - Leaf valve 13x0.152 |
| 18 | 230015 | Leaf valve 18x0.114 |
| 18 | 230016 | Leaf valve 18x0.254 |
| 18 | 230017 | Leaf valve 20x0.254 |
| 18 | 230018 | Leaf valve 22x0.114 |
| 18 | 230019 | Leaf valve 22x0.254 |
| 18 | 230021 | Leaf valve 24x0.114 |
| 18 | 230022 | Leaf valve 24x0.152 |
| 18 | 230023 | Leaf valve 24x0.203 |
| 18 | 230024 | Leaf valve 26x0.114 |
| 18 | 230025 | Leaf valve 28x0.114 |
| 18 | 230026 | Leaf valve 28x0.254 |
| 18 | 230121 | Leaf valve 17x0.203 |
| 18 | 414888318 | Leaf valve 30 x 0.203 |
| 18 | 414888319 | Leaf valve 30x0.152 |
| 18 | 414888320 | Leaf valve 28x0.203 |
| 18 | 414888321 | Leaf valve 28x0.152 |
| 18 | 414888322 | Leaf valve 26x0.203 |
| 18 | 414888323 | Leaf valve 26x0.152 |
| 18 | 414888324 | Leaf valve 22x0.203 |
| 18 | 414888325 | Leaf valve 22x0.152 |
| 18 | 414888326 | Leaf valve 20x0.203 |
| 18 | 414888327 | Leaf valve 20x0.152 |
| 18 | 414888328 | Leaf valve 20x0.114 |
| 18 | 414888329 | Leaf valve 18x0.203 |
| 18 | 414888330 | Leaf valve 18x0.152 |
| 18 | 414888331 | Leaf valve 16x0.254 |
| 18 | 414888332 | Leaf valve 16x0.203 |
| 18 | 414888333 | Leaf valve 16x0.152 |
| 18 | 414888334 | Leaf valve 15x0.254 |
| 18 | 414888335 | Leaf valve 15x0.203 |
| 18 | 414888336 | Leaf valve 15x0.152 |
| 18 | 414888337 | Leaf valve 15x0.114 |
| 18 | 414888338 | Leaf valve 12x0.203 |
| 18 | 414888339 | Leaf valve 12x0.152 |
| 18 | 415038800 | Leaf valve 12x0.114 |
| 18 | 415038900 | Leaf valve 16x0.114 |
| 18 | 415039000 | Leaf valve 26x0.254 |
| 18 | 415039100 | Leaf valve 30x0.254 |
| 19 | 230027 | Piston, 1 slits |
| 19 | 230028 | Piston, 3 slits |
| 19 | 414888305 | Mäntä, 2 slits |
