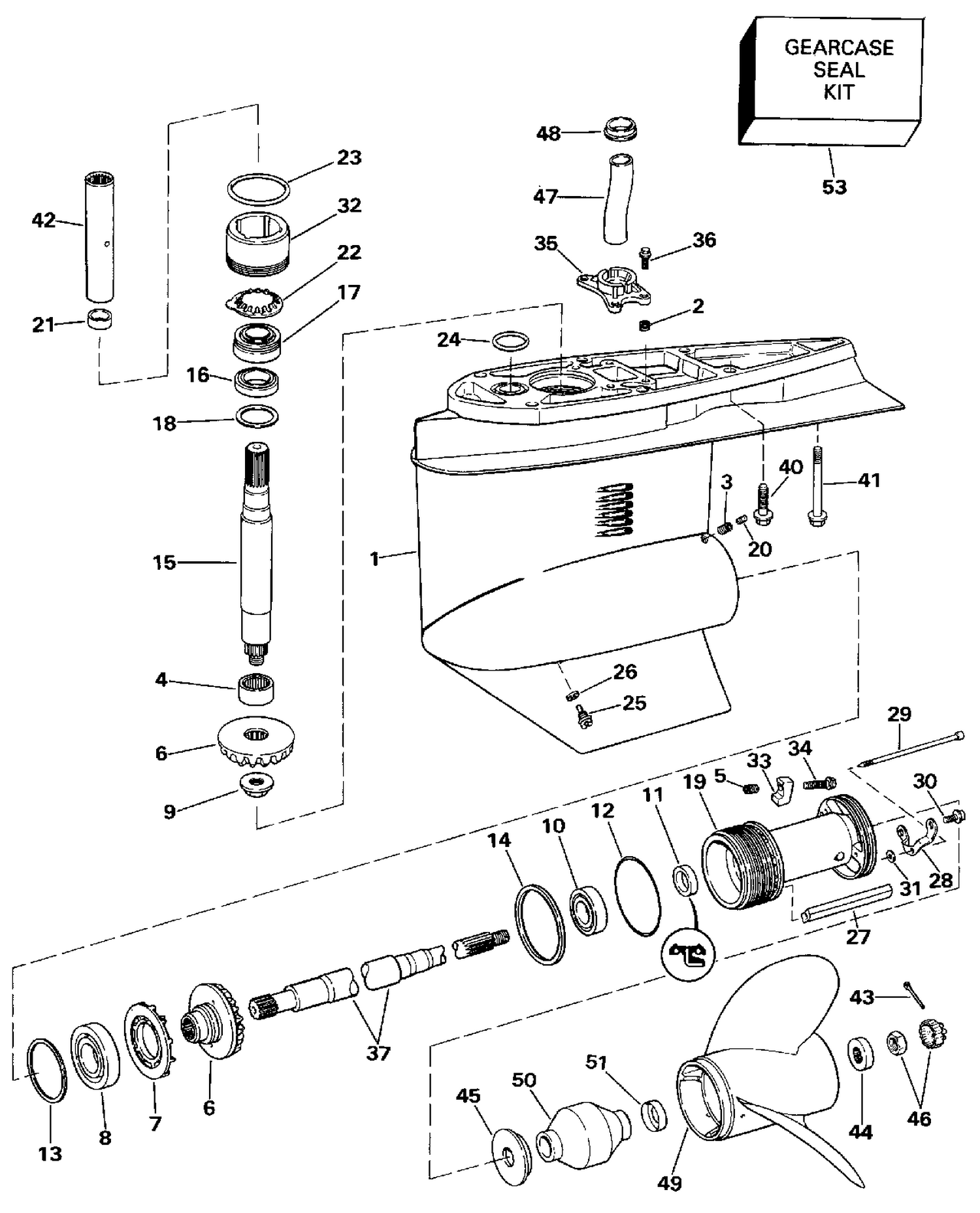

| Ref | Part Number | Description |
|---|
| 1 |
3854459 |
GEARCASE & BEARING This part replaces 0987510. |
| 2 |
0910901 |
INSERT |
| 3 |
3852567 |
INSERT This part replaces 0911858. |
| 4 |
3853934 |
BEARING, Pinion This part replaces 0986182. |
| 5 |
0910935 |
INSERT, 3/8-16 |
| 6 |
0987549 |
GEAR SET |
| 6 |
3850979 |
GEAR SET, 17:23 This part replaces 0987130. |
| 7 |
3853941 |
OIL SLINGER & PINS This part replaces 0986275. |
| 8 |
3850942 |
BEARING, Gear to gearcase This part replaces 0986211. |
| 9 |
3852861 |
NUT, Pinion to driveshaft This part replaces 0913842. |
| 10 |
3854249 |
BEARING, Driveshaft, lower This part replaces 0386768. |
| 11 |
3863090 |
Seal This part replaces 0915223. |
| 12 |
3852865 |
O-RING, Propeller shaft hsg. This part replaces 0913849. |
| 13 |
0913870 |
SHIM, Gear position, 0.004" |
| 13 |
0913871 |
SHIM, Gear position, 0.003" |
| 13 |
0913872 |
SHIM, Gear position, 0.005" |
| 13 |
0913873 |
SHIM, Gear position, 0.010" |
| 14 |
3852868 |
RING, Shim, 0.100 in. This part replaces 0913852. |
| 14 |
3852869 |
RING, Shim, 0.102 in. This part replaces 0913853. |
| 14 |
3852870 |
RING, Shim, 0.104 in. This part replaces 0913854. |
| 14 |
3852871 |
RING, Shim, 0.106 in. This part replaces 0913855. |
| 14 |
3852872 |
RING, Shim, 0.108 in. This part replaces 0913856. |
| 14 |
3852873 |
RING, Shim, 0.110 in. This part replaces 0913857. |
| 14 |
3852874 |
RING, Shim, 0.112 in. This part replaces 0913858. |
| 14 |
3852875 |
RING, Shim, 0.114 in. This part replaces 0913859. |
| 14 |
3852876 |
RING, Shim, 0.116 in. This part replaces 0913860. |
| 14 |
3852877 |
RING, Shim, 0.118 in. This part replaces 0913861. |
| 14 |
3852878 |
RING, Shim, 0.120 in. This part replaces 0913862. |
| 14 |
3852879 |
RING, Shim, 0.122 in. This part replaces 0913863. |
| 14 |
3852880 |
RING, Shim, 0.124 in. This part replaces 0913864. |
| 14 |
3852881 |
RING, Shim, 0.096 in. This part replaces 0913865. |
| 14 |
3852882 |
RING, Shim, 0.098 in. This part replaces 0913866. |
| 15 |
3852884 |
DRIVESHAFT, Lower This part replaces 0913868. |
| 16 |
3854249 |
BEARING, Driveshaft, lower This part replaces 0386768. |
| 17 |
3854250 |
BEARING, Driveshaft, upper This part replaces 0979986. |
| 18 |
3852889 |
SHIM, Pinion position, 0.003 in. This part replaces 0913874. |
| 18 |
3852890 |
SHIM, Pinion position, 0.004 in. This part replaces 0913875. |
| 18 |
3852891 |
SHIM, Pinion position, 0.005 in. This part replaces 0913876. |
| 18 |
3852892 |
SHIM, Pinion position, 0.010 in. This part replaces 0913877. |
| 19 |
3858051 |
Housing This part replaces 0915266. |
| 20 |
3853272 |
SET SCREW, Prop shaft housing This part replaces 0914559. |
| 21 |
3852863 |
SUPPORT, Driveshaft This part replaces 0913847. |
| 22 |
3852862 |
WASHER, Retaining This part replaces 0913845. |
| 23 |
3852866 |
O-RING, Support housing This part replaces 0913850. |
| 24 |
3852959 |
O-RING, Oil passage This part replaces 0914023. |
| 27 |
3852970 |
ANODE, Prop shaft housing This part replaces 0914040. |
| 28 |
0914041 |
RETAINER, Anode |
| 29 |
0914042 |
SCREW, Anode |
| 30 |
0914673 |
SCREW, Anode retainer |
| 31 |
3852973 |
WASHER, Anode This part replaces 0914043. |
| 32 |
3852883 |
RETAINER, Driveshaft This part replaces 0913867. |
| 33 |
3853371 |
RETAINER, Prop shaft housing This part replaces 0914931. |
| 34 |
3852478 |
SCREW, Prop shaft retainer This part replaces 0909937. |
| 35 |
3853932 |
GUIDE & SEAL, Water tube This part replaces 0986176. |
| 36 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 37 |
3854083 |
PROPELLER SHAFT This part replaces 0987218. |
| 40 |
3852867 |
SCREW, Lower to upper housing This part replaces 0913851. |
| 42 |
3852902 |
DRIVESHAFT, Intermediate This part replaces 0913888. |
| 47 |
3852963 |
TUBE, Water supply This part replaces 0914029. |
| 48 |
0911705 |
GUIDE, Water tube |
| 49 |
0174811 |
PROPELLER, 14 1/2 x 19 OMC Viper |
| 49 |
0174812 |
PROPELLER, 14 1/2 X 21 OMC Viper |
| 49 |
0174813 |
LH Viper 14 1/4 x 23 |
| 49 |
0174814 |
PROPELLER, 14 1/2 x 19 OMC Viper |
| 49 |
0174815 |
PROPELLER, 14 1/2 x 21 OMC Viper |
| 49 |
0174816 |
PROPELLER, 14 1/2 x 23 OMC Viper |
| 49 |
0174889 |
PROPELLER, 15 x 17 OMC Viper |
| 49 |
0174890 |
PROPELLER 15 x 17 OMC Viper |
| 49 |
0174926 |
PROPELLER, 15 X 15 SST |
| 49 |
0174927 |
PROPELLER, 15 x 15 SST |
| 49 |
0175575 |
PROPELLER, 16 1/2 x 17, 4-blade |
| 49 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 49 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 49 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 49 |
0390821 |
PROPELLER, 14 1/2 x 19 SST II |
| 49 |
0390822 |
PROPELLER 14-1/4 X 21 |
| 49 |
0390823 |
PROPELLER 14-1/4 X 23 |
| 49 |
0391290 |
PROP, 15 x 17 SST |
| 49 |
0394752 |
PROPELLER, 14 1/2 x 18 OMC Raker |
| 49 |
0394753 |
PROPELLER, 14 1/2 x 20 OMC Raker |
| 49 |
0394754 |
PROPELLER, 14 1/2 x 22 OMC Raker |
| 49 |
0394755 |
PROPELLER, 13 1/2 X 24 OMC RAKER |
| 49 |
0394756 |
PROPELLER, 14 1/2 x 26 OMC Raker |
| 49 |
0394757 |
PROPELLER, 14 1/2 x 28 OMC Raker |
| 49 |
0398502 |
PROPELLER, 14 1/2 X 20 RACKER |
| 49 |
0398503 |
LH Raker 14 1/2 x 22 |
| 49 |
0398504 |
LH Raker 14 1/2 x 24 |
| 49 |
0398505 |
LH Raker 14 1/2 x 26 |
| 49 |
0398506 |
LH Raker 14 1/2 x 28 |
| 49 |
0431930 |
PROPELLER, 15 x 17 SSS II |
| 0987246 |
3854659 |
GEARCASE ASSY., 17:23 This part replaces 0987246. |
| 0987554 |
0987554 |
GEARCASE ASSY., 17:21 |
