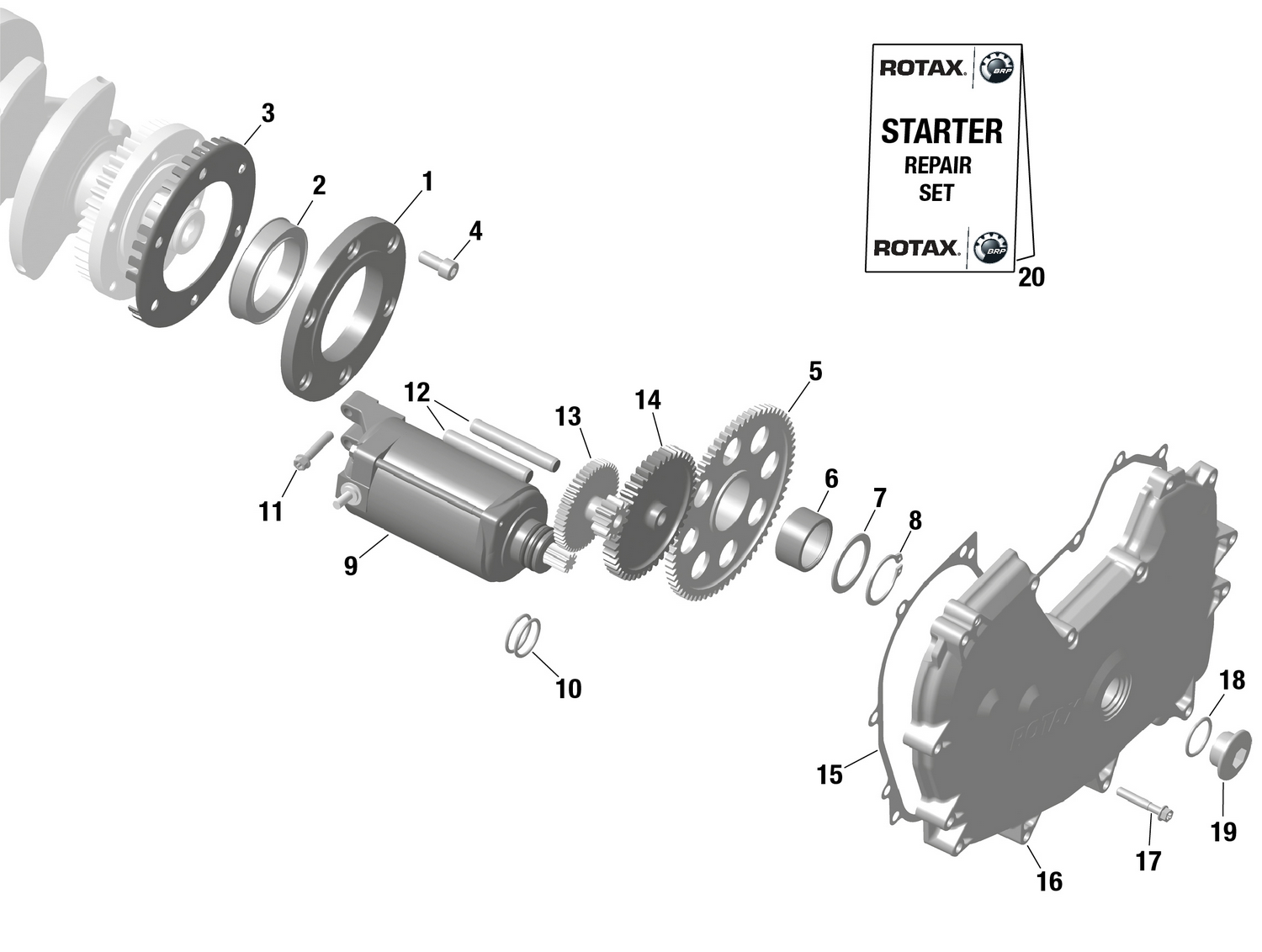

01- ROTAX - E-Starter
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420458012 | Sprag Clutch Housing |
| 2 | 420659119 | Sprag Clutch |
| 3 | 420266773 | Trigger Wheel |
| 4 | 420641509 | Socket Head Screw M8 X1 8 |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 420427111 | Thrust Washer |
| 8 | 420945720 | Circlip |
| 10 | 420250145 | O-Ring |
| 11 | 420440647 | Torx Flange Screw M6 X 30 |
| 12 | 420229472 | Pin Cylindrical |
| 13 | 420435382 | Double Gear |
| 14 | 420435391 | Gear 44T |
| 15 | 420450010 | Gasket |
| 16 | 420210296 | Valve Train Cover |
| 17 | 420440274 | Torx Flange Screw M6 X 35 |
| 18 | 420430783 | O-Ring |
| 19 | 420241635 | Plug Screw M24 X 1.5 |
