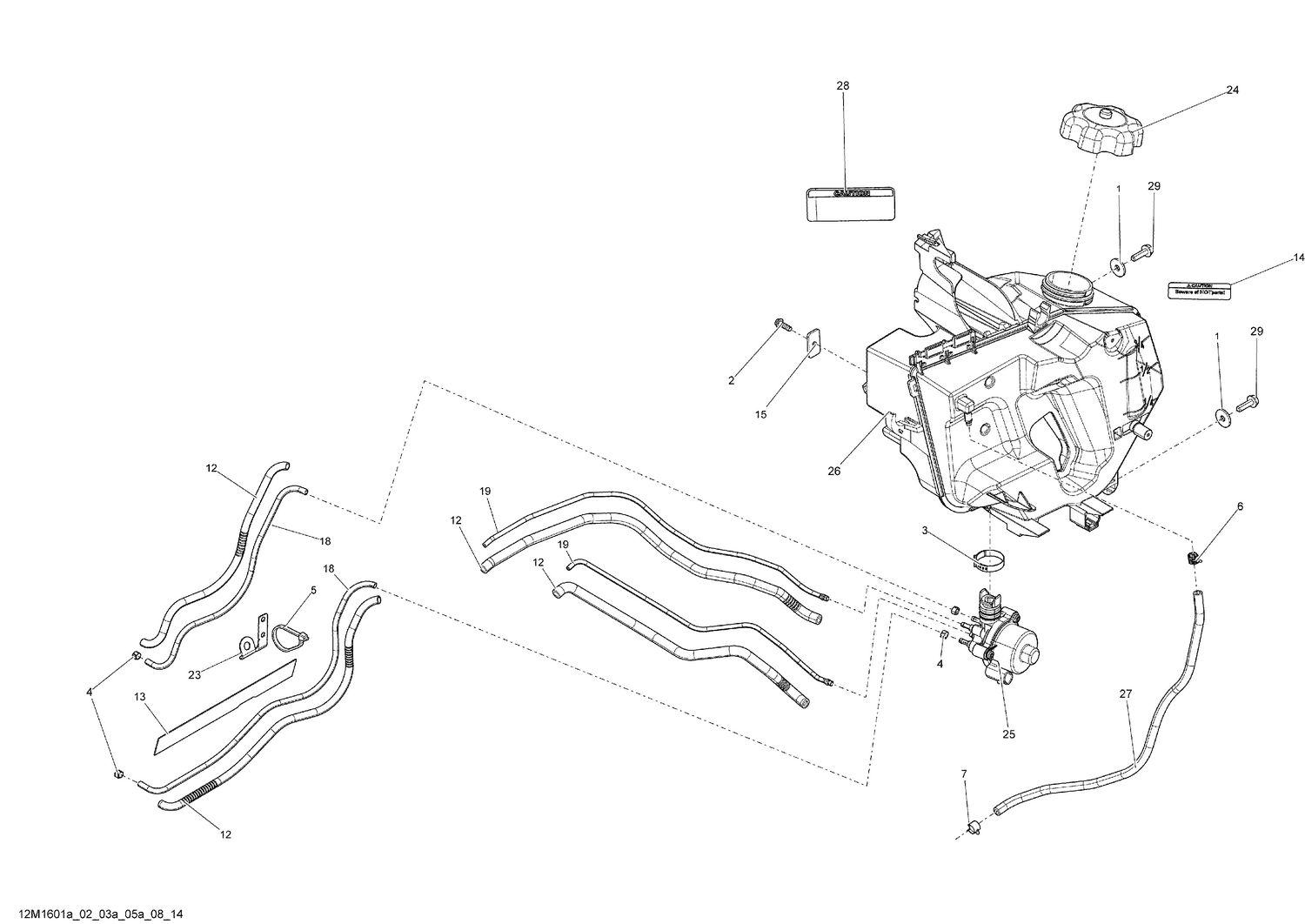

02- Oil System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 224061201 | Flat Washer |
| 2 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 3 | 293650099 | Crimp Clamp |
| 4 | 293650100 | Oetiker Clamp |
| 5 | 293750002 | Tie Wrap 142 mm |
| 6 | 414420700 | Spring Clamp |
| 7 | 414554800 | Spring Clamp |
| 12 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 13 | 516004648 | Protection Decal / Lexan |
| 15 | 519000179 | Bracket |
| 18 | 219704429 | HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 19 | 219704430 | HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership |
| 23 | 519000245 | Bracket |
| 24 | 519000273 | Cap |
| 25 | 519000376 | Pump_Hydraulic This part replaces 519000305. |
| 26 | 519000311 | Oil Tank |
| 27 | 219704410 | Polyurethane Hose 10000Mm Long |
| 28 | 516008439 | Oil Warning Decal This part replaces 516007443. |
