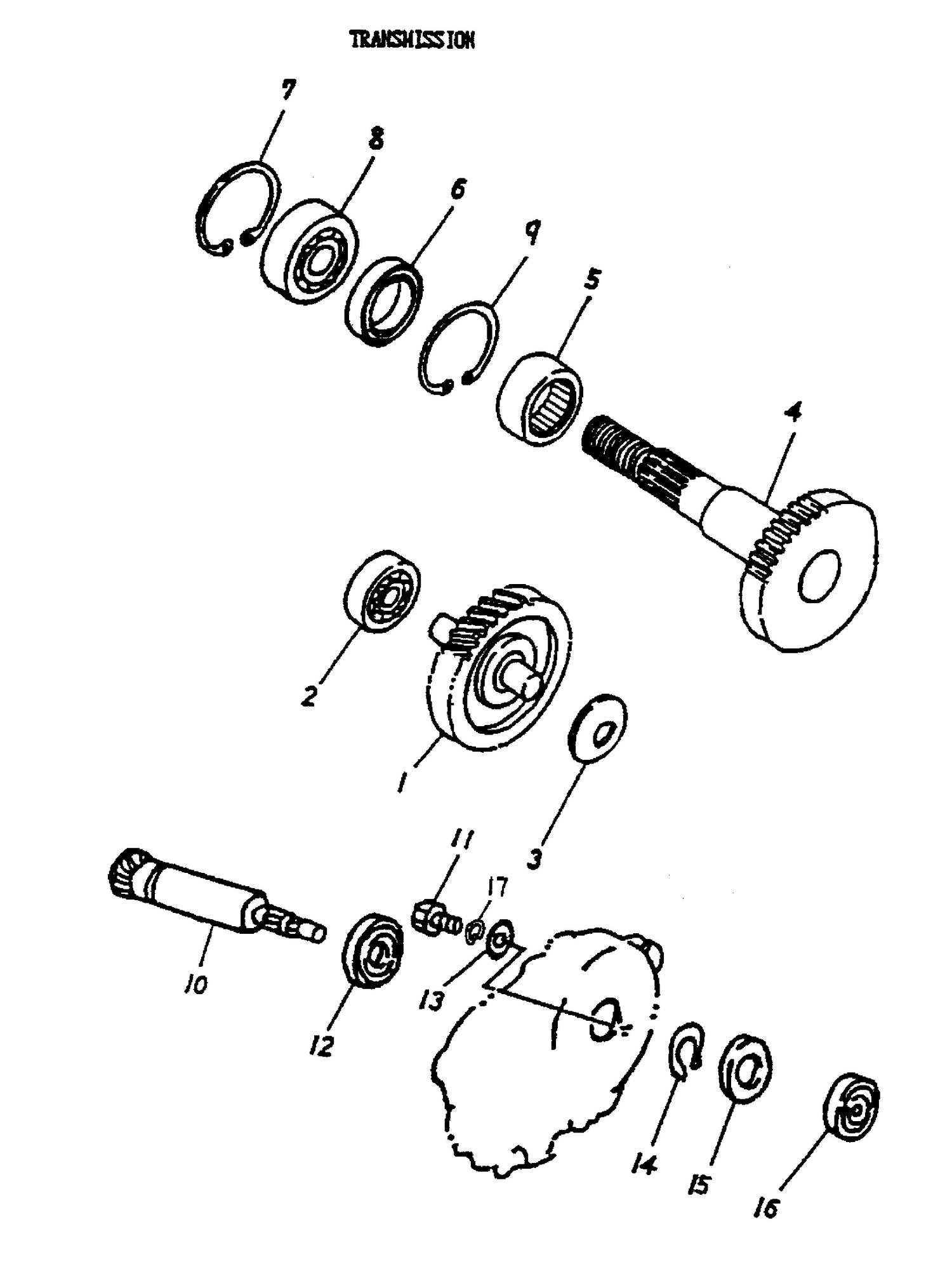

| Ref | Part Number | Description |
|---|
| 1 |
A23420116000 |
Main Axle Comp. |
| 2 |
A9610062010 |
Radial Ball Bearing, 6201 |
| 3 |
A941011229016 |
Plain Washer, 12.2 X 29 X 1.6 |
| 4 |
A23430116000 |
Drive Axle, 36T |
| 5 |
A96200253315 |
Needle Bearing, HMK2515 |
| 6 |
A9650025356 |
OIL SEAL, 25 X 35 X 6 - Call your local BRP dealership |
| 7 |
A945124300R |
INTERNAL CIRCLIP - Call your local BRP dealership |
| 8 |
A961006004U |
RADIAL BALL BEARING, 6004LU - Call your local BRP dealership |
| 9 |
A945123400R |
INTERNAL CIRCLIP - Call your local BRP dealership |
| 10 |
A23411116000 |
Primary Drive Gear, 13T |
| 11 |
A920000601010 |
Hex. Bolt M6 X 10 |
| 12 |
A9610060030 |
Radial Ball Bearing, 6003 |
| 13 |
A941010620005 |
Plain Washer, 6 X 20 X 0.5 |
| 14 |
A945111700S |
External CirClip |
| 15 |
A9650017285 |
OIL SEAL, 17 X 28 X 5.5 - Call your local BRP dealership |
| 16 |
A96100638RD |
RADIAL BALL BEARING, 638RD - Call your local BRP dealership |
