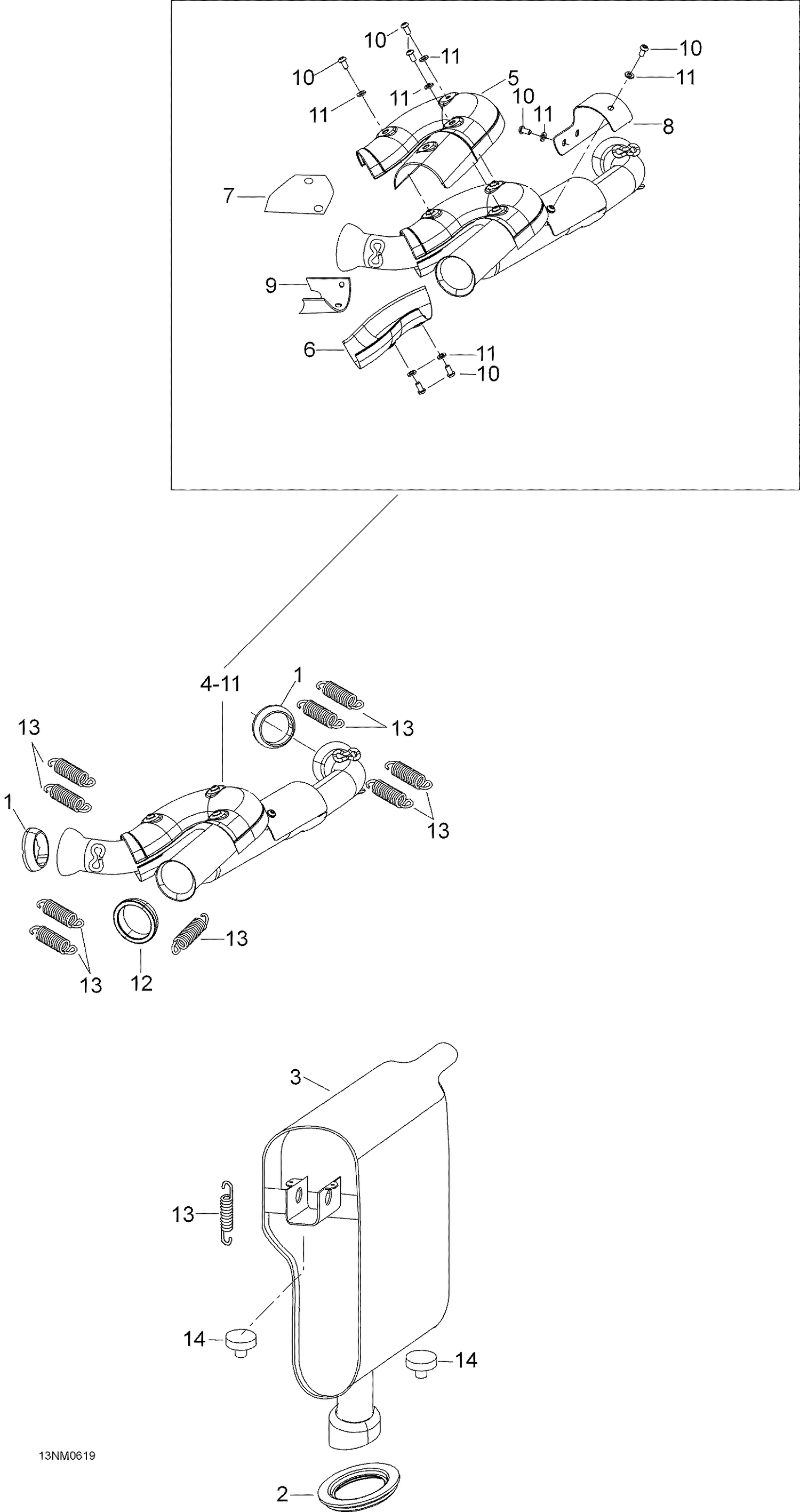

01- Exhaust System
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 707601033 | Exhaust Gasket This part replaces 514053532. |
| 2 | 570039000 | EXHAUST GROMMET - Call your local BRP dealership |
| 3 | 605150881 | Muffler Assy |
| 5 | 605351566 | Heat Cover |
| 6 | 605351567 | Heat Cover |
| 7 | 605351568 | Heat Cover |
| 8 | 605351569 | Heat Cover |
| 9 | 605351570 | Heat Cover |
| 10 | 250000436 | Socket Screw Button Head M6 X 10 This part replaces 205461060. |
| 11 | M20032 | WASHER - Call your local BRP dealership |
| 12 | 514054174 | Exhaust Gasket This part replaces 514053582. |
| 13 | 415107100 | Spring |
