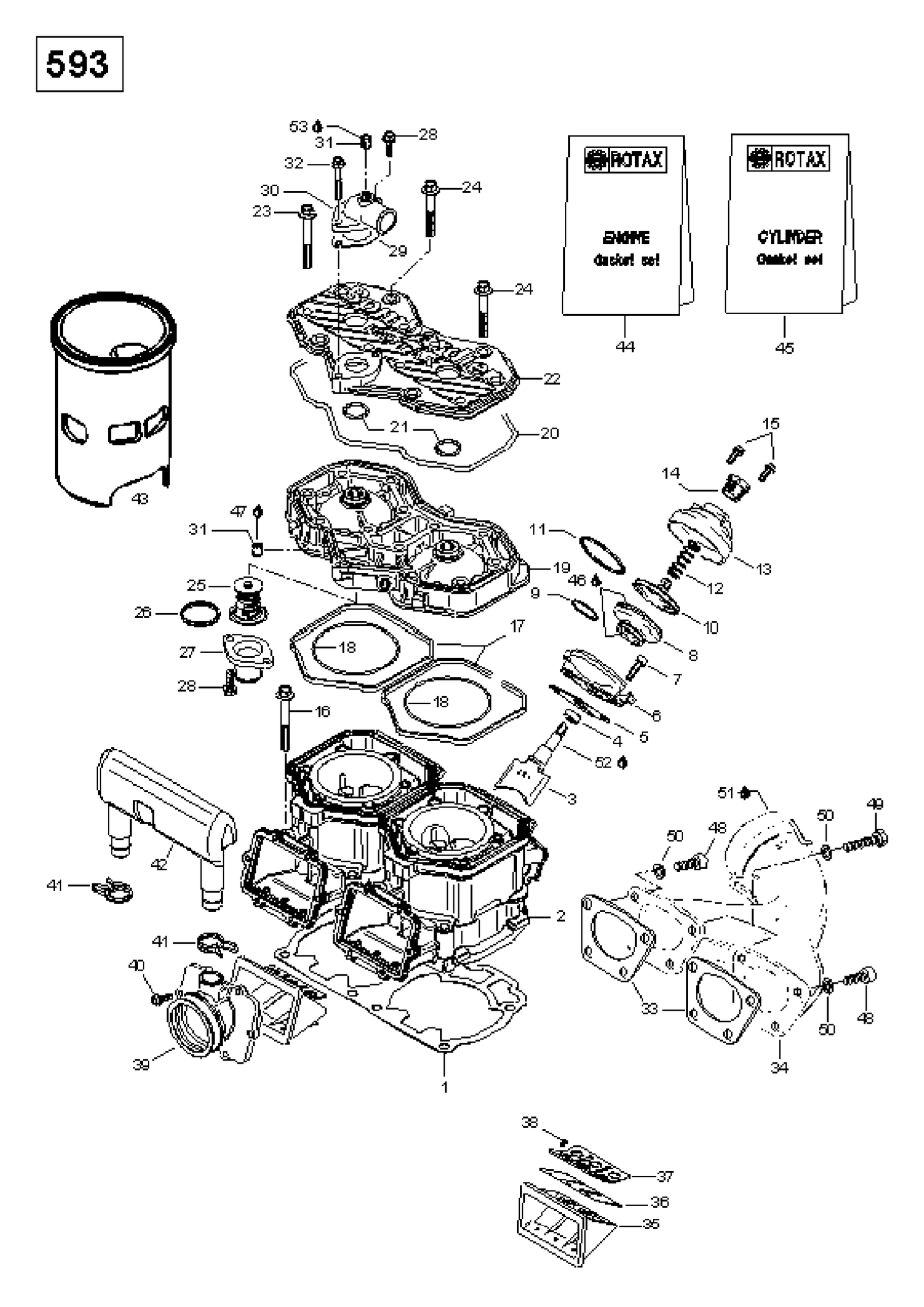

| Ref | Part Number | Description |
|---|
| 1 |
420431420 |
Joint *Gasket 0.5Mm This part replaces 420931583. |
| 1 |
420431421 |
Joint *Gasket 0.6Mm This part replaces 420931582. |
| 1 |
420431422 |
Joint *Gasket 0.7Mm This part replaces 420931962. |
| 1 |
420431423 |
Double Gasket 0.8 mm This part replaces 420931584. |
| 1 |
420931581 |
GASKET 0.4 MM - Call your local BRP dealership |
| 2 |
420613628 |
Cylinder With Sleeve This part replaces 420613625. |
| 3 |
420854371 |
Exhaust Valve This part replaces 420854370. |
| 4 |
420950732 |
Oil Seal This part replaces 420950730. |
| 5 |
420250239 |
Gasket |
| 6 |
420854266 |
Valve rod housing |
| 7 |
205062044 |
Socket head screw M6 x 20 This part replaces 420241930. |
| 8 |
420260723 |
Bellows |
| 9 |
420838255 |
Hose Spring This part replaces 420838253. |
| 10 |
420854449 |
Exhaust valve piston |
| 11 |
420939281 |
Hose Spring This part replaces 420239048. |
| 12 |
420239948 |
SPRING - Call your local BRP dealership |
| 13 |
420911552 |
Valve cover |
| 14 |
420241221 |
Adjuster screw This part replaces 420241220. |
| 15 |
420841555 |
Screw M5 x 20 |
| 16 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420640951. |
| 17 |
420931590 |
Square ring |
| 18 |
293300026 |
O-Ring This part replaces 420850540. |
| 19 |
420923459 |
CYLINDER HEAD - Call your local BRP dealership This part replaces 420923452. |
| 20 |
420950320 |
O-ring |
| 21 |
420430782 |
O-ring |
| 22 |
420923465 |
CYLINDER HEAD COVER - Call your local BRP dealership This part replaces 420923460. |
| 23 |
420841307 |
Hex. Collar Screw M8 X 65 This part replaces 420841306. |
| 24 |
420941627 |
Hex. Screw M8 X 56.5 This part replaces 420941621. |
| 25 |
420922519 |
Thermostat This part replaces 420922518. |
| 26 |
420931272 |
Thermostat gasket |
| 27 |
420922025 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 28 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 29 |
420850339 |
Gasket This part replaces 420850338. |
| 30 |
420922062 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 31 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 32 |
420941451 |
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership |
| 33 |
420931610 |
Gasket |
| 34 |
5245177 |
Exhaust manifold assy |
| 36 |
420924532 |
Reed Pedal |
| 37 |
420924539 |
Reed Pedal Stop |
| 38 |
420941215 |
Screw M3 x 5 |
| 39 |
420867860 |
CARBURETOR SOCKET - Call your local BRP dealership |
| 40 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 41 |
420851440 |
CLAMP - Call your local BRP dealership |
| 42 |
420867815 |
Intake resonator |
| 43 |
420923443 |
Cylinder sleeve |
| 44 |
420893070 |
Gasket Set, Engine This part replaces 420888584. |
| 45 |
420893075 |
Gasket Set, Cylinder This part replaces 420888588. |
| 46 |
413707000 |
Molykote III |
| 47 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 48 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 49 |
40036 |
Hex-screw M8 x 20 |
| 50 |
20014 |
Lock washer |
| 51 |
293800038 |
ADHESIVE LOCTITE 518 - Call your local BRP dealership |
| 52 |
420297433 |
Molykote slide paste This part replaces 711297433. |
