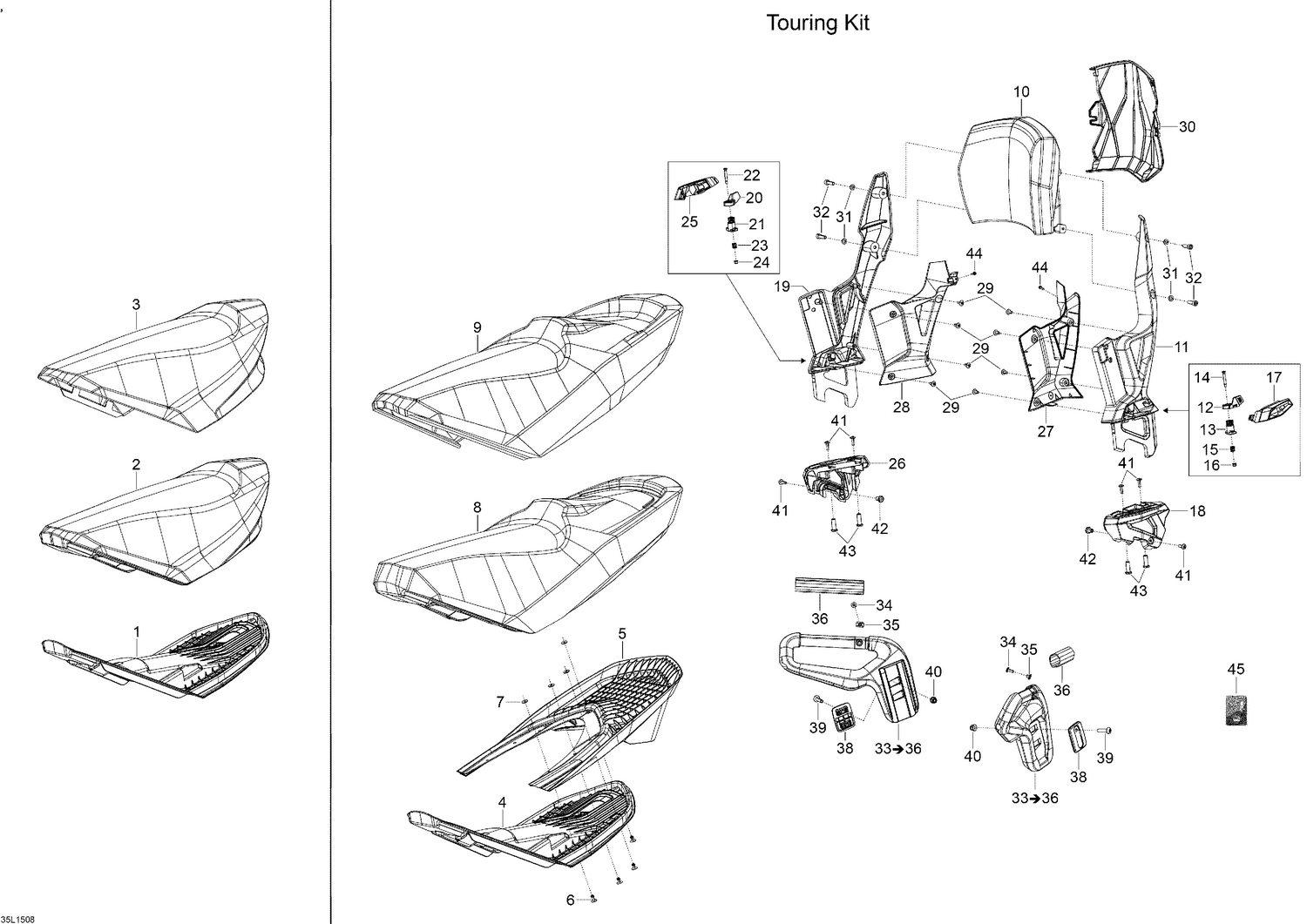

09- Seat
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510005646 | Seat Base |
| 2 | 510005647 | Seat Foam |
| 3 | 510005974 | Black Seat Cover |
| 4 | 510005646 | Seat Base |
| 5 | 510005868 | Seat Rear Base |
| 6 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 7 | 250200025 | Washer M5 |
| 8 | 510005764 | Seat Foam |
| 9 | 510005952 | Black Seat Cover |
| 10 | 510005554 | Backrest |
| 11 | 510005557 | LH Arm |
| 12 | 708200373 | LH Lever |
| 13 | 708200266 | LH Latch |
| 14 | 708200152 | STEM - Call your local BRP dealership |
| 15 | 708200263 | Spring |
| 16 | 233251494 | Elastic Flanged Nut M5 |
| 17 | 510005617 | LH Cap |
| 18 | 511000903 | LH Anchor |
| 19 | 510005558 | RH Arm |
| 20 | 708200374 | RH Lever |
| 21 | 708200267 | RH Latch |
| 22 | 708200152 | STEM - Call your local BRP dealership |
| 23 | 708200263 | Spring |
| 24 | 233251494 | Elastic Flanged Nut M5 |
| 25 | 510005618 | RH Cap |
| 26 | 511000902 | RH Anchor |
| 27 | 510005609 | LH Cover |
| 28 | 510005610 | RH Cover |
| 29 | 250000789 | Torx Truss M6X14 This part replaces 250000439. |
| 30 | 510005556 | Rear Backrest |
| 31 | 234080600 | Flat Washer M8, Stainless |
| 32 | 205582560 | Socket Screw M8 x 25 |
| 34 | 250000721 | Torx Truss Screw M6 X 16 |
| 35 | 293100003 | Weld Nut |
| 36 | 510004449 | Handle Grip |
| 38 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 39 | 250000256 | Torx Truss Screw M8 x 35 |
| 40 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 41 | 250000446 | Torx Truss Screw M6 x 20 |
| 42 | 511000822 | Insert |
| 43 | 520001473 | Insert |
