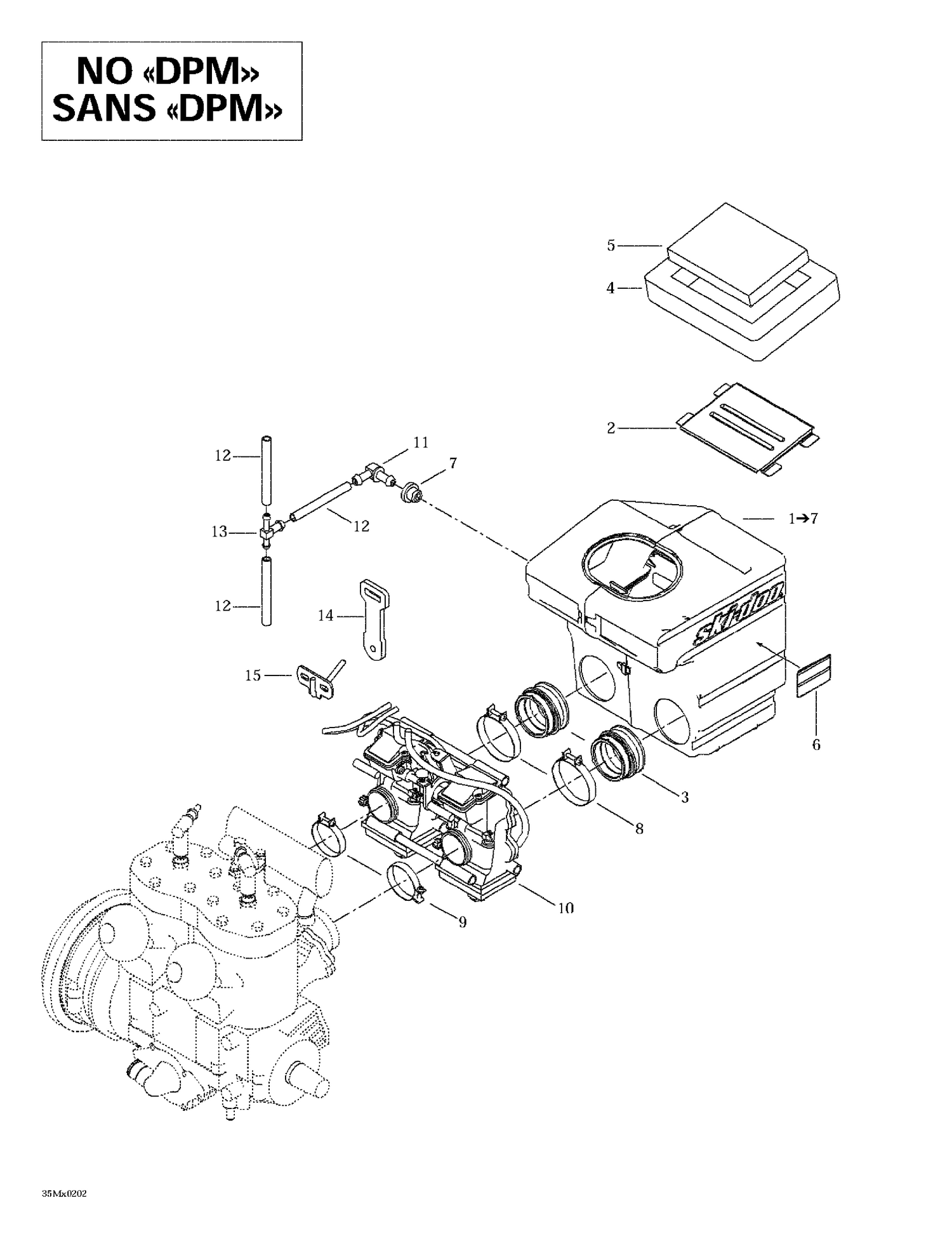

| Ref | Part Number | Description |
|---|
| 2 |
508000004 |
INTAKE GRILL - Call your local BRP dealership |
| 3 |
508000092 |
Air Intake Adaptor, 40 mm |
| 4 |
508000099 |
Lower Foam |
| 5 |
508000154 |
Air Filter |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191. |
| 7 |
513032908 |
Grommet |
| 8 |
508000346 |
Gemi Clamp This part replaces 508000162. |
| 9 |
512059835 |
Gemi Clamp This part replaces 512059305. |
| 11 |
414580600 |
Elbow Male Connector |
| 12 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 13 |
572045500 |
T-Fitting |
| 14 |
512059372 |
CARBURETOR LATCH - Call your local BRP dealership |
