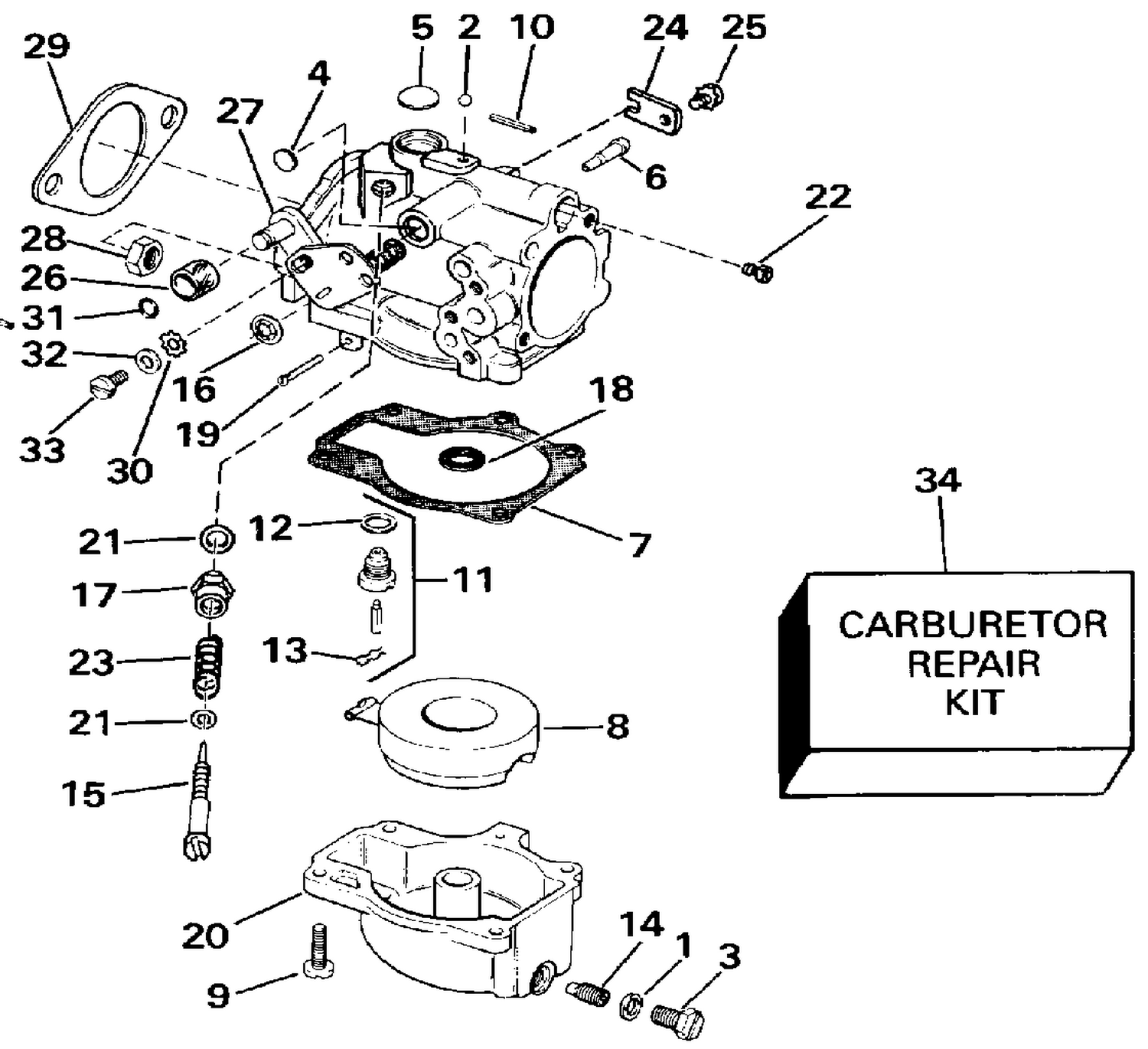

CARBURETOR MODELS WITH VRO
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 13 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 15 | 0335014 | NEEDLE VALVE, Slow speed |
| 22 | 0318832 | O-RING, No. 35 |
| 26 | 0397499 | ROLLER & SLEEVE ASSY. |
| 27 | 0397036 | LEVER & PIN |
| 28 | 0316355 | BUT, Carburetor mounting This part replaces 0315204. |
| 29 | 0325092 | GASKET |
| 31 | 0308776 | O-RING |
| 33 | 0306014 | VIS, ancrage |
| 0433698 | 0433698 | CARBURETOR ASSEMBLY |
