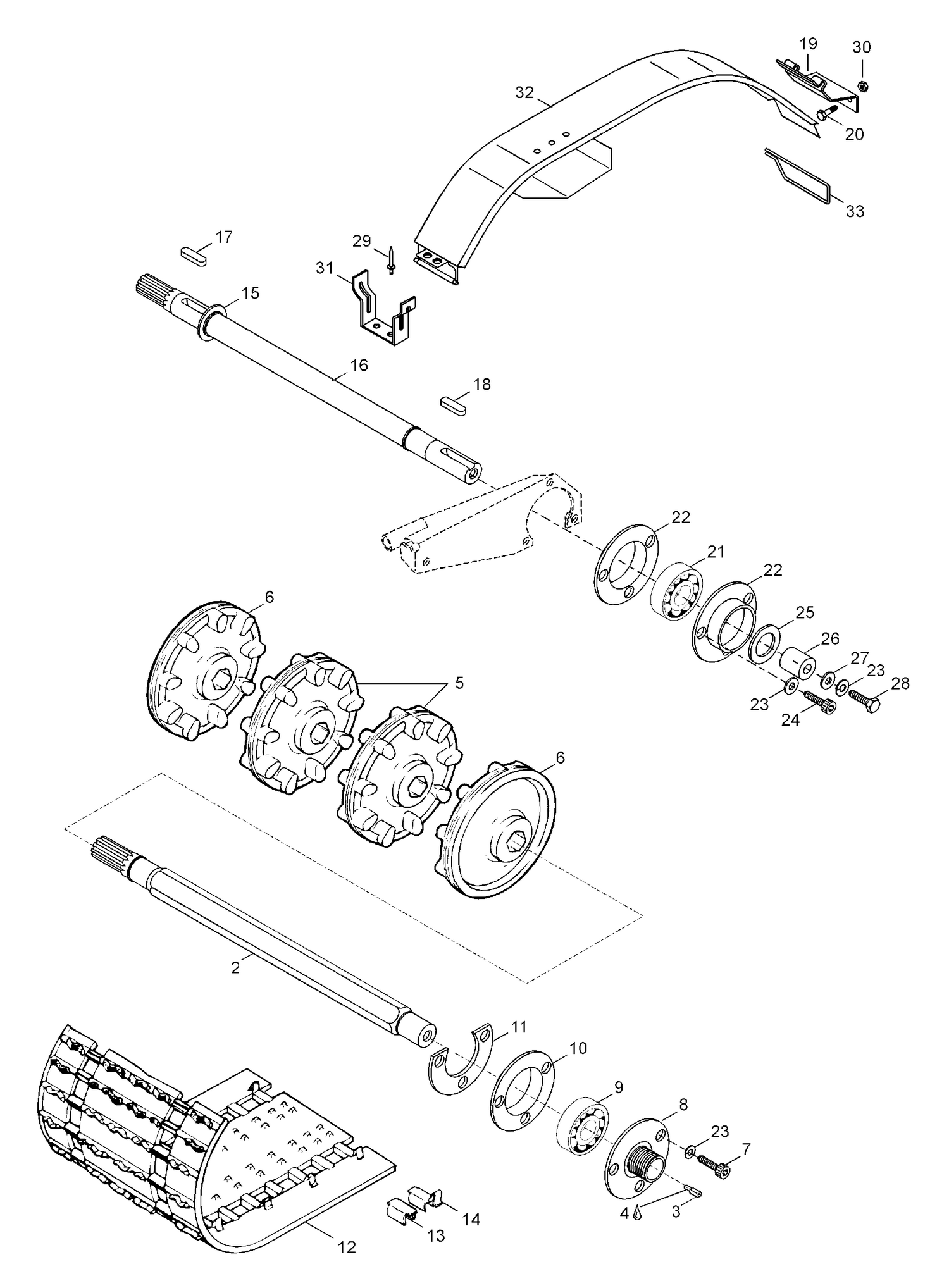

| Ref | Part Number | Description |
|---|
| 2 |
529941 |
Drive shaft |
| 3 |
542013 |
Sleeve |
| 4 |
293800005 |
Loctite 271 (10 ml) This part replaces 413707400. |
| 5 |
539750 |
Sprocket |
| 6 |
5342920 |
Sprocket |
| 7 |
40305 |
Allen screw M8x20 |
| 8 |
5341957 |
Cap welded |
| 9 |
31009 |
Ball bearing 6205 |
| 11 |
5441956 |
Retainer ring |
| 13 |
5318322 |
Slide cleat |
| 14 |
5318323 |
Guide cleat |
| 15 |
Not |
Available As Spare Part - Snap ring - DOES NOT APPLY TO THIS MODEL |
| 16 |
529693 |
Countershaft |
| 17 |
418740 |
Key |
| 18 |
619690074 |
KEY - Call your local BRP dealership This part replaces 418763. |
| 19 |
Not |
Available As Spare Part - Rear Bracket - DOES NOT APPLY TO THIS MODEL |
| 20 |
Not |
Available As Spare Part - Screw M6x20 - DOES NOT APPLY TO THIS MODEL |
| 21 |
31B516 |
Ball bearing |
| 22 |
534430 |
Bearing housing assy |
| 23 |
20014 |
Lock washer |
| 24 |
40337 |
Screw M8x16 |
| 25 |
3125351 |
Shim |
| 26 |
546335 |
Sleeve |
| 27 |
546336 |
Washer |
| 28 |
40088 |
Screw M8x70 |
| 29 |
36083 |
Rivet |
| 30 |
Not |
Available As Spare Part - Nut M6 - DOES NOT APPLY TO THIS MODEL |
| 31 |
518202100 |
Pulley Guard Bracket |
| 32 |
5243331 |
Belt guard |
