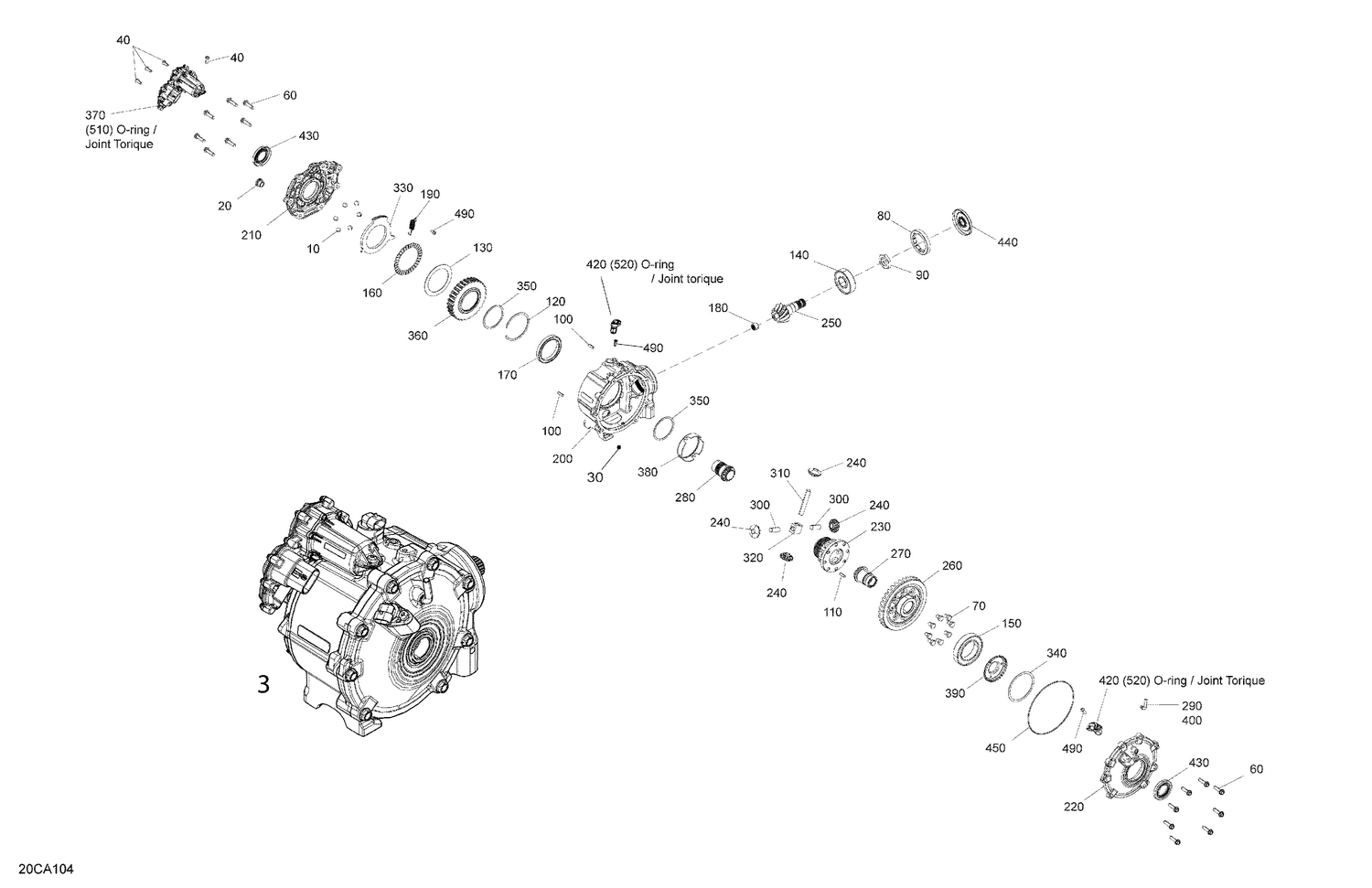

04- Drive - Front Section - Differential Parts
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715900564 | Ball |
| 20 | 705501889 | Fill Level Plug |
| 30 | 715900563 | Fill Level Plug M10 |
| 40 | 705402845 | Torx Screw M6 X 16 This part replaces 715900562. |
| 60 | 705501886 | Bolt |
| 70 | 715900561 | Hex Screw 3/8 X 0.500 |
| 80 | 705401819 | Nut M75 X 1.5 |
| 90 | 705401820 | Nut M27 X 1.5 |
| 100 | 715900559 | Dowel Pin |
| 110 | 715900618 | Dowell Pin |
| 120 | 715900558 | Retainin Ring |
| 130 | 715900557 | Thrust Washer |
| 140 | 705401821 | Ball Bearing |
| 150 | 715900556 | Ball Bearing 60 X 95 X 18 |
| 160 | 715900555 | Needle Bearing |
| 170 | 715900554 | Ball Bearing 65 X 85 X 10 |
| 180 | 715900634 | Needle Bearing |
| 190 | 715900553 | Spring |
| 210 | 715900632 | RH Cover |
| 220 | 715900631 | LH Cover |
| 230 | 715900617 | Housing |
| 240 | 715900548 | Pinion 10T |
| 250 | 715900635 | Pinion 10 T |
| 260 | 715900676 | Gear 36T |
| 270 | 715900546 | Gear 14T |
| 280 | 715900545 | Gear 14T |
| 290 | 705401935 | Vent Valve |
| 300 | 715900543 | Pinion Pin 0.5 X 1.250 |
| 310 | 715900542 | Pinion Pin 0.5 X 3.000 |
| 320 | 715900541 | Coupler, Pin |
| 330 | 715900540 | Ramp Ball |
| 340 | 715900539 | Shim 74.50 X 66.00 |
| 350 | 715900538 | Shim 3.735 X 3.300 |
| 360 | 715900537 | Clutch Pack |
| 370 | 715900640 | Actuator Ass'y |
| 380 | 715900535 | Cross Pin Retainer |
| 390 | 715900534 | Tone Ring 30T |
| 400 | 715900533 | Vent Cap 5/16 |
| 420 | 715900532 | Speed Sensor |
| 430 | 715900531 | Oil Seal |
| 440 | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 450 | 715900530 | O-Ring |
| 490 | 705402845 | Torx Screw M6 X 16 This part replaces 715900562. |
| 510 | 715900601 | O-Ring |
| 520 | 715900600 | O-Ring |
