Parts Catalog

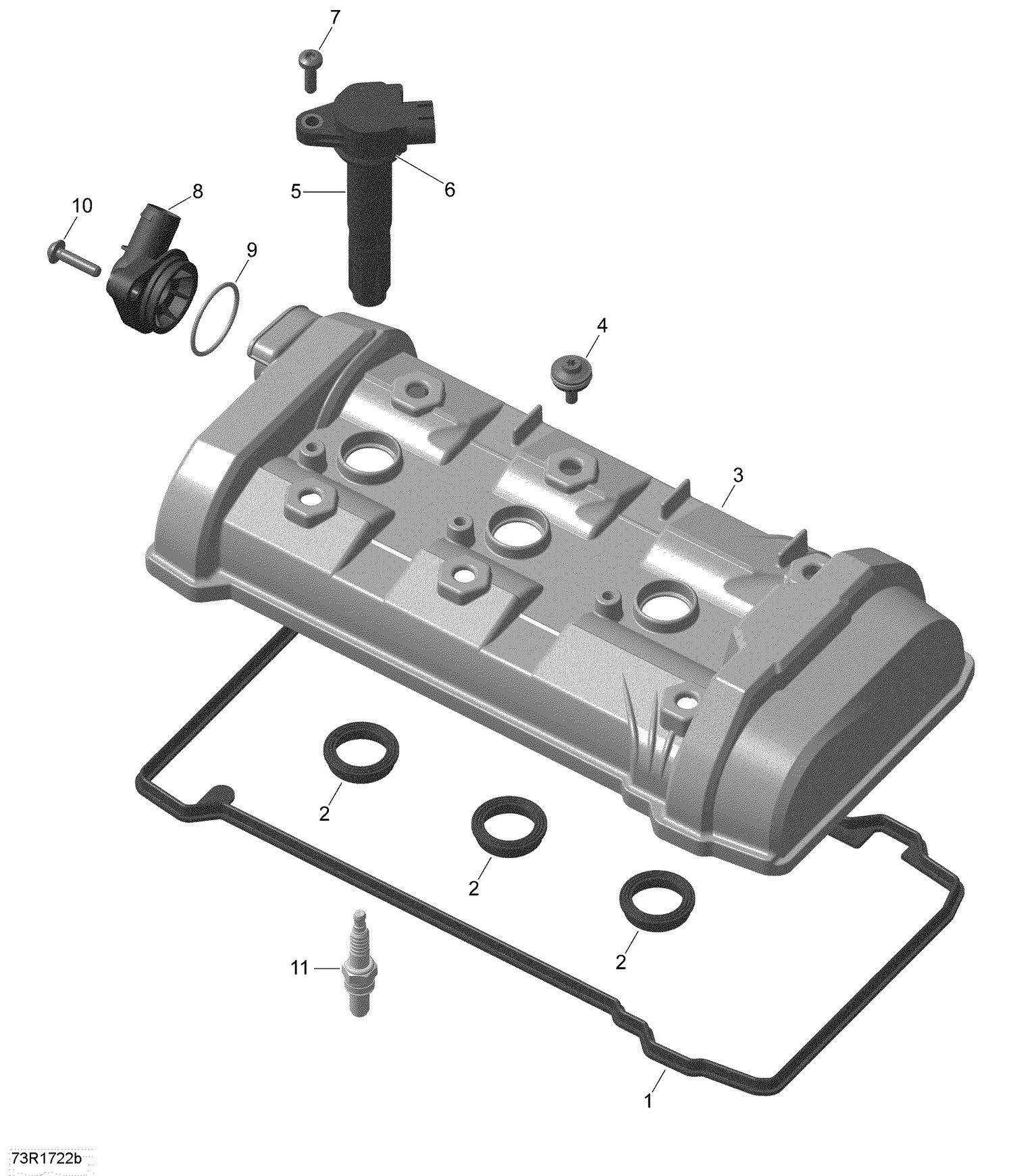

01- ROTAX - Valve Cover

Parts (9)

Ref	Part Number	Description
1	420250220	Gasket
2	420250240	Gasket
3	420210190	Valve Cover
4	420440495	Torx Distance Screw M6
6	420201430	Protection Cap
7	420441386	Torx Flange Screw M6 X 20
8	420210630	Connector
9	420950870	O-Ring
10	420841549	Torx Flange Screw M6 X 25
