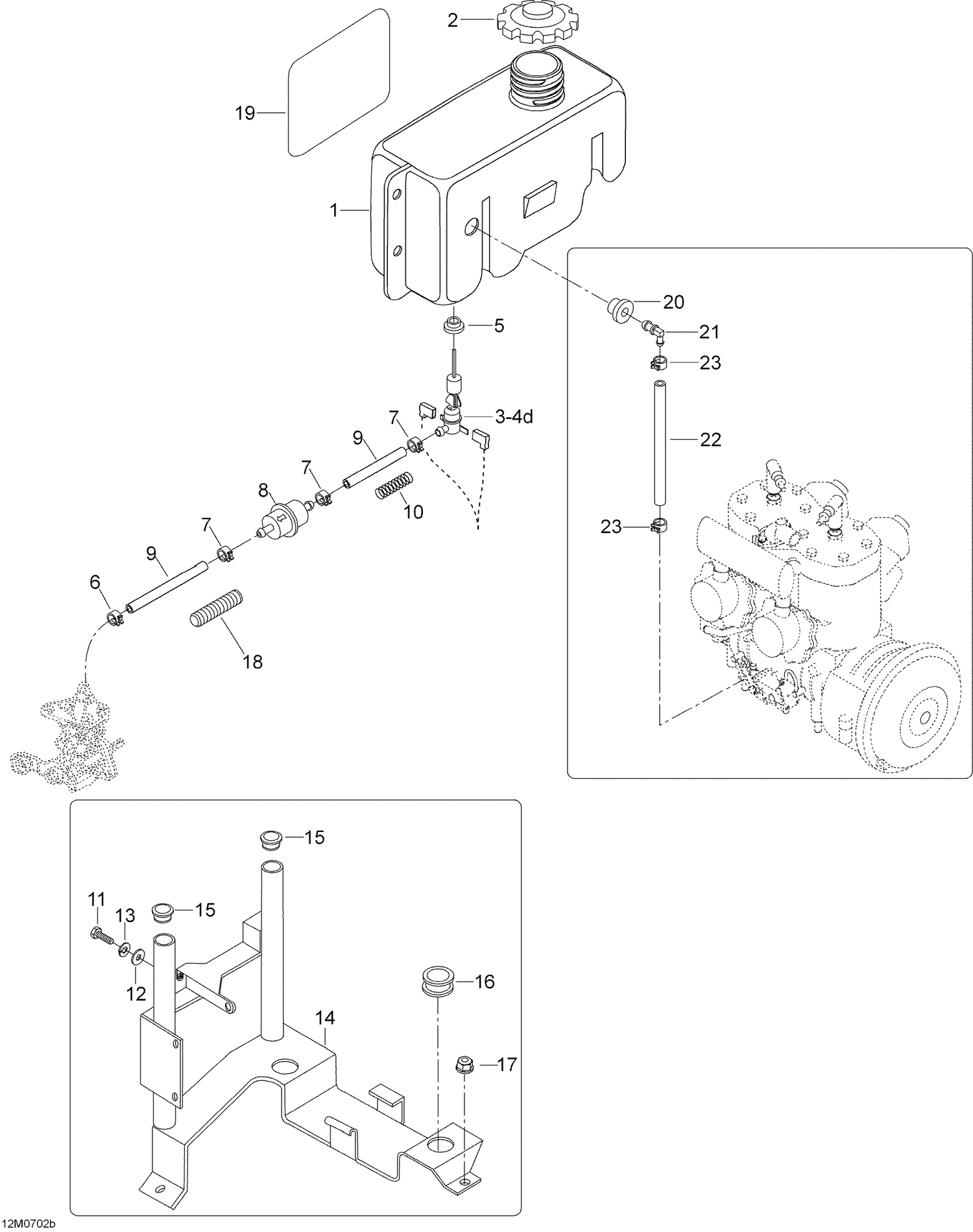

02- Oil System 600
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | M5146370 | Oil Tank |
| 2 | 519000044 | CAP - Call your local BRP dealership |
| 5 | 570023000 | Insulating Ring |
| 6 | 414420700 | Spring Clamp |
| 7 | 414415200 | Spring Clamp |
| 8 | 414536500 | Filter |
| 9 | 219704412 | Polyurethane Hose, 8 Mm 3000Mm Long |
| 10 | M25005 | SPRING - Call your local BRP dealership |
| 11 | M40322 | Screw |
| 12 | 234062410 | Flat Washer 6 mm This part replaces M20009. |
| 13 | 234161471 | Lock Washer M6, Black |
| 14 | M5246593 | Oil Tank Support |
| 15 | M28136 | PLUG - Call your local BRP dealership |
| 16 | M5446766 | Passe-Fils *Grommet |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 18 | M28015 | HOUSING - Call your local BRP dealership |
| 19 | M5443578 | Reflecting Sheet |
| 20 | 709200285 | Grommet This part replaces 570135100. |
| 21 | 414580700 | Male Connector |
| 22 | 219704397 | Hose 5/8 1000MM LONG - Call your local BRP dealership |
