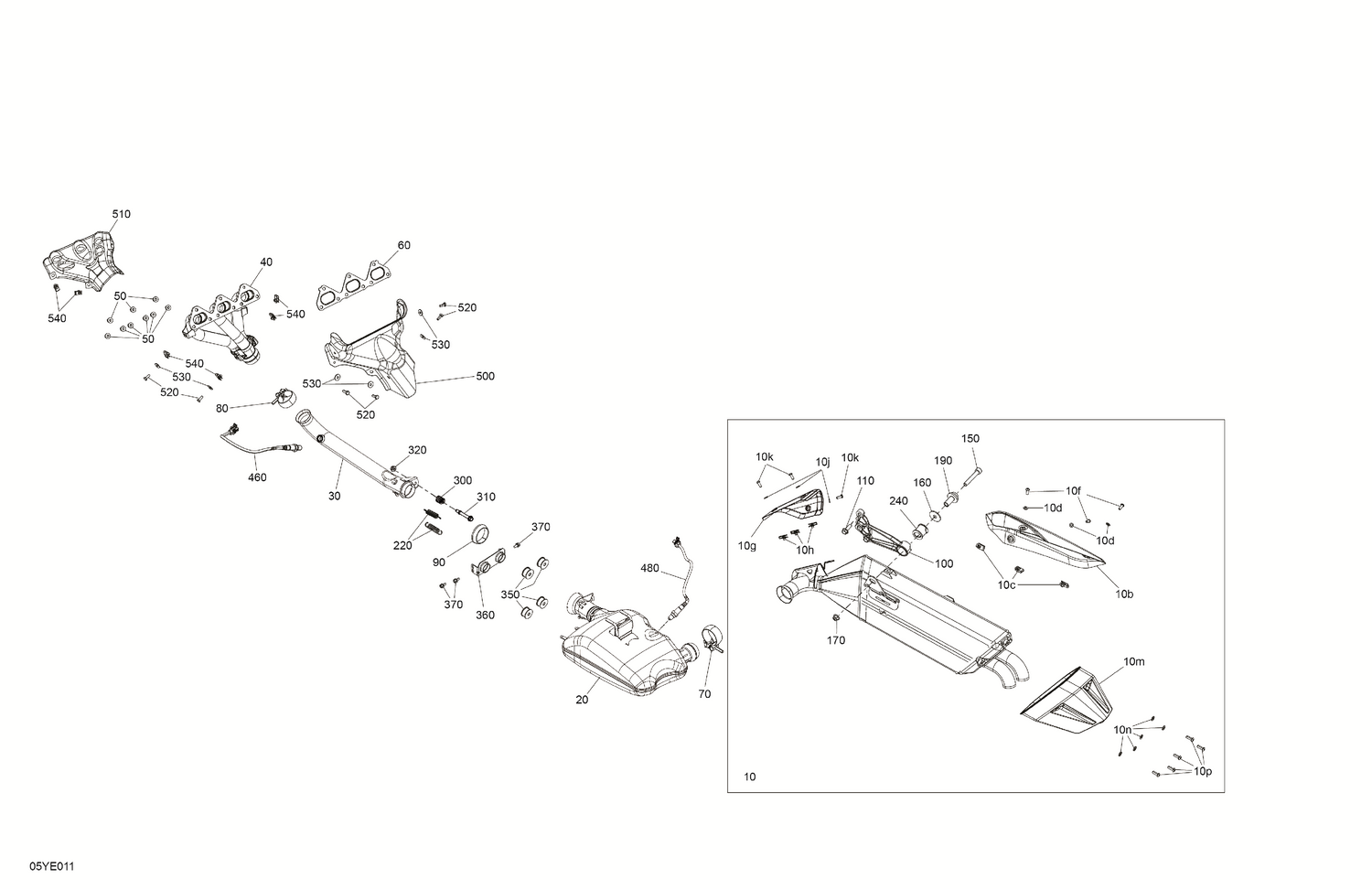

| Ref | Part Number | Description |
|---|
| 10b |
707601381 |
Carbon Black, Heat Shield |
| 10c |
250100198 |
Panel Nut M6 X 1.0 |
| 10d |
234061670 |
Black, Flat Washer 6 mm |
| 10f |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 10g |
707603616 |
Carbon Black, Muffler Trim |
| 10h |
250100198 |
Panel Nut M6 X 1.0 |
| 10j |
234061670 |
Black, Flat Washer 6 mm |
| 10k |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 10m |
707601995 |
Carbon Black, RH Rear Muffler Trim |
| 10n |
234061670 |
Black, Flat Washer 6 mm |
| 10p |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 20 |
707603431 |
Primary Exhaust Muffler |
| 30 |
707603478 |
Exhaust Pipe Out |
| 40 |
707603565 |
Exhaust Manifold |
| 50 |
233081416 |
Hex. Flange Nut M8 |
| 60 |
707601985 |
Exhaust Seal |
| 70 |
707600980 |
Exhaust Clamp |
| 80 |
707600980 |
Exhaust Clamp |
| 90 |
514054174 |
Exhaust Gasket |
| 100 |
707603445 |
Exhaust Support |
| 110 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 150 |
244006060 |
Socket Screw M10 X 60 |
| 160 |
506150000 |
Washer 10 mm |
| 170 |
233101600 |
Hex. Flange Nut M10 |
| 190 |
707601657 |
Black Bushing |
| 220 |
415107100 |
Spring |
| 240 |
293830162 |
Anti-Vibration Rubber |
| 300 |
707600682 |
Spring |
| 310 |
250001312 |
Hex. Flan. Screw Dogp. M10 X 80 |
| 320 |
233101414 |
Hex. Flange Nut M10 |
| 350 |
707600702 |
Anti-Vibration Rubber |
| 360 |
707600661 |
Front Bracket |
| 370 |
210261250 |
Hex. Flange Screw M6 X 12 |
| 460 |
707600872 |
Oxygen Sensor |
| 480 |
707600872 |
Oxygen Sensor |
| 500 |
707603641 |
Heat Shield interior |
| 510 |
707603642 |
Heat Shield Exterior |
| 520 |
207361660 |
Hex. Screw M6 X 16, Scotch Grip |
| 530 |
234062600 |
Flat Washer M6, Stainless |
