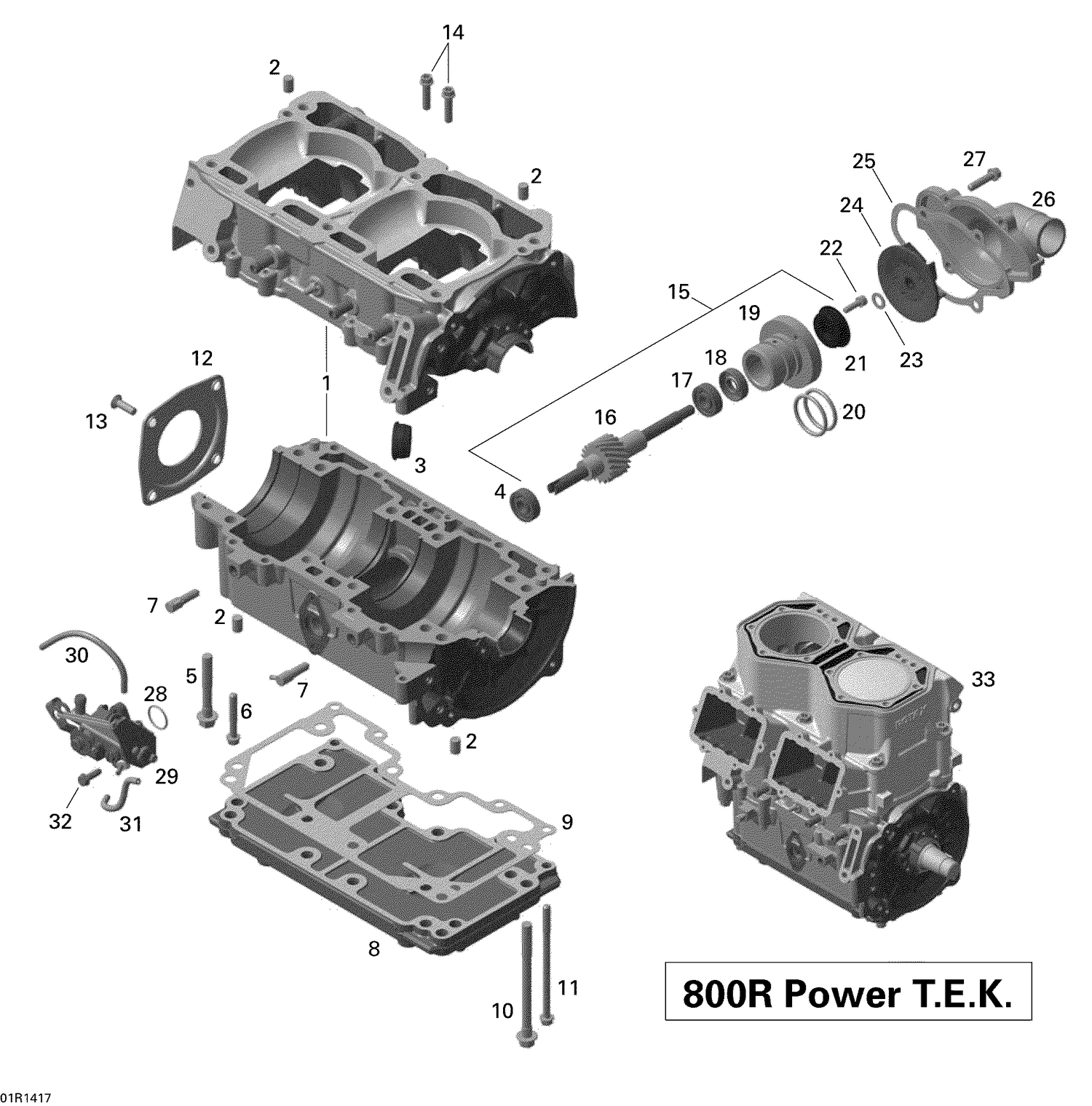

01- Crankcase, Water Pump And Oil Pump
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420632010 | Center Pin 8 X 12 |
| 3 | 420860965 | Cable Grommet |
| 4 | 420232100 | Ball Bearing |
| 5 | 420941627 | Hex. Screw M8 X 56.5 |
| 6 | 420440282 | Torx Flange Screw M6 X 40 |
| 7 | 420956511 | Check Valve This part replaces 420956510. |
| 8 | 420812683 | ENGINE SUPPORT - Call your local BRP dealership |
| 9 | 420430070 | Gasket Engine Support |
| 10 | 420941518 | Screw M8x105 This part replaces 420941517. |
| 11 | 420241602 | Socket Head Screw M6 X 100 This part replaces 420241601. |
| 12 | 420812422 | Oil Seal Cover This part replaces 420812420. |
| 13 | 420941436 | Screw M6 X 20 |
| 14 | 420440234 | Torx Flange Screw M6 X 25 |
| 16 | Not | Available As Spare Part - Water Pump/Oil Pump Shaft |
| 17 | 420232100 | Ball Bearing |
| 18 | 420230195 | Oil Seal This part replaces 420230196. |
| 19 | Not | Available As Spare Part - Step Collar |
| 20 | 420950890 | O-Ring |
| 21 | 420650371 | Rotary Seal This part replaces 420650370. |
| 22 | 420840514 | Allen Screw M5 x 16 This part replaces 420840511. |
| 23 | 420944033 | Washer 8.4 |
| 24 | 420922805 | Water Impeller |
| 25 | 420430051 | Joint Couv.Pom.*Gasket Cover Water Pump This part replaces 420430050. |
| 26 | 420822280 | Water Pump Housing |
| 27 | 420440234 | Torx Flange Screw M6 X 25 |
| 28 | 293300041 | O-Ring |
| 29 | 420888774 | Oil Pump Ass’y |
| 30 | 219704404 | Oil Hose 1500Mm Long |
| 31 | 219704404 | Oil Hose 1500Mm Long |
| 32 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 33 | 420079709 | Short Block 797 XP |
