| Ref | Part Number | Description |
|---|
| 2 |
0908993 |
ELBOW, Trim cyl, stbd |
| 2 |
0910150 |
ELBOW, Pump |
| 3 |
0910199 |
FIOTTIG, Trim cyl, stbd |
| 4 |
0908975 |
ROD WIPER, Cover, port & stbd |
| 5 |
0302479 |
VIS, démarreur vers bloc cylindres-carter This part replaces 0306416. |
| 6 |
0909252 |
COVER, Trim cylinder, port & stbd |
| 7 |
0909253 |
BACKUP RING |
| 9 |
0908977 |
QUAD RING, Cover |
| 10 |
0909177 |
T-SEAL, Piston |
| 10 |
704909038 |
Emblem Logo BRP 20 MM UV |
| 11 |
0982331 |
PISTON, Rod & ring assy |
| 12 |
0908973 |
RETAINING RING |
| 13 |
0910154 |
TRIM CYL ASSY |
| 14 |
0982330 |
TRIM CYL ASSY |
| 15 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 18 |
0910152 |
ARM |
| 21 |
0910494 |
BUS BAR |
| 22 |
3852434 |
CLAMP, Engine cable This part replaces 0908191. |
| 23 |
0910201 |
COLLIER, solénoïde amorçage |
| 24 |
0306413 |
WASHER |
| 25 |
0606691 |
SCREW, Sending unit |
| 26 |
0306390 |
JAM NUT, Stud |
| 27 |
0912313 |
BRACKET |
| 28 |
3852465 |
BUSHING This part replaces 0908986. |
| 29 |
0910150 |
ELBOW, Pump |
| 30 |
704909039 |
Emblem BRP Logo 35 MM UV |
| 31 |
0306322 |
BOLT, Water pump |
| 32 |
0910146 |
FITTING, Pump |
| 33 |
0910148 |
MOUNT BASE |
| 34 |
0982391 |
LEAD ASSY |
| 36 |
0908988 |
MALE TEE |
| 37 |
3852475 |
LAG SCREW This part replaces 0909716. |
| 38 |
0120177 |
L'WASHER, Alternator to brkt |
| 40 |
0306993 |
L'WASHER,Potentiometer,12 V |
| 41 |
0909633 |
WASHER |
| 42 |
0910151 |
BRACKET, Sending unit |
| 43 |
0910061 |
BRACKET, Mount stringer |
| 45 |
0910314 |
STUD, Ground |
| 46 |
0304202 |
LOCKWASHER, Choke ground |
| 47 |
0982373 |
LINE ASSY, Upper stbd |
| 48 |
0982374 |
LINE ASSY, Lower stbd |
| 49 |
0982375 |
LINE ASSY, Upper port |
| 50 |
0982376 |
LINE ASSY, Lower port |
| 52 |
3852428 |
WASHER, Lower This part replaces 0907857. |
| 53 |
0982957 |
PUMP & MTR ASSY |
| 54 |
0172948 |
THRU BOLT PACKAGE |
| 55 |
0979940 |
HEAD ASSY, Comm end |
| 60 |
0172949 |
THRUST WASHER PACKAGE |
| 61 |
0982759 |
FRAME & FIELD ASSY |
| 62 |
0983194 |
RESERVOIR & O-RING ASSY |
| 64 |
0982957 |
PUMP & MTR ASSY This part replaces 0172950. |
| 65 |
0510469 |
TAB |
| 66 |
0510471 |
CONNECTOR |
| 71 |
0985063 |
SOLENOID This part replaces 0982187. |
| 72 |
0979722 |
RUBBER MOUNT |
| 73 |
0911451 |
LOCKNUT, Piston & rod to mount |
| 74 |
0910149 |
WASHER, Rubber mount |
| 76 |
0982379 |
CABLE ASSY This part replaces 0983246. |
| 82 |
0510472 |
CONNECTOR |
| 84 |
0908197 |
WASHER |
| 85 |
0909634 |
LOCKNUT |
| 86 |
0318370 |
SCREW |
| 88 |
0909725 |
WASHER, Front mount |

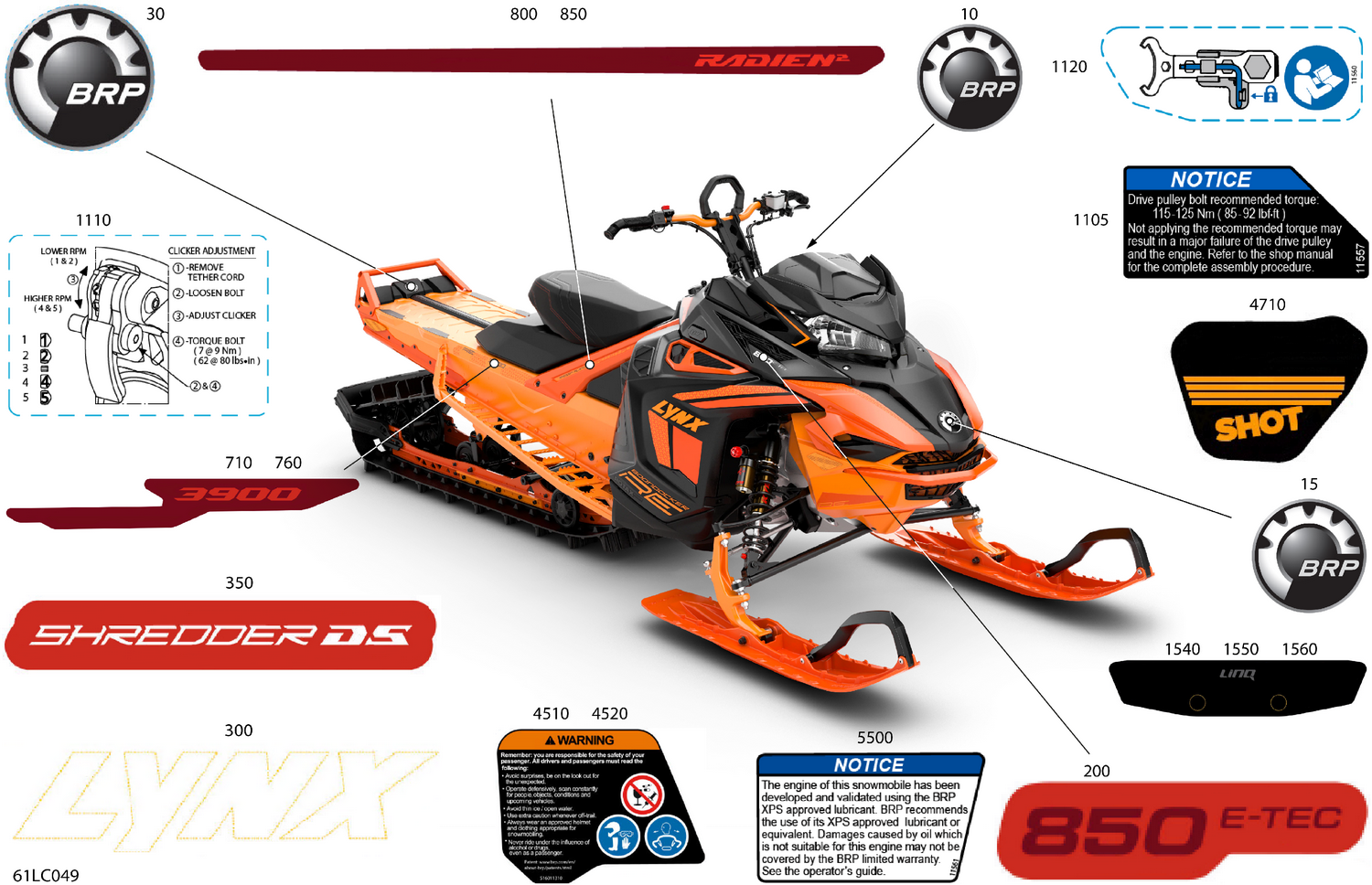

| 200 |
516011080 |
Decal 850 E-TEC |
| 300 |
516011088 |
LH/RH Panel Decal |
| 350 |
516011090 |
LH/RH Panel Decal |
| 710 |
516011093 |
LH Tunnel Decal |
| 760 |
516011094 |
RH Tunnel Decal |
| 800 |
516011073 |
LH Cross Member Decal |
| 850 |
516011074 |
RH Cross Member Decal |
| 1105 |
516011557 |
Clutch Instruction Label |
| 1110 |
516009265 |
Ramp Clicker Decal |
| 1120 |
516011560 |
Tool Instruction Label |
| 1540 |
516011681 |
Decal Q-Link |
| 1550 |
516011681 |
Decal Q-Link |
| 1560 |
516011681 |
Decal Q-Link |
| 4510 |
516011310 |
Decal - Label General C/U |
| 4520 |
516011312 |
Decal - Label |
| 4710 |
516008187 |
Decal Shot |
| 0983195 |
0982957 |
PUMP & MTR ASSY This part replaces 0983195. |
| 0983718 |
0983718 |
FRONT MOUNT ASSY, Port |
| 0983719 |
0983719 |
FRONT MOUNT ASSY, Stbd |
