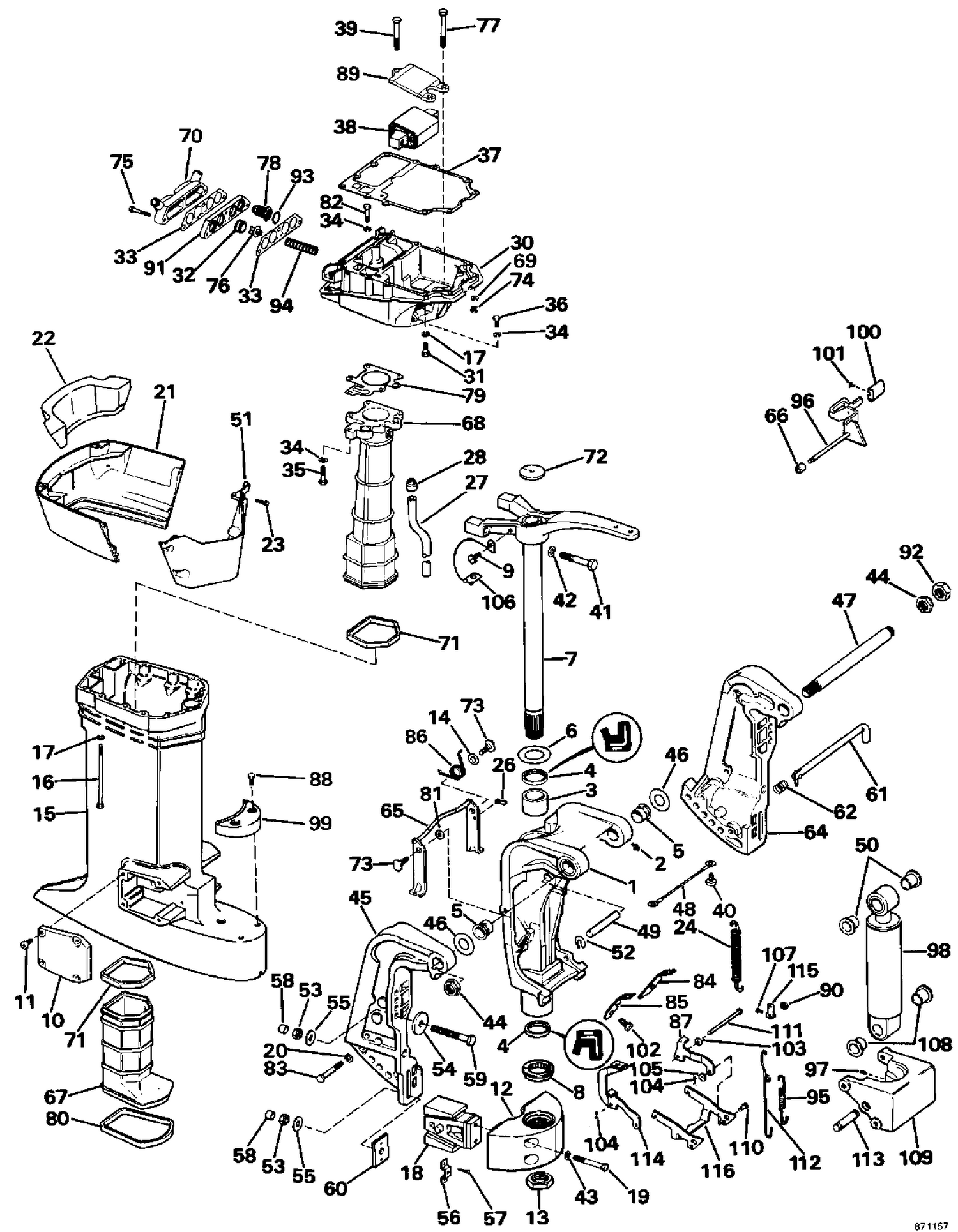

| Ref | Part Number | Description |
|---|
| 1 |
0432708 |
SWIVEL BRACKET This part replaces 0397743. |
| 5 |
0321035 |
BRUSHING, Swivel bracket |
| 6 |
0320866 |
RONDELLE DE BUTÉE, arbre d'articulation |
| 7 |
0392518 |
STEERING ARM ASSY. |
| 8 |
0327696 |
CONTRE-CROU, arbre d'articulation |
| 9 |
0328696 |
SCREEN, Ground lead |
| 10 |
0338942 |
COVER, Mount bracket lower This part replaces 0320864. |
| 11 |
0322000 |
SCREW, Starter to crankcase |
| 12 |
0340006 |
BRACKET, Mount This part replaces 0327051. |
| 13 |
0320746 |
CROU, support de montage |
| 15 |
0332744 |
EXHAUST HOUSING |
| 16 |
0328698 |
SCREW, Adapter to crankcase |
| 18 |
0434631 |
MOUNT ASSY., Lower This part replaces 0391709. |
| 19 |
0328078 |
SCREW, Mount |
| 20 |
0307708 |
RONDELLE GROWER |
| 21 |
0390131 |
COVER, Exhaust housing, rear |
| 22 |
0318258 |
SEAL Cover |
| 24 |
0321920 |
SPRING, Reverse lock |
| 26 |
0335814 |
DISPOSITIF DE RETENUE, ressort de verrouillage pour transport sur remorque This part replaces 0325525. |
| 27 |
0323403 |
WATER TUBE |
| 28 |
0305145 |
GROMMET |
| 30 |
0331039 |
ADAPTER, Exhaust housing This part replaces 0331037. |
| 32 |
0321692 |
GROMMET |
| 33 |
0332369 |
GASKET |
| 35 |
0306418 |
VIS, ancrage |
| 36 |
0306409 |
VIS, collecteur vers carter-moteur |
| 37 |
0342513 |
GASKET, Adapter to powerhead This part replaces 0321727. |
| 38 |
0395755 |
RUBBER MOUNT ASSY., Upper |
| 41 |
0335612 |
SCREW, Upper This part replaces 0328692. |
| 42 |
0322624 |
WASHER, Lag screw This part replaces 0313169. |
| 43 |
0306314 |
L'WASHER,Scr,long |
| 44 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 45 |
0395844 |
STEERING BRACKET, ASSY., Stbd. This part replaces 0397948. |
| 47 |
0335553 |
TILT TUBE This part replaces 0321052. |
| 48 |
0580733 |
FIL, masse solénoïde |
| 49 |
0320792 |
PIN |
| 51 |
0323800 |
COVER, Exhause housing, front, plastic |
| 52 |
0321054 |
SPRING CLIP |
| 53 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 54 |
0307238 |
RONDELLE |
| 55 |
0320248 |
RONDELLE, écrou |
| 56 |
0318273 |
Bolt hex retainer 1/2 in. |
| 57 |
0319886 |
SCREW |
| 58 |
0318572 |
Bolt thread protective cap 1/2 in. |
| 59 |
0318573 |
SCREW, Bracket mount, 3 1/2 in. (12.7 x 89mm) |
| 59 |
0363011 |
SCREW, Stern bracket mounting, 1/2 x 5.75 in. (146 mm) This part replaces 0321577. |
| 59 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 60 |
0318272 |
Nut backing plate (square) 1/2 in. |
| 61 |
0436541 |
ROD Assy, Thrust This part replaces 0387278. |
| 62 |
0321053 |
SORUBG,Thrust rod |
| 64 |
0396309 |
STERN BRACKET ASSEMBLY, Port |
| 65 |
0390442 |
LOCATING LEVER, Rod |
| 67 |
0327796 |
EXHASUT HSG,Inner lower |
| 68 |
0329556 |
EXHAUST HOUSING, Inner |
| 70 |
0321690 |
COVER, Thermostat |
| 71 |
0320936 |
JOINT, boîtier échappement, inférieur |
| 72 |
0322302 |
SEAL, Adapter to frame |
| 73 |
0329109 |
SHOULDER SCREW |
| 75 |
0305652 |
VIS, manette des gaz |
| 76 |
0318395 |
CHECK VALVE |
| 77 |
0330931 |
VIS, support supérieur |
| 78 |
5005440 |
THERMOSTAT This part replaces 0393659. |
| 79 |
0323459 |
GASKET |
| 80 |
0320961 |
JOINT, boîtier d'engrenages vers carter intérieur |
| 82 |
0303398 |
VIS, support |
| 83 |
0318612 |
SCREW, Bracket to cover |
| 84 |
0334345 |
RETAINER, Lock spring This part replaces 0323593. |
| 85 |
0334345 |
RETAINER, Lock spring This part replaces 0323594. |
| 86 |
0332938 |
SPRING, Trail lock |
| 87 |
0321837 |
LINK, Reverse lock, port |
| 88 |
0328049 |
SCREW |
| 89 |
0331022 |
PLATE |
| 90 |
0323144 |
SPACER |
| 91 |
0321693 |
VALVE BODY |
| 92 |
0322376 |
NUT, Wiper, tilt tube |
| 93 |
0321932 |
GASKET, Thermostat |
| 94 |
0317245 |
SPRING, Control valve |
| 95 |
0322085 |
SPRING, Trail lock return |
| 96 |
0390097 |
LEVER AND AHSFT |
| 97 |
0909676 |
SCREW |
| 98 |
0387792 |
SHOCK ABSORBER AND SPRING |
| 99 |
0392123 |
ANODE |
| 100 |
0329012 |
KNOB Tilt & reverse lock handle |
| 101 |
0318238 |
SCREW |
| 103 |
0204757 |
BOW WASHER |
| 104 |
0302858 |
GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 105 |
0303887 |
WASHEER, Pin to swivel bracket |
| 106 |
0583967 |
GROUND LEAD This part replaces 0583357. |
| 107 |
0319108 |
SCREW BELCRANK |
| 108 |
0321246 |
BUSHING, Shock absorber, lower |
| 109 |
0329519 |
SPACER Stern bracket |
| 110 |
0321591 |
PIN, Link to locking |
| 111 |
0321592 |
PIN, Link to swivel bracket |
| 112 |
0332939 |
ROD, Reverse lock release |
| 113 |
0321695 |
PIN, Cylinder, lower |
| 114 |
0321748 |
LIN, Reverse lock, starboard |
| 115 |
0325526 |
BELCRANK, Releasing rod |
