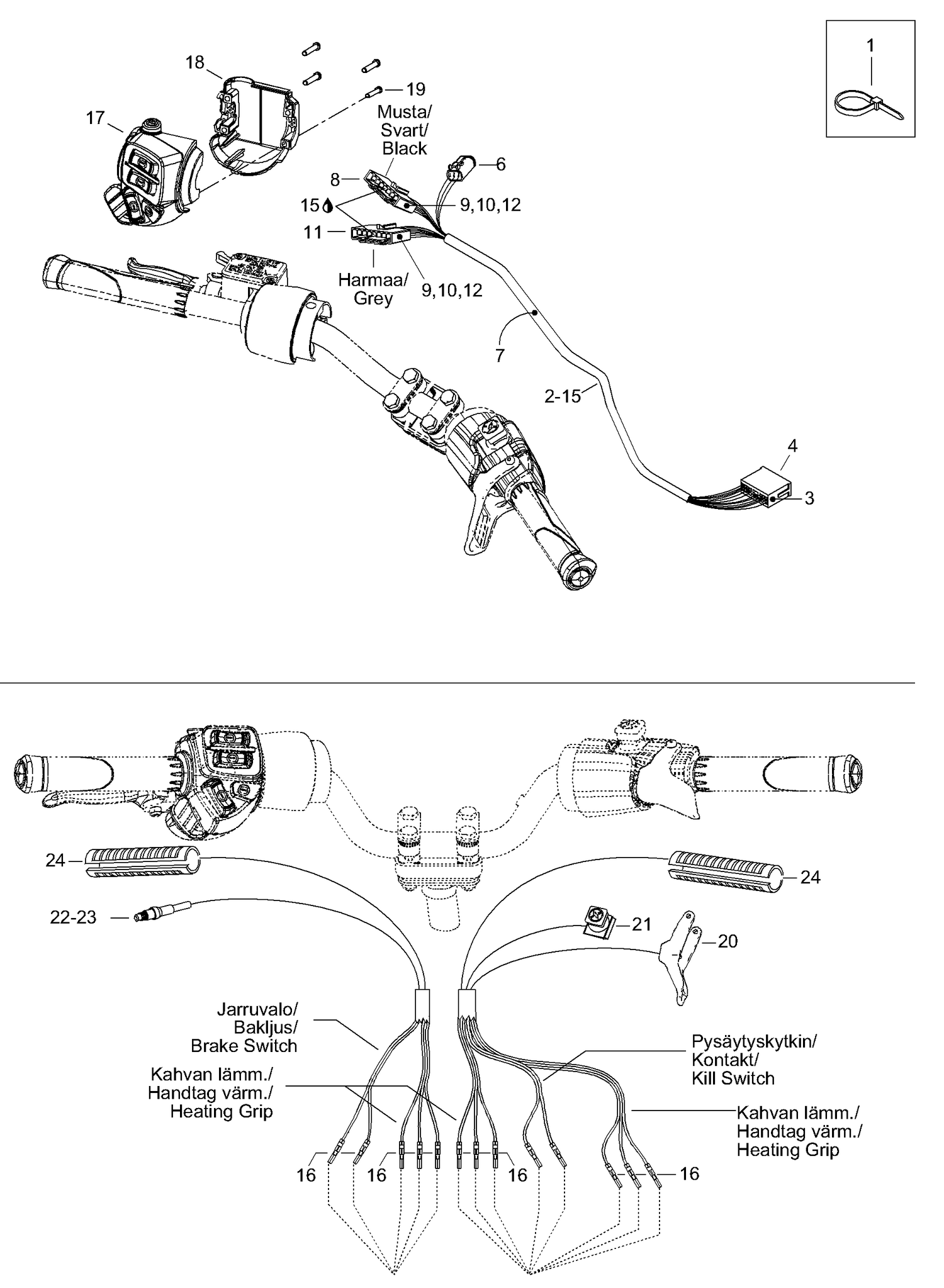

| Ref | Part Number | Description |
|---|
| 1 |
27010 |
Tie rap 98 mm |
| 1 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 3 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 4 |
42621 |
Male terminal housing (13 |
| 5 |
515175231 |
Female Terminal |
| 6 |
710000568 |
Male terminal housing |
| 7 |
39015 |
Tubing 12 mm |
| 8 |
515175807 |
FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 9 |
515175808 |
FEMALE TERMINAL - Call your local BRP dealership |
| 10 |
515175809 |
FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 11 |
515175810 |
FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 12 |
515175941 |
Female terminal |
| 13 |
515175819 |
Female terminal housing ( |
| 14 |
515175830 |
Low temperature tubing 1/2 |
| 15 |
293550004 |
Dielectric grease, 150 g |
| 16 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 17 |
515176015 |
LH SWITCH HOUSING - Call your local BRP dealership |
| 18 |
515175926 |
Housing switch plate |
| 19 |
40903 |
Screw 3,5 x 25 |
| 20 |
512060484 |
Throttle Handle Ass'y This part replaces 512059766. |
| 21 |
515175410 |
Kill switch |
| 23 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
