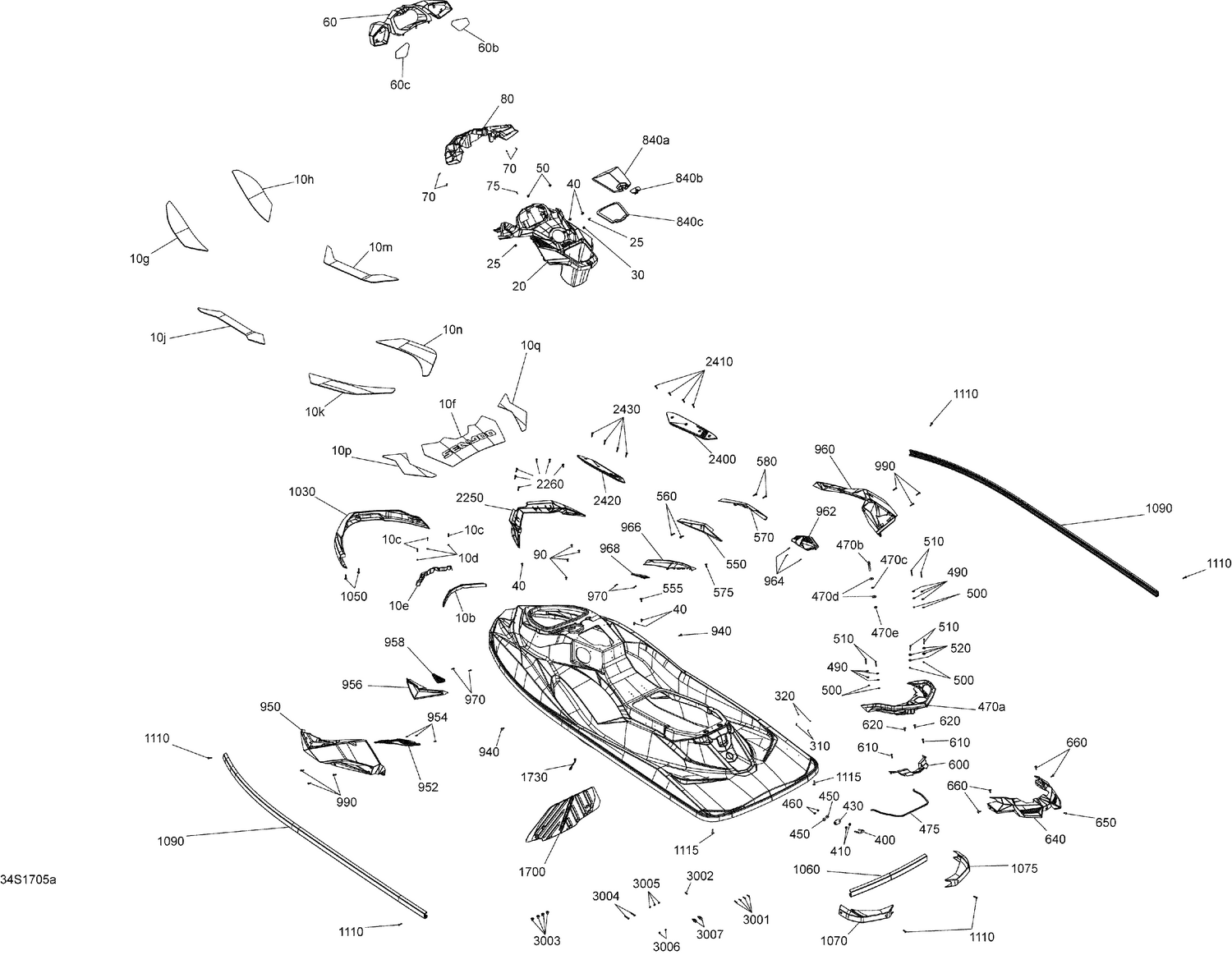

| Ref | Part Number | Description |
|---|
| 10b |
291003897 |
Deck Nose |
| 10c |
241142560 |
Hex. Flange Screw K40 X 25 |
| 10d |
234042600 |
Flat Washer 4 mm, Stainless |
| 10e |
291003704 |
Bumper Support |
| 10f |
291003586 |
Platform Carpet |
| 10g |
291003587 |
Front Carpet LH |
| 10h |
291003588 |
Front Carpet RH |
| 10j |
291003589 |
Center Front Carpet LH |
| 10k |
291003577 |
Rear Center Carpet LH |
| 10m |
291003591 |
Center Front Carpet RH |
| 10n |
291003578 |
Rear Center Carpet RH |
| 10p |
291003593 |
Rear Carpet LH |
| 10q |
291003594 |
Rear Carpet RH |
| 20 |
295501182 |
Kit Console This part replaces 291004282. |
| 25 |
414644300 |
Black, Dart |
| 30 |
293830005 |
Rubber Bumper |
| 40 |
293150123 |
Pop Rivet 3/16" |
| 50 |
293150186 |
Pop Rivet 3/16 |
| 60b |
291003090 |
Mirror RH, With Double-Face Tape |
| 60c |
291003091 |
Mirror LH, With Double-Face Tape |
| 80 |
291004271 |
Deep Black, Mirror Support |
| 310 |
293150016 |
Rivet 1/8" |
| 320 |
293000014 |
Black, Snap Cap |
| 400 |
292000933 |
U-Clamp |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 430 |
291001386 |
Black, Finition Plate |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 470b |
291003877 |
Stud Seat |
| 470c |
232100600 |
Hex. Jam Nut M10 |
| 470d |
234002600 |
Flat Washer 10 mm, Stainless |
| 470e |
232501200 |
Elastic Stop Nut M10, Brass |
| 475 |
292002523 |
Gasket This part replaces 293250289. |
| 490 |
234062600 |
Flat Washer M6, Stainless |
| 500 |
232561200 |
Brass Elastic Stop Nut M6 |
| 510 |
207164060 |
Hex. Screw M6 X 40 |
| 520 |
250200022 |
Flat Washer M6.6 X 22 |
| 555 |
293730006 |
Black, Dart |
| 560 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 575 |
293730006 |
Black, Dart |
| 580 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 600 |
291003372 |
Deep Black, Vent Cover |
| 610 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 620 |
293730006 |
Black, Dart |
| 640 |
291004365 |
Deep Black, Cosmetic Rear |
| 650 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 660 |
293730006 |
Black, Dart |
| 840a |
291004579 |
Deep Black, Glove Box Door |
| 840b |
264000164 |
Black, Latch This part replaces 264000091. |
| 840c |
293250265 |
Urethane Seal |
| 940 |
293730006 |
Black, Dart |
| 952 |
291003348 |
Black, LH Side Grille |
| 954 |
250000287 |
Flange Torx Screw K40 X 16 |
| 958 |
291003343 |
Deep Black, LH Front Hood Grille |
| 962 |
291003349 |
Deep Black, RH Side Grille |
| 964 |
250000287 |
Flange Torx Screw K40 X 16 |
| 968 |
291003344 |
Deep Black, RH Front Hood Grill |
| 970 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 990 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 1030 |
291004277 |
Front Bumper |
| 1050 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 1060 |
291004451 |
Black, Side Bumper |
| 1070 |
291004278 |
Black, Corner Bumper |
| 1075 |
291004279 |
Black, Corner Bumper |
| 1090 |
291004451 |
Black, Side Bumper |
| 1110 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 1115 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 1700 |
291004572 |
Divider Ass'y |
| 1730 |
269502111 |
Holding Strap |
| 2250 |
291004367 |
Deflector |
| 2260 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 2400 |
291004317 |
Footrest |
| 2410 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000710. |
| 2420 |
291004319 |
Footrest |
| 2430 |
250001194 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000710. |
