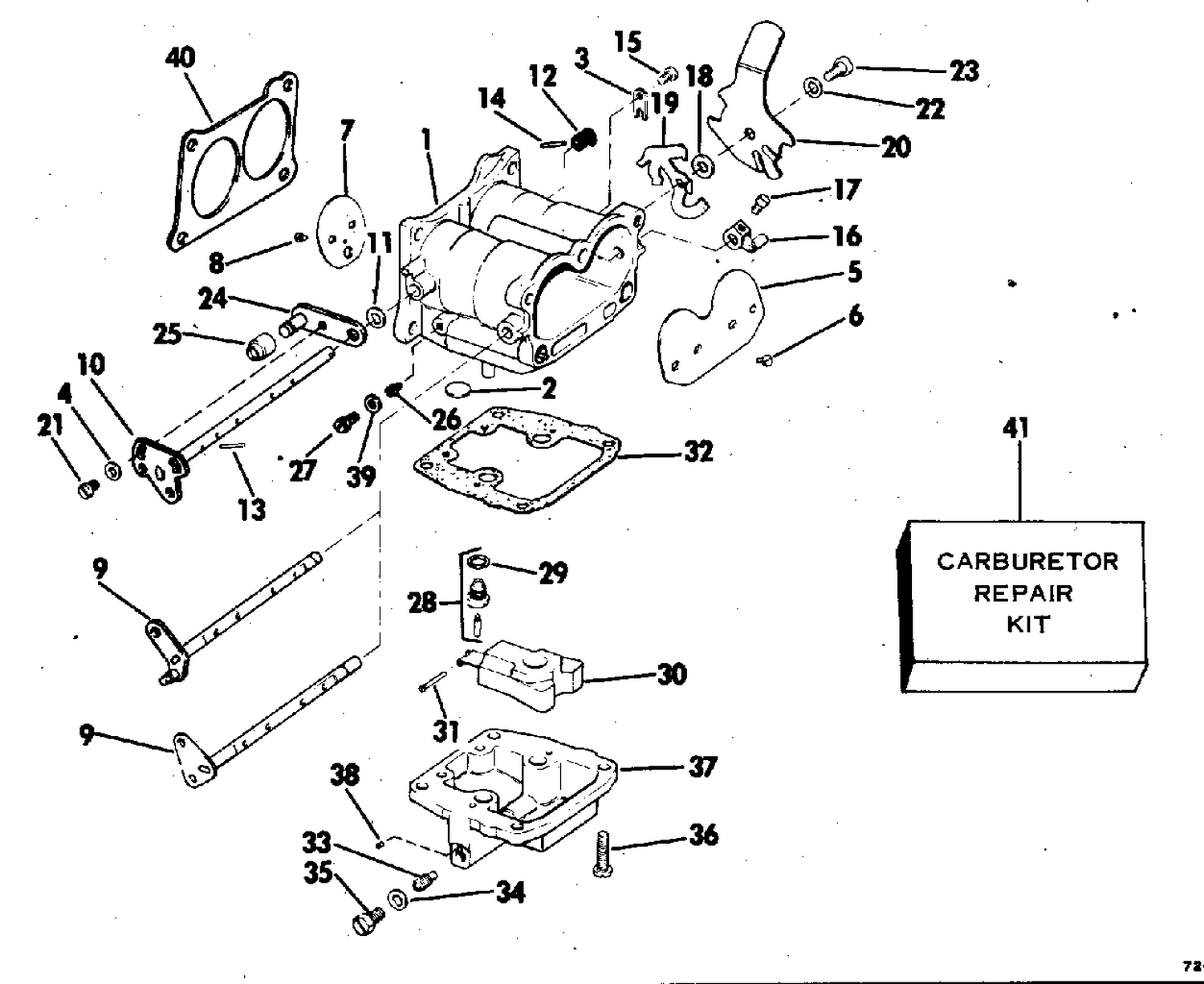

| Ref | Part Number | Description |
|---|
| 1 |
0388108 |
BODY ASSY.,Upper |
| 1 |
0388109 |
BODY ASSY.,Middle |
| 1 |
0388110 |
BODY ASSY.,Lower |
| 1 |
0388165 |
BODY ASSY.,Upper |
| 1 |
0388166 |
BODY ASSY.,Middle |
| 1 |
0388167 |
BODY ASSY.,Lower |
| 3 |
0314906 |
CLIP |
| 7 |
0322944 |
THROTTLE VALVE |
| 9 |
0387300 |
CHOKE SHAFT |
| 9 |
0387302 |
CHOKE SHAFT |
| 9 |
0388410 |
LEVER & SHAFT |
| 10 |
0387301 |
THROTTLE SHAFT |
| 20 |
0321728 |
LEVER AND HANDLE |
| 21 |
0303212 |
VIS, collier & capot |
| 22 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 27 |
0317501 |
SCREW PLUG, Orifice |
| 30 |
0383437 |
FLOAT ASSEMBLY |
| 32 |
0338884 |
GASKET, Float bowl This part replaces 0314884. |
| 33 |
0320661 |
ORFICE PLUG (61C) |
| 33 |
0321731 |
ORIFICE PLUG |
| 35 |
0307832 |
PLUG, Screw |
| 36 |
0307466 |
SCRES, Bowl to body |
| 37 |
0384913 |
FLOAT CHAMBER ASSY |
| 40 |
0315052 |
GASKET CARB. TO MANIFOLD |
| 0389255 |
0390020 |
CARB ASSY., Upper This part replaces 0389255. |
| 0389256 |
0389256 |
CARB ASSY.,Middle |
| 0389257 |
0389257 |
CARB ASSY.,Lower |
| 0389258 |
0389258 |
CARB ASSY.,Upper |
| 0389259 |
0389259 |
CARB ASSY.,Middle |
| 0389260 |
0389260 |
CARB ASSY.,Lower |
