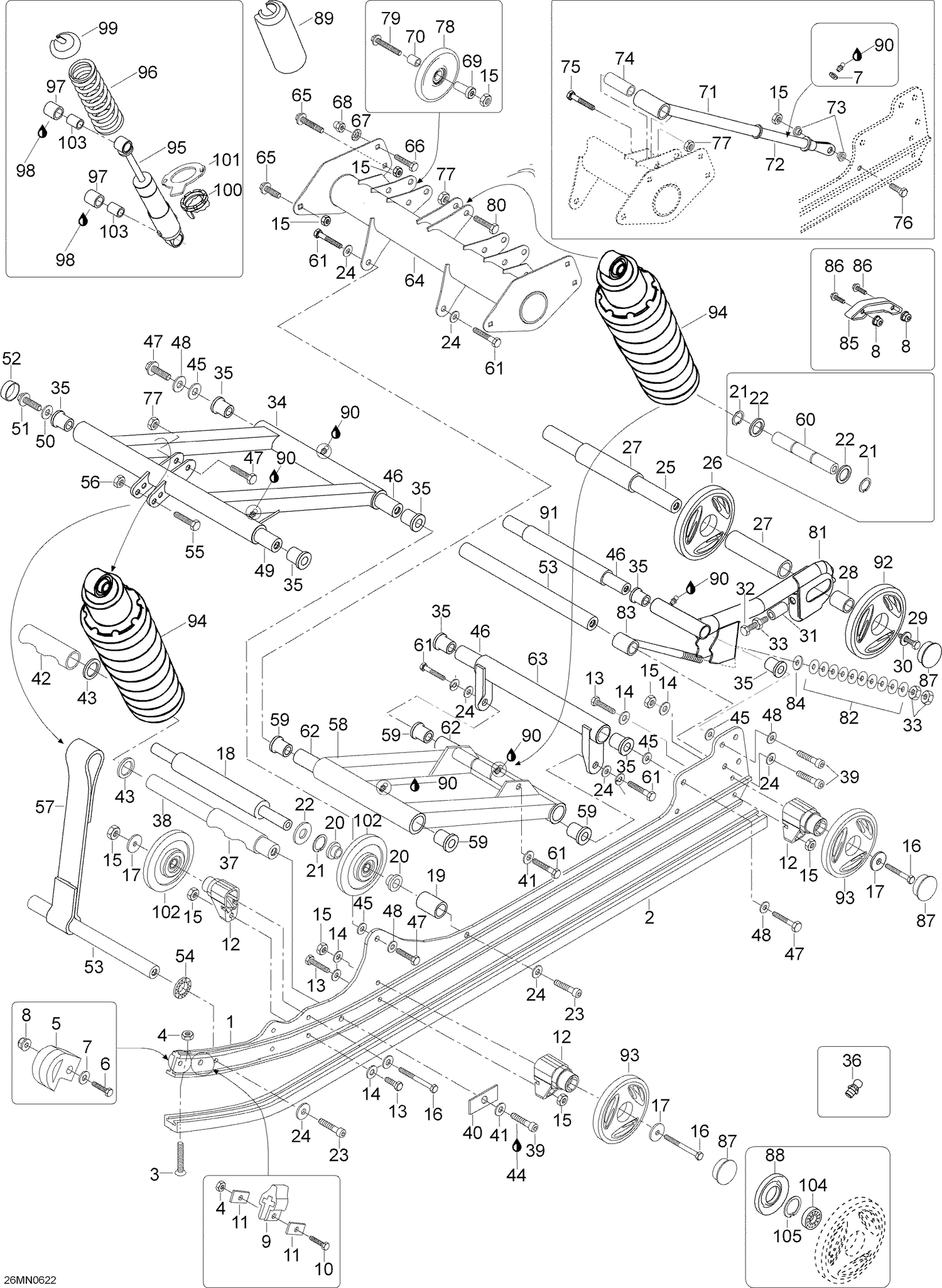

| Ref | Part Number | Description |
|---|
| 1 |
5247224 |
Runner |
| 2 |
605355362 |
Slider shoe This part replaces 5347724. |
| 3 |
40059 |
Socket head screw M6 x 60 |
| 4 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 5 |
605348954 |
Runner protector |
| 6 |
40031 |
Hex. screw M6 x 25 |
| 7 |
20003 |
Washer A6,4 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 9 |
5448216 |
STOPPER-RUBBER - Call your local BRP dealership |
| 10 |
40032 |
Hex. screw M6 x 30 |
| 11 |
548470 |
Support plate |
| 12 |
605450182 |
SUPPORT - Call your local BRP dealership |
| 13 |
40037 |
Hex. screw M8 x 25 |
| 14 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 15 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 16 |
40089 |
M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 17 |
503183100 |
Washer |
| 18 |
5347950 |
Shaft, supportwheel - Call your local BRP dealership |
| 19 |
5447951 |
Sleeve - Call your local BRP dealership |
| 20 |
503189534 |
Insert |
| 21 |
293370056 |
Circlip 20X1.75 DIN471 This part replaces 31007. |
| 22 |
31091 |
Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership |
| 23 |
40134 |
Screw Socket HD.DIN 912 |
| 24 |
20105 |
Washer, hardened 10mm |
| 25 |
5343284 |
SHAFT - Call your local BRP dealership |
| 26 |
503189478 |
Support wheel 165mm |
| 27 |
5444096 |
Sleeve |
| 28 |
5444098 |
Spacer - Call your local BRP dealership |
| 29 |
40050 |
Hex. screw M10 x 35 |
| 30 |
503183300 |
Washer, hardened 10mm |
| 31 |
605633002 |
Nut This part replaces 605452332. |
| 32 |
40239 |
Hex. screw M10 x 100 |
| 33 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 34 |
5147672 |
Front arm - Call your local BRP dealership |
| 35 |
31024 |
Cushion |
| 36 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 37 |
5347718 |
Limiter - Call your local BRP dealership |
| 38 |
5347726 |
Axle |
| 39 |
40134 |
Screw Socket HD.DIN 912 This part replaces 40536. |
| 40 |
5447940 |
Support plate |
| 41 |
20068 |
Lock washer |
| 42 |
5346649 |
Sleeve - Call your local BRP dealership |
| 43 |
31013 |
Shim Ring |
| 44 |
293800005 |
Loctite 271, 10 ml |
| 45 |
20116 |
Washer |
| 46 |
5347713 |
Axle |
| 47 |
40016 |
Hex. screw M10 x 45 |
| 48 |
512056700 |
Lock washer |
| 49 |
5347719 |
Upper Shaft This part replaces 605348606. |
| 50 |
20090 |
Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership |
| 51 |
40243 |
Hex. screw M12 x 60 |
| 52 |
5448025 |
Cap |
| 53 |
5347717 |
Axle |
| 54 |
4181158 |
Snap ring |
| 55 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 56 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 57 |
5447961 |
Limiter strap - Call your local BRP dealership |
| 58 |
605349313 |
Rear arm |
| 59 |
31027 |
Cushion |
| 60 |
605451897 |
REARSHOCK SHAFT - Call your local BRP dealership |
| 61 |
40014 |
Hex. screw M10 x 40 |
| 62 |
5346865 |
SHAFT - Call your local BRP dealership |
| 63 |
5347668 |
Rear swing - Call your local BRP dealership |
| 64 |
605249988 |
UPPER ARM - Call your local BRP dealership |
| 65 |
40058 |
Locking screw M8 x 20 |
| 66 |
40056 |
Locking screw M8 x 16 |
| 67 |
20072 |
Lock washer |
| 68 |
33044 |
Cap Nut M8 DIN1587-6 Zne(1=10pcs) - Call your local BRP dealership |
| 69 |
605450372 |
FLANGED SLEEVE - Call your local BRP dealership |
| 70 |
605450373 |
SLEEVE - Call your local BRP dealership |
| 71 |
5347851 |
Poker shaft |
| 73 |
5447853 |
SLIDE BEARING - Call your local BRP dealership |
| 74 |
5447848 |
Bearing sleeve - Call your local BRP dealership |
| 75 |
40011 |
Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership |
| 76 |
207103544 |
Hex. screw M10 x 35 |
| 77 |
33012 |
Elastic stop nut M10 |
| 78 |
46027 |
Idler Wheel - Call your local BRP dealership |
| 79 |
40088 |
Hex. screw M8 x 70 |
| 80 |
40017 |
Hex. screw M10 x 50 |
| 81 |
605251779 |
EXTENSION SWING LH - Call your local BRP dealership |
| 81 |
605251780 |
EXTENSION SWING RH - Call your local BRP dealership |
| 82 |
25004 |
Cup Spring |
| 83 |
5447373 |
Eye bolt adjuster |
| 84 |
234002410 |
Flat Washer 10 mm This part replaces 20011. |
| 85 |
503192731 |
SLIDING PAD - Call your local BRP dealership This part replaces 5343191. |
| 86 |
207764044 |
BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064. |
| 87 |
570063600 |
Protector |
| 88 |
572089000 |
LABYRINTH SEAL - Call your local BRP dealership |
| 89 |
5346754 |
Shock protector |
| 90 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 91 |
605448429 |
Sleeve |
| 92 |
503190856 |
Idler wheel 165mm/Full Moon |
| 93 |
503190797 |
Idler wheel 135mm/Full Moon |
| 95 |
23152 |
Shock, rear arm |
| 95 |
23161 |
Shock, fron arm |
| 96 |
230079 |
Spring, rear arm |
| 96 |
25059 |
SPRING CENTER - Call your local BRP dealership |
| 97 |
31094 |
Cushion |
| 98 |
320006 |
Glue. Loctite |
| 99 |
230076 |
Spring seat |
| 100 |
230078 |
Adjusting Cam |
| 101 |
605348748 |
ARM ADJUSTING ASS'Y - Call your local BRP dealership |
| 102 |
503191029 |
Support wheel 135/black |
| 103 |
5446652 |
Bushing |
| 104 |
293350115 |
Ball Bearing This part replaces 405404500. |
