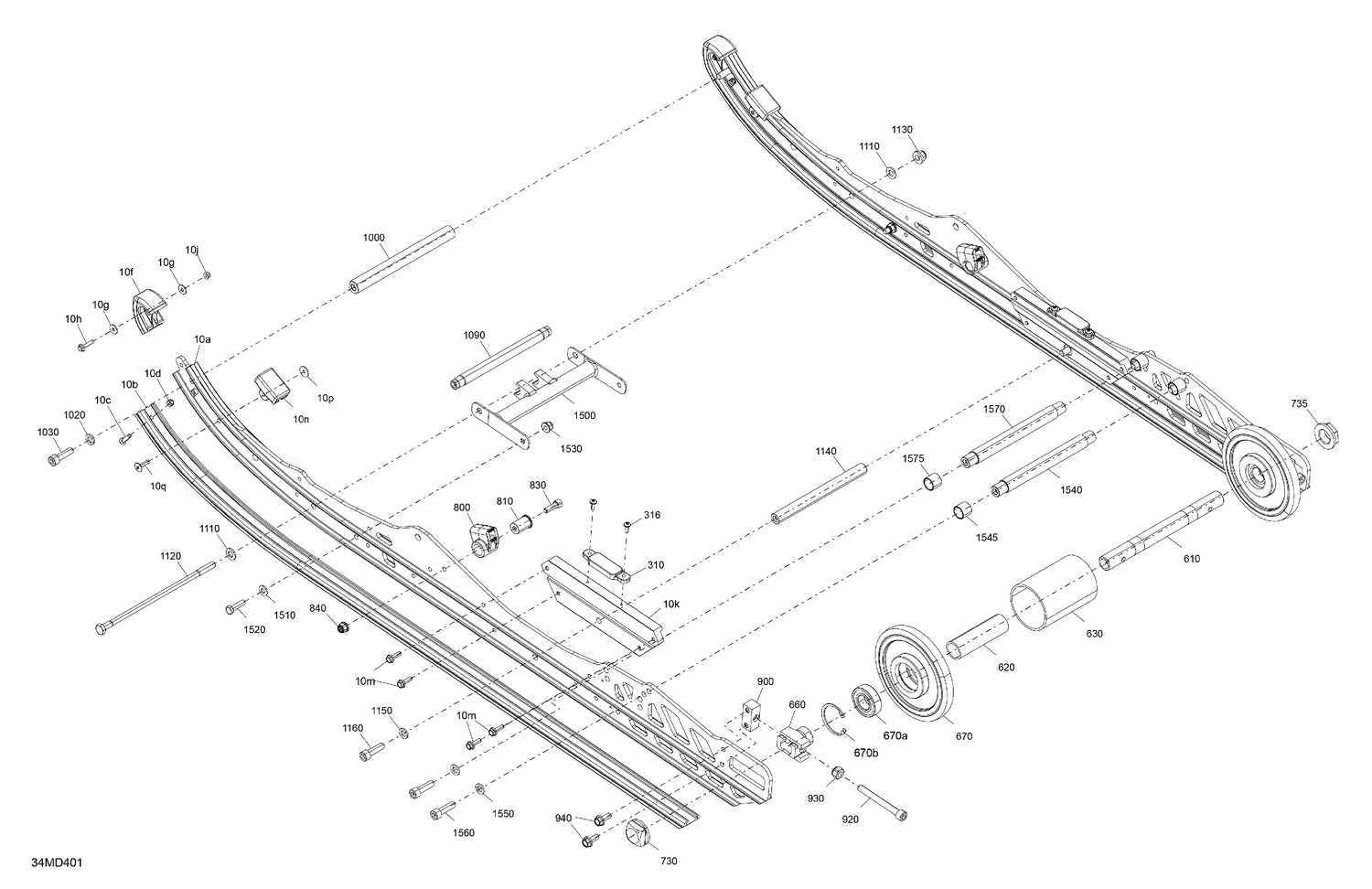

05- Suspension - Rear - Lower Section
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 503197317 | Neo Yellow, Rail Suspension 137 |
| 10b | 503191499 | Black, Slider 146 |
| 10c | 208562531 | Phillips Screw M6 X 25 |
| 10d | 232561434 | Elastic Stop Nut M6 |
| 10f | 503196872 | Rail Protector |
| 10g | 250200140 | Washer |
| 10h | 207652544 | Hex. Flange Screw M5 X 25 |
| 10j | 233251434 | Flange Elastic Nut M5 |
| 10k | 503194559 | Rail Reinforcement |
| 10m | 207662056 | Hex. Flange Screw M6 x 20 |
| 10n | 503190576 | Rubber Stopper |
| 10p | 503191273 | Washer |
| 10q | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 310 | 503190263 | Rail Stopper |
| 316 | 250000742 | Torx Screw M5 X 14 |
| 610 | 503193692 | Rear Axle |
| 620 | 503156000 | Center Spacer |
| 630 | 503196948 | Socket |
| 660 | 503193694 | Spacer |
| 670a | 293350153 | Ball Bearing |
| 670b | 415129371 | Retaining Ring |
| 730 | 503193695 | Nut |
| 735 | 503193696 | Nut |
| 800 | 861805547 | Spring Support Kit |
| 810 | 503196210 | Bushing |
| 830 | 205082554 | Socket Screw M8 X 25 |
| 840 | 233281466 | Elastic Flange Nut M8 |
| 900 | 503193697 | Tensioner |
| 920 | 250001010 | Screw Socket HD.DIN.912 |
| 930 | 233601466 | Elastic Locking Nut M10 |
| 940 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 1000 | 503192715 | Limit Axle |
| 1020 | 503192496 | Washer |
| 1030 | 205503554 | Socket Head Screw M10 X 35 |
| 1090 | 503193435 | Pivot Axle |
| 1110 | 250200143 | Flat Washer |
| 1120 | 503193227 | Bolt M10 X 251MM |
| 1130 | 233201466 | Flange Elastic Nut M10 |
| 1140 | 503196885 | Pin |
| 1150 | 503192496 | Washer |
| 1160 | 205503554 | Socket Head Screw M10 X 35 |
| 1500 | 503196887 | Central Axle Support |
| 1510 | 503192494 | Washer |
| 1520 | 207183054 | Hex. Cap Screw M8 X 30 |
| 1530 | 233281466 | Elastic Flange Nut M8 |
| 1540 | 503195790 | Limit Axle |
| 1545 | 503195791 | Skid Bushing |
| 1550 | 503192496 | Washer |
| 1560 | 205503554 | Socket Head Screw M10 X 35 |
| 1570 | 503195790 | Limit Axle |
