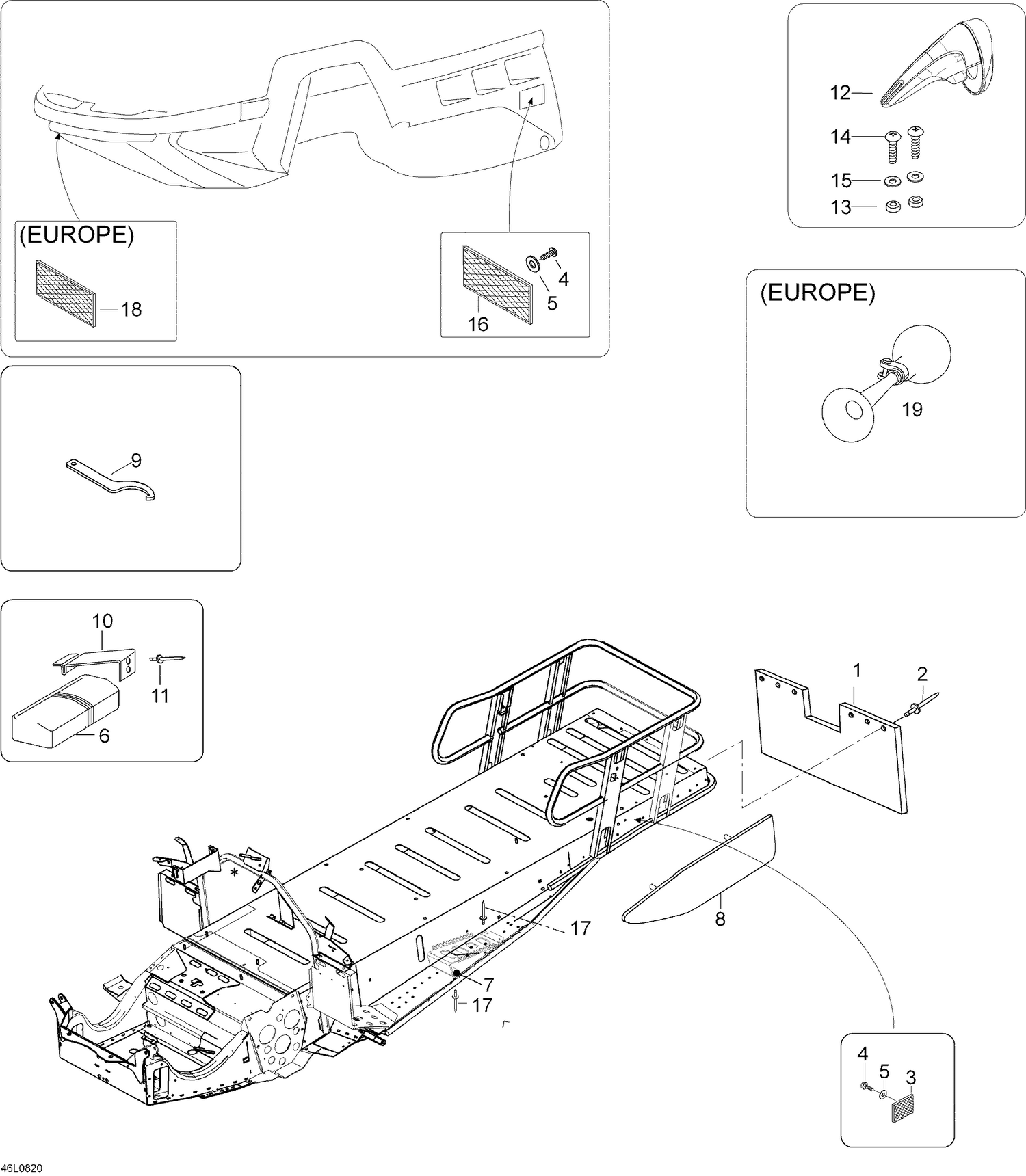

| Ref | Part Number | Description |
|---|
| 1 |
520000857 |
SNOW GUARD - Call your local BRP dealership |
| 3 |
21121 |
REFLECTOR (YELLOW) - Call your local BRP dealership |
| 4 |
40070 |
Slot sc. M5 x 10DIN7985m4.6Zne(1=10pcs) - Call your local BRP dealership |
| 5 |
20018 |
Washer A5,3 |
| 6 |
605350525 |
TOOL KIT - Call your local BRP dealership |
| 7 |
605354068 |
FOOTREST - Call your local BRP dealership |
| 8 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 8 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 9 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 10 |
5346728 |
Spring plate |
| 11 |
36108 |
Rivet |
| 12 |
517303955 |
R.H./LH Mirror |
| 13 |
250200025 |
Washer M5 |
| 14 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 15 |
250200024 |
Rubber Washer 5 mm |
| 16 |
414510200 |
REFLECTOR, AMBER - Call your local BRP dealership |
| 17 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
